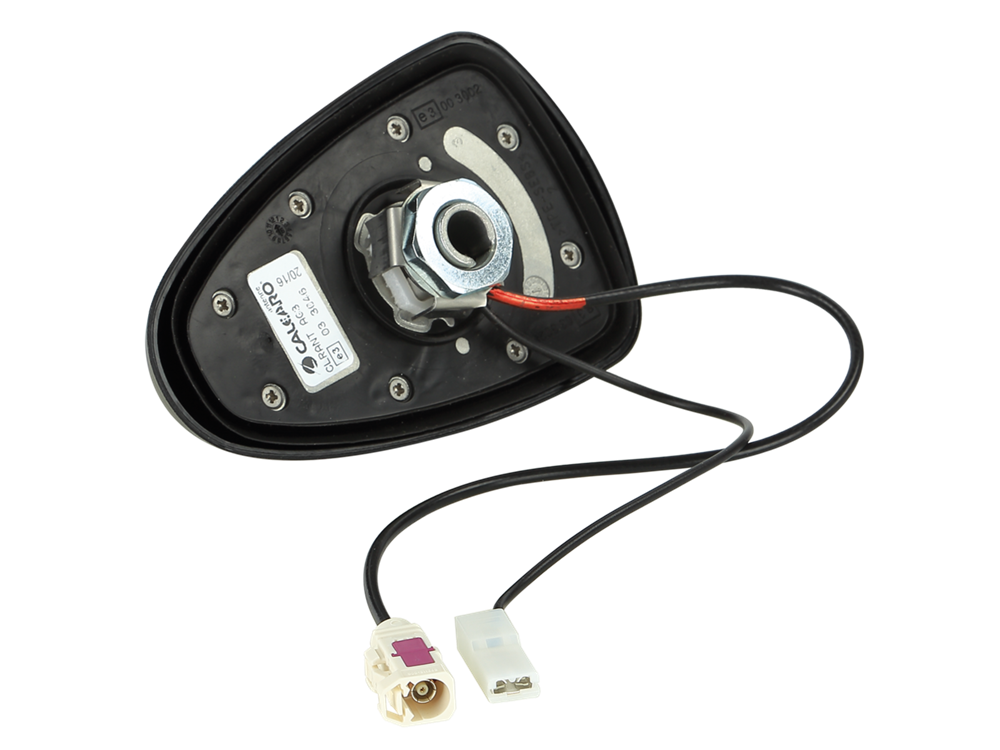

CALEARO SHARK 2 CUSTOM FCA AM-FM FAKRA HUN

Roof antenna AM/FM

Style Shark II

Reception mode:
AM/FM

Installation:
installation point: roof rear
drill hole round: 19 mm
drill hole square: 15 mm x 15 mm
tightning torque: 6,5 nanometer +/- 20%

Dimensions:
antenna socket: L = 117 mm / W = 76 mm / H = 62 mm

Connections:
AM/FM: Fakra B(f) white RG174 / 250 mm
power supply external: blade terminal 6,3 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz

Power supply:
AM/FM 12V external / 12V phantom power

Power consumption:
AM/FM 50 mA

Impedance:
AM/FM: 50Ohm

Noise figure:
FM: 3,5 db

Polarization:
FM: Linear-Vertikal
