Varenr.: 15-7677890
På lager hos vores leverandør
Technical specification

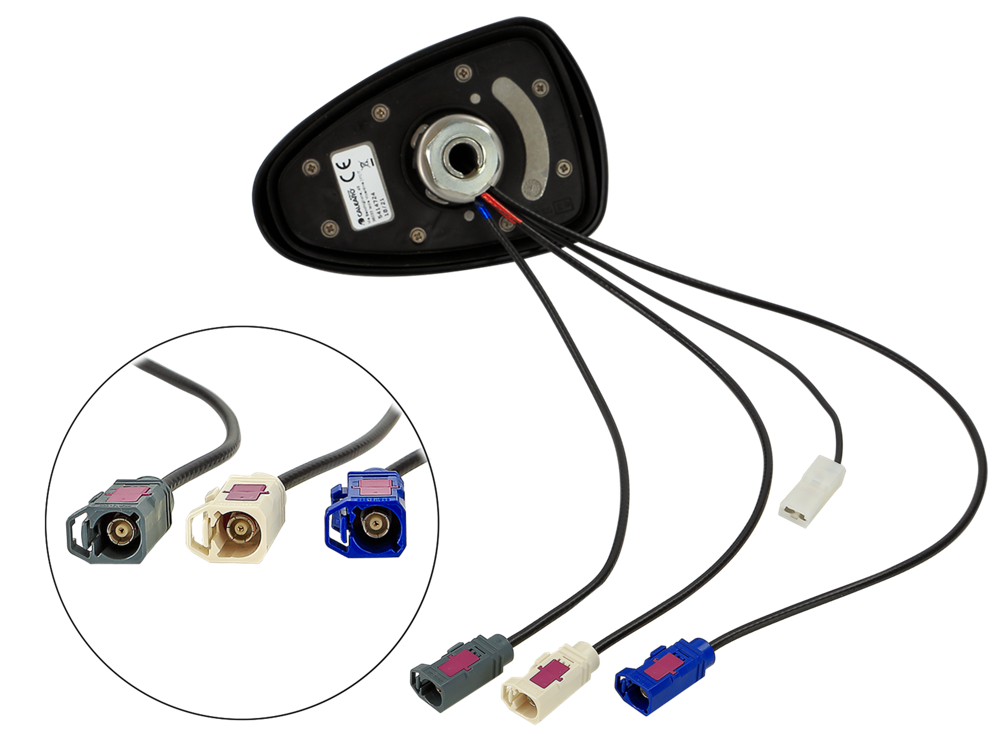

AM/FM connector: FAKRA HUN HVID
GPS connector: FAKRA HUN BLÅ
DAB connector: FAKRA HUN GRÅ
AM/FM power supply: +12 volt dedicated and Phantom
GPS power supply: +3~5 volt Phantom
DAB power supply: +12 volt dedicated and Phantom
AM/FM frequency: 0,15-1,71 MHz / 87,5-108 MHz
GPS frequency: 1575,42±1,023 MHz
DAB frequency: 174-240 MHz (III band)
GPS gain: 27 dBi
DAB gain: 10 dBi
AM/FM consumption: 50 mA max
GPS consumption: 30 mA max
DAB consumption: 50 mA max
Mounting: on roof
Coachwork drilling: square 15x15 mm, R 2 mm - round 19 mm diameter
