Varenr.: 15-7137124
På lager hos vores leverandør

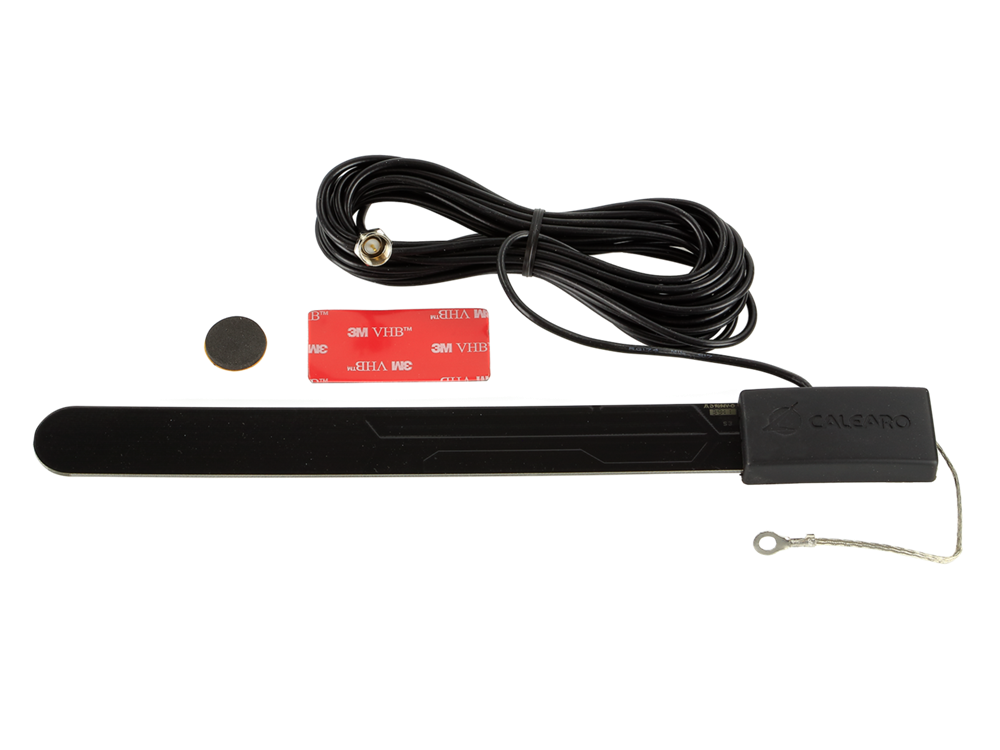

On-glass antenna
Style: black
Suitable for mounting on all vehicles, especially on campers, motorhomes, caravan and commercial vehicles on glass, plastic or fiberglas surfaces.
DVB-T 5V phantom power
Installation point: behind/on every not metallic surface, on-glass
dimensions: L = 28 cm / B = 2,5 cm / H = 1,5 cm

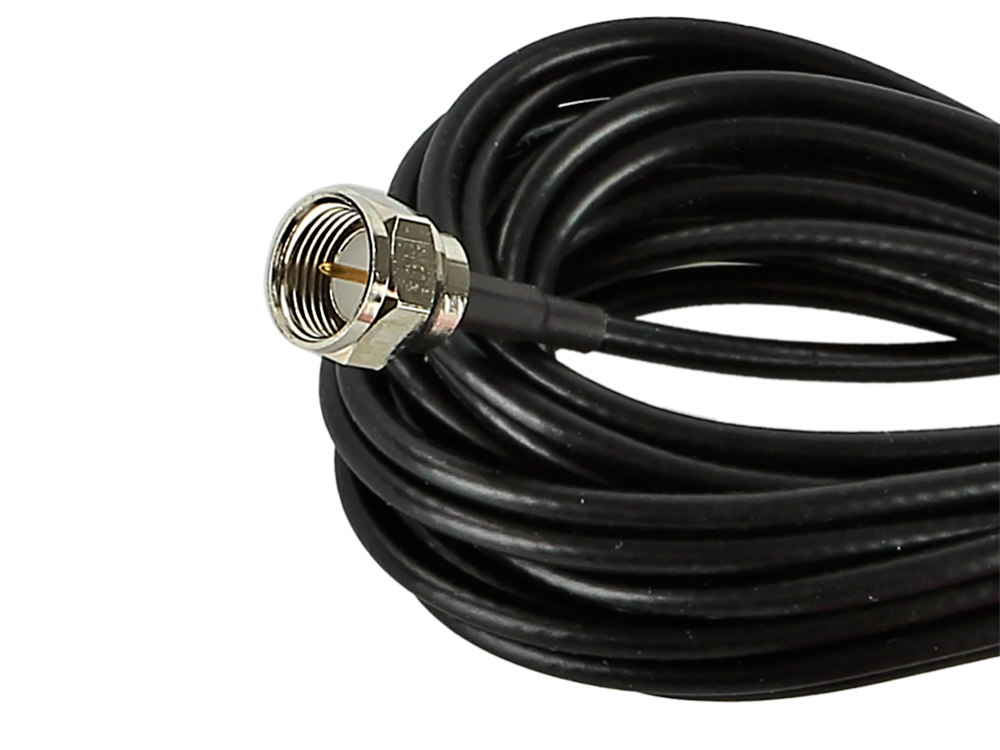

DVB-T connector: F-plug Kabel: L 5 m / Z = 50
Frequency range:
III Band 44 - 68 MHz 174 - 230 MHz MHz
IV/V Band 470 - 790 MHz
benefit (dB):
TV 6 dBi
power input:
35 mA max
Note:
mounting vertical internal adhesive
additional ground strap, install with optimal ground connection
