CALEARO KLÆBE ANTENNE KIT FM/DAB,DAB+ IP67

On-glass antenna / Foil adhesive antenna Kit FM / DAB+

Calearo

Usecase:

FM / DAB+ antenna for mounting in all vehicles / motorhomes / caravans / commercial vehicles on all smooth surfaces such as wood / glass / plastic / GRP internally or externally.

Note:

antenna amplifier protection class: IP 67

antenna amplifier: installation with optimal ground connection
antenna connection cable: do not modify or extend

FM: +12V phantom power required
DAB+: +12V phantom power required

Reception Mode:
FM
DAB+

Installation:
Antenna self-adhesive
Antenna amplifier screw mounting ground
non-metallic bumper external
behind or on non-metallic trim internal
glass adhesive antenna internal

Dimensions:

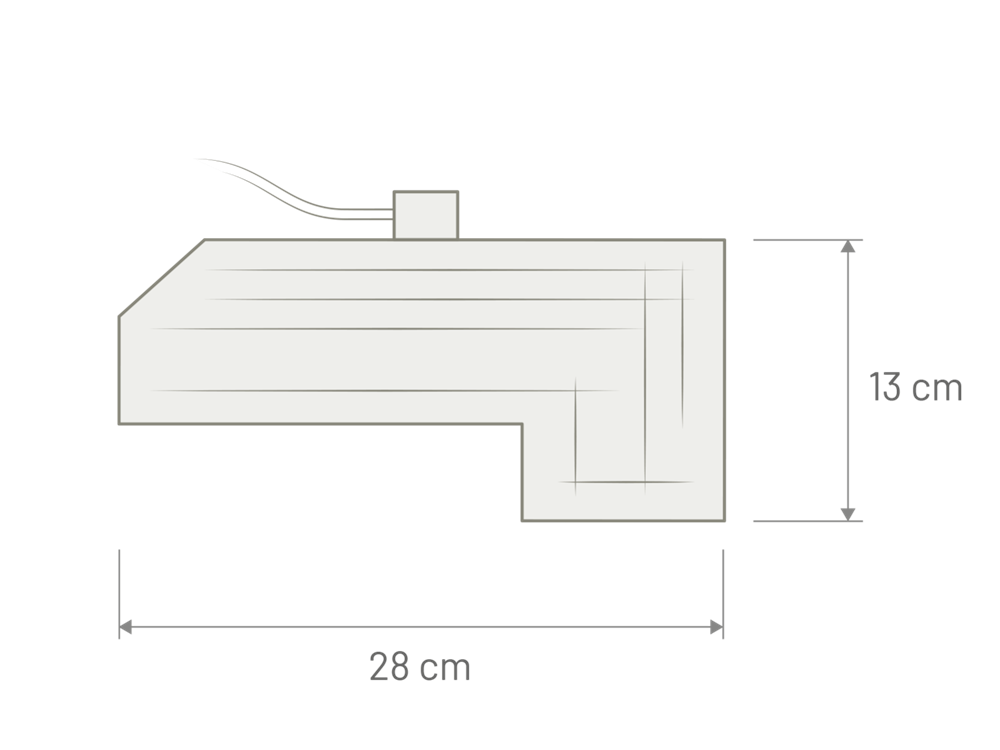

adhesive foil: 13 cm x 28 cm

Connections:
FM: Fakra B(m) weiß
DAB+: Fakra F(m) braun

Frequency range:
FM: 87,5 - 108 MHz
DAB+: 174 MHz - 240 MHz

Benefit (dB):
DAB+: 8dBi

Power supply:
FM: +12V phantom power
DAB+: +12V phantom power

Power consumption:
FM: 60mA max
DAB+: 60mA max

Impedance:
FM: 50 Ohm
DAB+: 50 Ohm

VSWR:
FM: 2,1:1
DAB+: 1,7:1

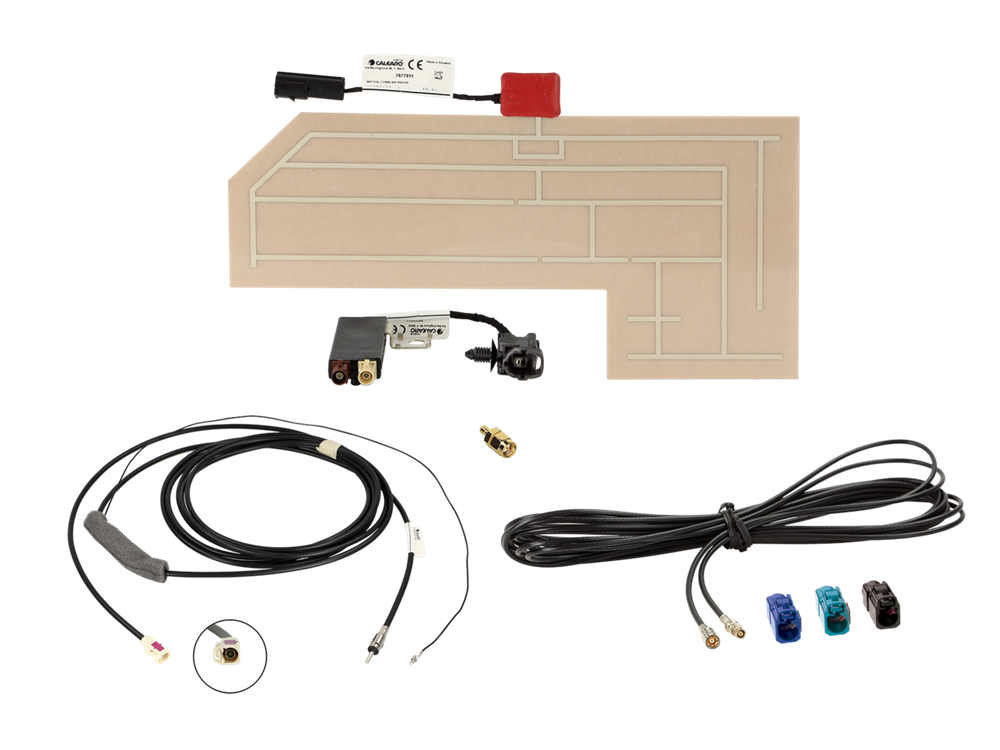

Scope of delivery:
FM:
Antenna cable extension Fakra B(f) > DIN(m) phantom 500cm: 15-7561012
DAB/DAB+:
Antenna cable extension Fakra A/C/Z (f)> SMB(f) 500cm: 15-7581012
Antenna adapter SMB(m) > SMA(m): 1502-29
