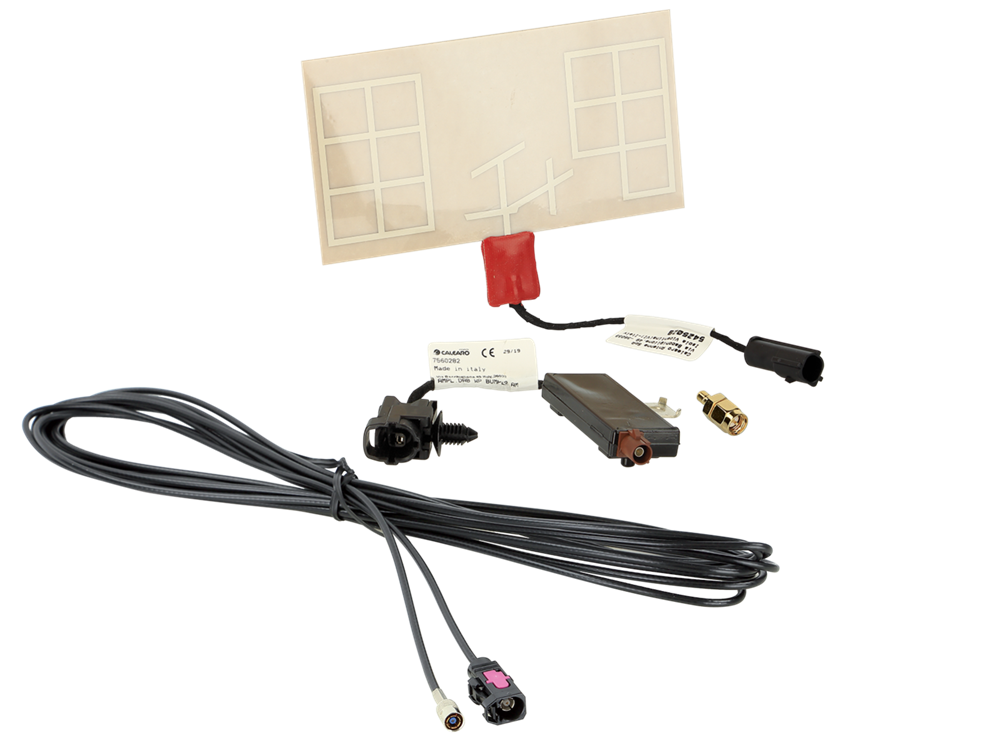

CALEARO KLÆBE ANTENNE DAB,DAB+

On-glass antenna /Foil adhesive antenna DAB+

Suitable for embedded mounting on all vehicles, especially on campers, motorhomes, caravan and commercial vehicles on glas, plastic or fiberglas surfaces.

AM/FM 12V phantom power

Installation point: Bumper, behind/on every not metallic surface, onglas
Dimensions: 15cm x 8cm / 7cm + 18cm cable-connector

DAB/DAB+ connector FAKRA (m) / cable 24cm Z 50O C 101p/Fm

Frequency range:
AM 0,15 -> 1,71MHz
FM 87,15 -> 108MHz
III Band 174 -> 240 MHz
L BAND 1452 -> 1492 MHz

benefit (db)
III Band 10dBi
L BAND 11 1 dBi

Mounting: Internal / External adhesive

Note:

install with optimal ground connection
do not change the cables of the antenna

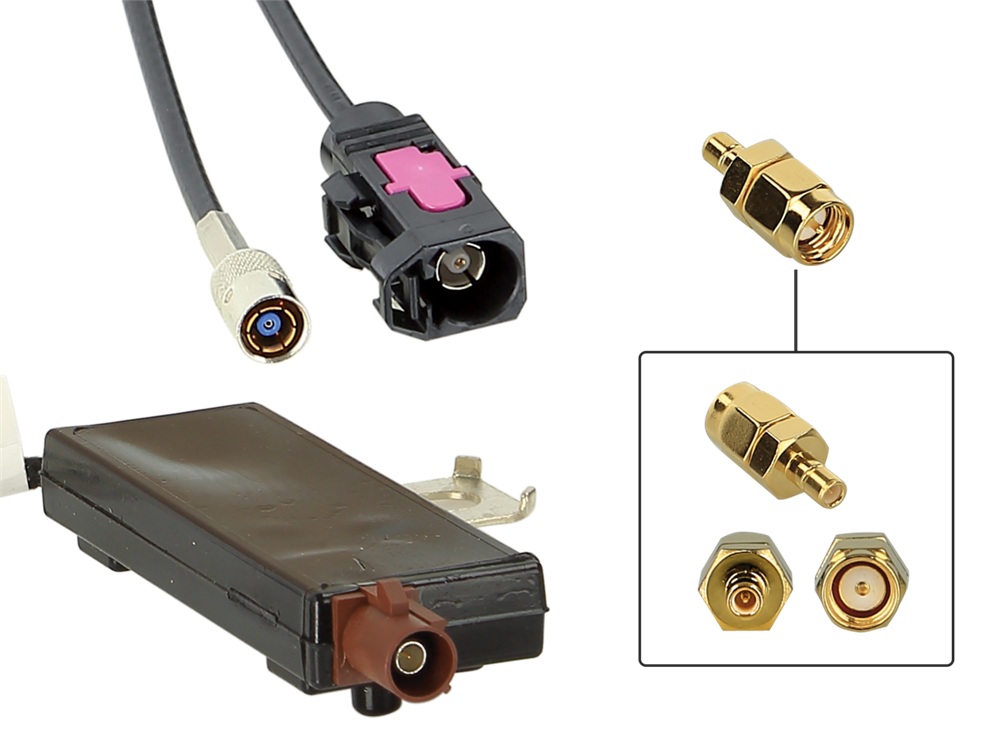

Scope of delivery:

Antenna cable extension Fakra(f) > SMB(f) 500cm: 15-7581141
Antenna adapter SMB(m) > SMA(m): 1502-29
