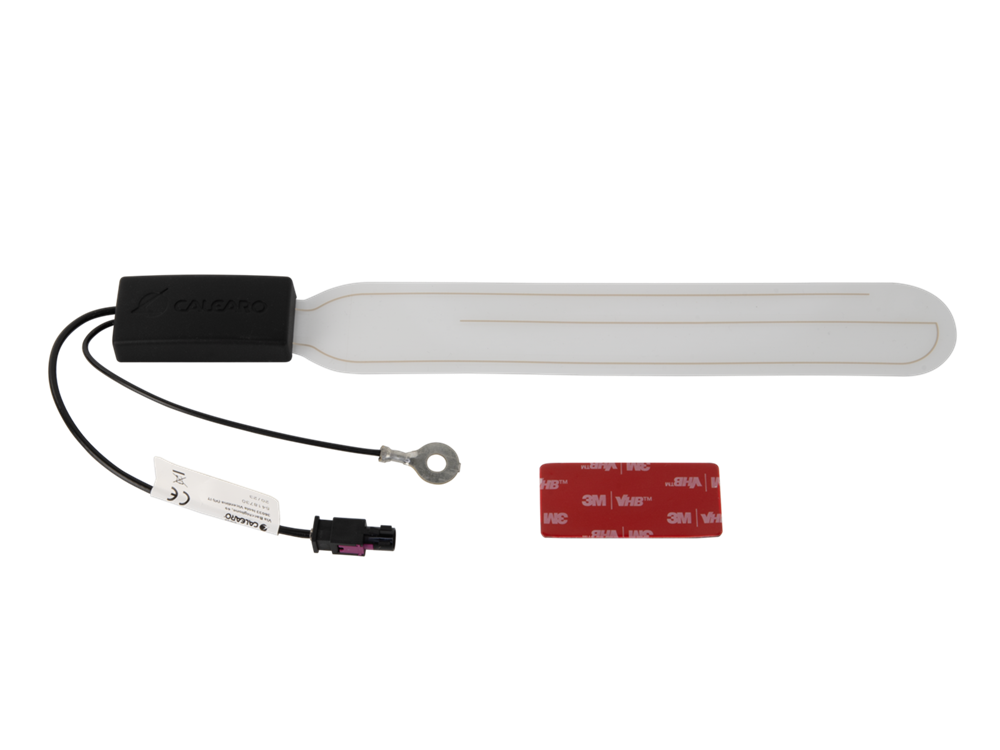

CALEARO DAB+ RUDE ANTENNE AKTIV FAKRA

+12V phantom power
GND ground strap: installation with optimal ground connection

GND ground strap: installation with optimal ground connection
GND ground strap: must not be extendet or shorten

mounting vertical
clean adhesive surface with suitable means to remove dust and grease

In case of reception problems:

activate +12V phantom power in retrofit HU menu
check +12V phantom power

check vehicle for faults due to retrofit LED lighting
check vehicle for faults due to retrofit voltage converter / power supply units / USB charging adapter
check vehicle for faults due to retrofit digital power amplifiers

Use case:

DAB+ antenna for mounting in all vehicles / motorhomes / caravans / commercial vehicles on all smooth surfaces such as wood / glass / plastic / GRP internally

Technical data:

Reception Mode:
DAB+

Installation:
antenna self-adhesive with GND cable

behind or on non-metallic trim internal
glass adhesive antenna internal

recommended:
windscreen vertical A-pillar
distance min. 4 cm from car body

windscreen without heat protection glazing
windscreen without window heating

Dimensions:
28 cm x 2,5 cm x 1,5 mm

Connections:
DAB+: Fakra A(m)
GND ground strap

Cable:
length: 150 cm
cable: RG 174

Frequency range:
DAB+: 174 MHz - 240 MHz

Benefit (dB):
DAB+: 8dBi

Power supply:
DAB+: 12V phantom power

Power consumption:
DAB+: 90 mA max

Impedance:
DAB+: 50 Ohm
