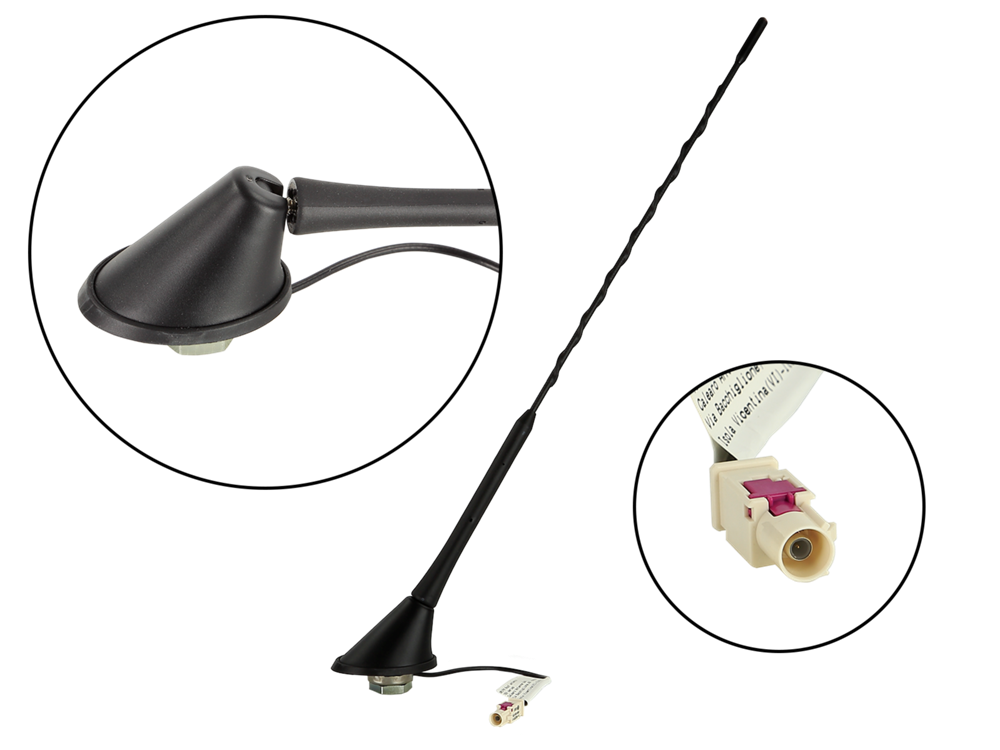

CALEARO 12V TAG ANTENNE PHANTOM POWER 60º ANTI THEFT

Roof antenna AM/FM

Style 16V Anti-theft
Reception Mode:
AM/FM

Installation:
installation point: roof rear
drill hole round: 19 mm
drill hole square: 15 mm x 15 mm
rod length: 405 mm
rod inclination: 60° antitheft
rod type: antinoise
thread: M5

Dimensions:
total height: 440 mm
antenna socket: L = 60 mm / B = 43 mm

Connections:
AM/FM: Fakra B(m) white RG174 / 180 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz
DAB/DAB+: 174 MHz - 240 MHz

Benefit (dB):
DAB/DAB+ III Band 18dB

Power supply:
AM/FM: +12V phantom power

Power consumption:
AM/FM: 60 mA max

VSWR:
FM: <7,5:1
