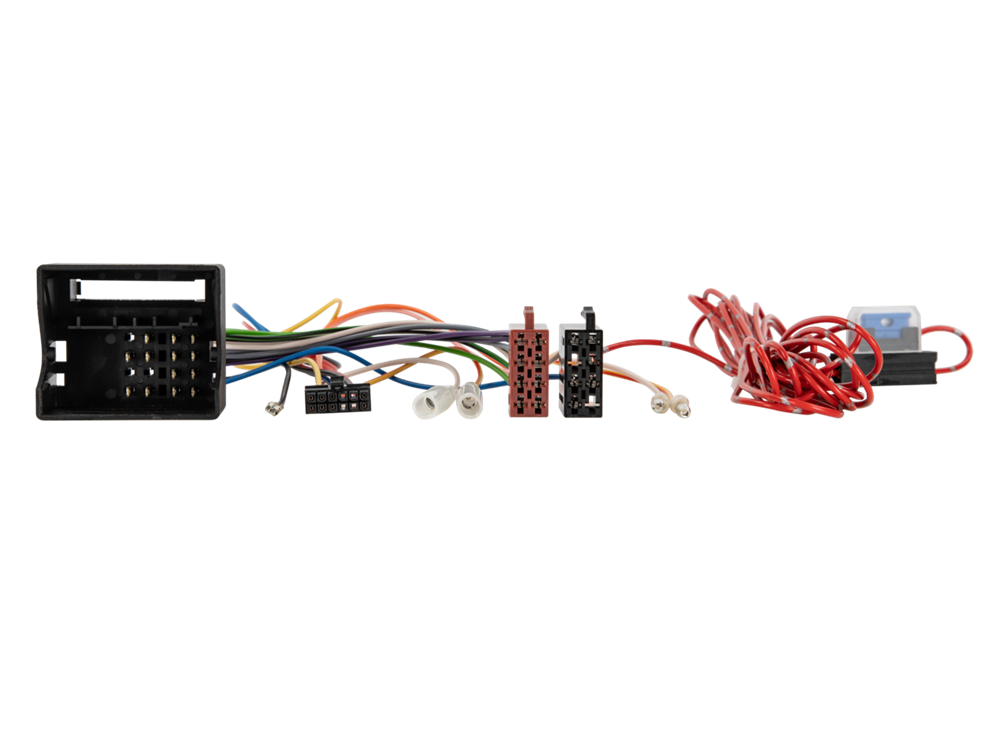

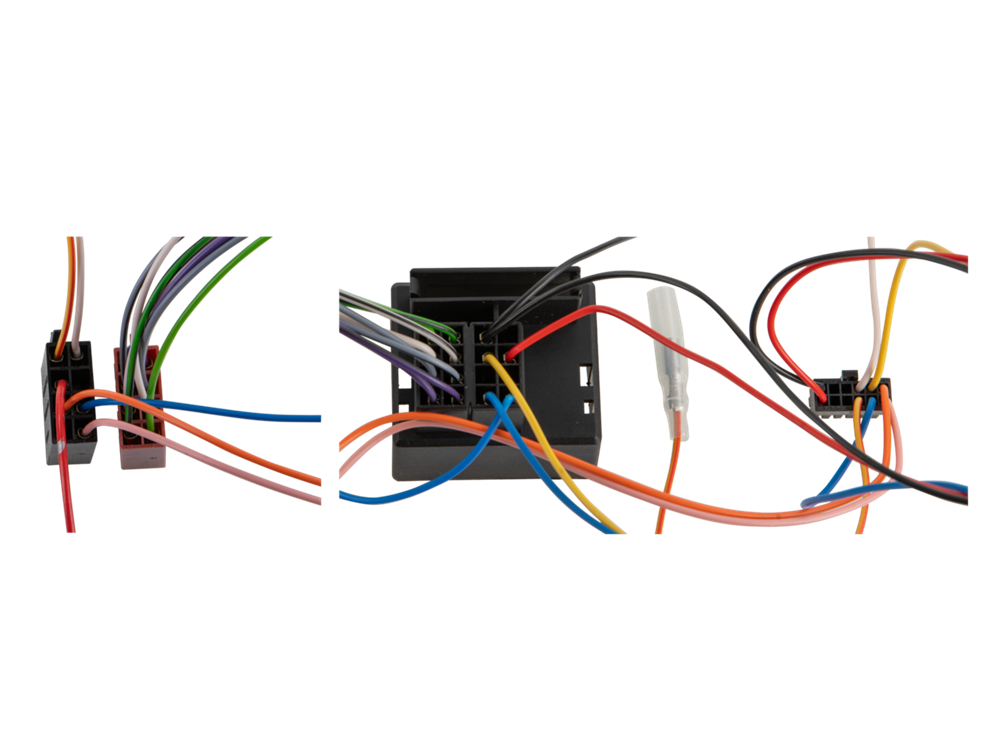

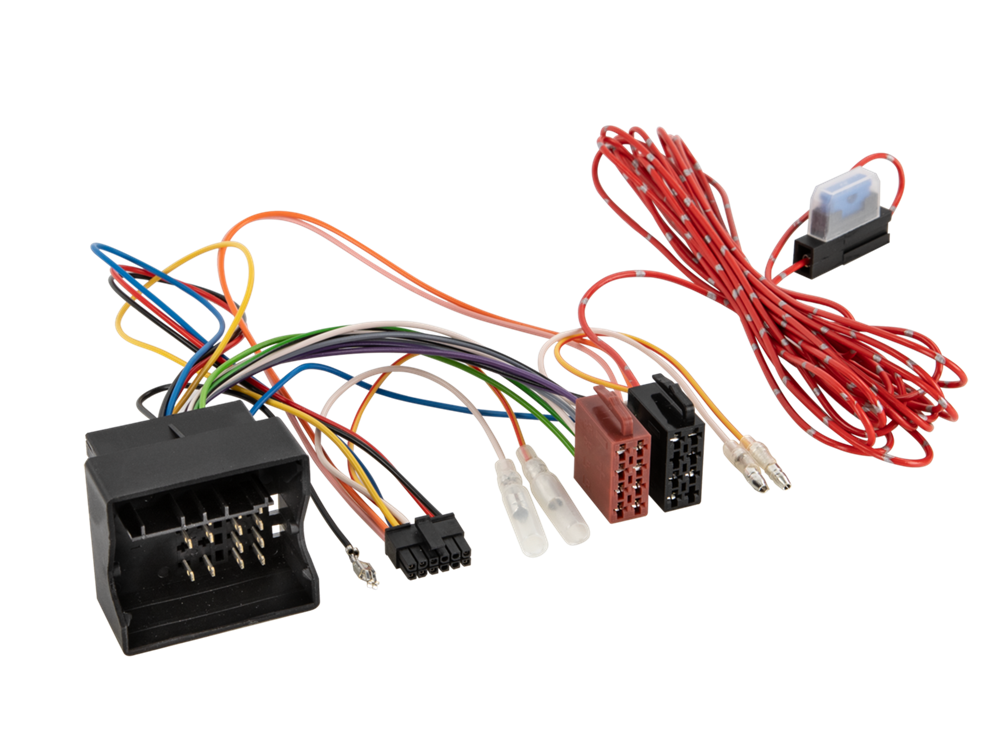

BMW/MINI 40 PIN QUADLOCK CAN-BUS KABEL TIL CX401 OG CAN-UNI 01

Note:

connector: 40 Pin Quadlock BMW
connector: +12V continuous current terminal 30 Battery fused > loose wire red

white: +12V reverse gear signal 1,5A max.
yellow/green yellow/red: speed pulse signal

vehicles with Business Professional OEM HU

vehicles without iDrive
vehicles without OEM MOST amplified system

vehicles with OEM MOST amplified system:
Active system adapter BMW MOST>RCA > item: 13-1024-51*

vehicles with PDC:
SWC CAN Bus speaker 42a/42cx PDC > item: 42cxpdc

Use case:

vehicle-specific wiring harness

Vehicle application:

BMW
BMW 1er (E81/E82/E87/E88) 03/2004 - 10/2013*
BMW 3er (E90/E91/E92/E93) 03/2005 - 10/2013*
BMW 5er (E60/E61) 07/2003 - 07/2010
BMW 6er (E63/E64) 09/2004 - 11/2010
BMW 7er (E65/E66) 08/2001 - 11/2008
BMW Z4 (E89) 05/2009 - 08/2016
BMW X1 (E84) 10/2009 - 06/2015
BMW X5 (E70) 03/2007 - 09/2013
BMW X6 (E71/E72) 05/2008 - 06/2014

Mini
Mini (R55/R56/R57/R58/R59) 11/2006 - 05/2015

Interface:
SWC different vehicles universal cx401 CAN Bus > item: 42cx401
SWC different vehicles universal cx402 CAN Bus Axion/Kienzle > item: 42cx402
SWC different vehicles universal cx403 CAN Bus Continental > 42cx403
SWC different vehicles universal cx401 harness/Multilead > item:42-1000-001
CAN-Bus adapter different vehicles universal harness > can-uni 01
