Varenr.: 2 001 020 000 031
1 Stk På lager hos os
Specifications
Radio
High-End CODEM IV World-tuner
FM, AM, DAB, DAB+ Tuner with radiotext/DLS
Traffic function
Travelstore
Service following
Introscan Presets and Band
Mediaplayer
USB (2x), microSD with MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV Support
Analog audio input on the front (AUX-IN)
Apple iPod Support
Bluetooth
Telephony via int. or ext. microphone
Audiostreaming with trackinfo
Audio mix-option for mobile navigation
Voice assistant support (e.g. Siri, Google, Alexa)
Automatically switch on when there is an incoming call (Wake-up on call)
Two phones can be connected at the same time (Twin-Connect)
Phonebook access
Sound
Digital signal processing (DSP)
2x 14-band equalizer (front and rear channels separately adjustable)
Sound presets
Loudness
4-channel pre-amp out + subwoofer preamp output
4 x 50 Watt
General
Adjustable illumination color of buttons and display (Vario Colour, 4,096 colors)
2-line display
Brightness control of display and keys (DIM function)
Direct access to all audio sources
Permanenter memory
Short body (low installation depth)
IR-remote control option, RC-10 compatible
Steering wheel remote control support (analog SWC input)
RADIO ANALOG / DIGITAL
Tuner Type High-End Automotive Tuner Blaupunkt CODEM IV
World Tuner (switchable) EU, USA, South America, Thailand
Frequency bands FM, AM, DAB, DAB+
Frequency band FM 87.5 – 108 MHz
Frequency band MW 531- 1602/ 530- 1710 kHz
Channels (frequency band) DAB/ DAB+ 5A- 13F (174,928- 239,200 MHz)
Station memory 15x FM, 10x AM, 15x DAB
Station memory levels deactivatable FM2, FMT, AM, AMT, DAB2, DAB3
Station display (PS) Yes
Radiotext/ Radiotext Plus (RT/ RT+) Yes/ No
Display DLS/ ENSEMBLE/ SERVICE Yes/ Yes/ Yes
Alternate frequency function (AF) Yes
Traffic Radio (TA) FM/ DAB Yes/ Yes
RDS Time (CT) Yes
Enhanced Oth. Netw. (EON) Yes
Regional function (REG) Yes
Program type identifier (PTY) FM/ DAB Yes/ Yes
PTY Seek FM/ DAB Yes/ Yes
Travelstore/ Number of Presets for Travelstore Yes/ 5x FMT, 5x AMT
Band Scan + Preset Scan FM/ DAB Yes/ Yes
Sensitivity (FM) Two levels (lo / dx)
Noise suppression (FM) Yes
Hi-Cut (FM) Yes (multi-level switchable)
DAB-DAB Service following Yes
DAB-FM Service following Yes
Service scan Yes
Ensemble/ Service selection Yes/ Yes
Ensemble/ Service browsing Yes/ Yes
Frequency response FM 30 – 15.000 Hz +/- 3 dB
Frequency response DAB 20 – 20.000 Hz +/- 3 dB
MEDIAPLAYER
AUX front Yes (3.5 mm jack)
AUX detection/ automatic source activation Yes
USB front Yes (type A, recessed jack)
USB rear Yes (type A, cable)
Memory card reader Yes (microSD, microSDHC, microSDXC)
Concealed front inputs Yes (USB & microSD usable with flap closed)
Compatible file system (USB, memory cards) FAT16, FAT32, exFAT
Maximum storage size (USB, memory cards) > 128 GB
Maximum file/folder count (USB, memory cards) > 30,000
Playback formats MP2, MP3, WMA, FLAC, M4A(AAC), APE, WAV
Display options ID3V2 (title, artist, album), folder, file, playtime
Folder & file browsing Yes
Scrolling Yes (single/ continuously)
iPod, iPhone control Yes (USB front and rear)
Shuffle folder/ media Yes/ Yes
Repeat Title/ Folder/ All Yes/ Yes/ Yes
Mix / Repeat / Scan Yes/ Yes/ Yes
BLUETOOTH*
Phone call Yes
Internal microphone Yes
Connectivity ext. microphone Yes
Answer/ reject call Yes/ Yes
Access phonebook Yes (max. 1000 numbers)
Audio streaming Yes
Audio streaming ID3 track display Yes (Title, Artist, Album, Playtime)
Voice assistant access (e.g. Siri, Google, Alexa) Yes
Cell phone navigation audio mix Yes
Auto wake-up on call Yes (when radio off + ignition on)
Fast pairing without PIN Yes
Automatic reconnection Yes
Bluetooth version 5.0 LE
Number of paired devices max. last 5
No. of devices connected at the same time max. 2 (Twin Connect)
Supported profiles A2DP, AVRCP, HFP, SPP
Audio Codecs aptX, AAC, SBC
*Availability/support of functions depend on the phone/app used!
SOUND
Equalizer Number of bands/design 2x 14/parametric
Bass/treble adjustment Yes / Yes (+/- 12 steps)
Source specific bass/treble adjustment Yes
Balance/fader Yes / Yes (+/- 12 steps)
HPF/LPF Yes, separately for front/rear channels, variable
Loudness Yes
Sound Presets Yes (Rock, Pop, Classical)
Speaker Outputs (Channels) 4
Preamp Outputs (Channels, Voltage) 4 (RCA, < 4V)
Max. Power 4 x 50 watts
Sine power at 14.4 V 4 x 24 watts (according to DIN 45324)
Sub-Out 2 (RCA, gain/ frequency variable)
GENERAL

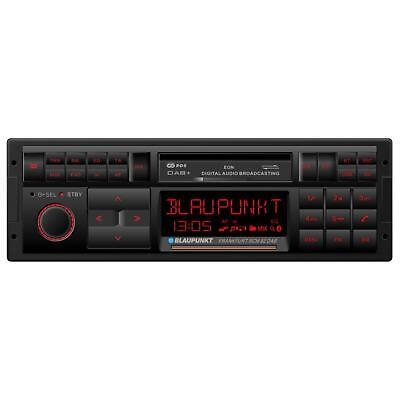

Display LCD, negative, anti-reflective, wide angle 2 lines, Alphanumeric/Symbols
Illumination color display/keys Vario Color, 4,096 colors
Day/Night mode Yes (manual/via dimmer connection)
Brightness Multi-level, variable
Time display Yes
HMI languages English, German
Low standby current Yes (< 3,5 mA )
Antenna inputs FM DIN/ ISO, DAB SMB (with 12 V phantom power)
Telephone mute Yes
Ext. handsfree microphone connector Yes
Remote control Yes (IR input for RC-10 and card remote)
Steering wheel remote control (SWC) Yes (analog, programmable, pre-programmed)
Variable scan time Yes
Confirmation beep Yes (can be deactivated)
Control panel type Fixed panel
Color panel/ decor ring Black/ Black
Software Update via USB
Permanent Memory Yes (Settings & Presets)
Demo mode Yes
Weight approx. 0.67 kg

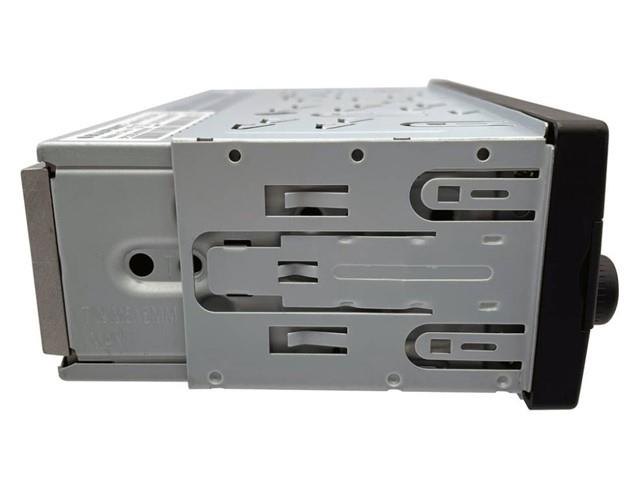

Dimensions 50mm x 178mm x 116mm (H x W x D, housing only) 58mm x 186mm x 10mm (H x B x T, front w/o keys)
Operating voltage 10.5 – 14.4 V
Power consumption in operation: < 10A, 10 sec. after ACC power off: < 3.5 mA

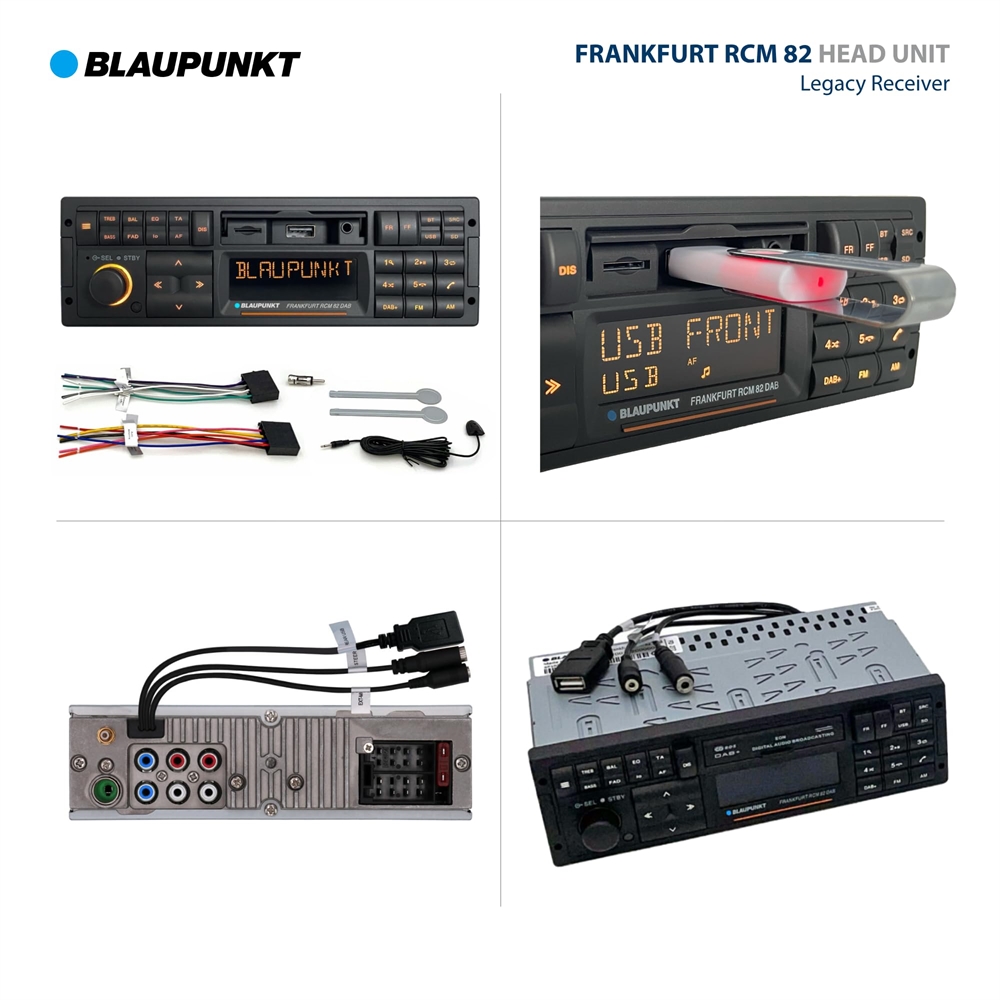

SCOPE OF DELIVERY
External BT microphone Yes
Unlocking tool Yes
Connectors (ISO A, B) Yes
Antenna adaptor (DIN/ ISO) Yes
DAB antenna Optional accessories (e.g. 2 006 021 000 000)
IR remote control Optional accessories
