BAKKAMERA TIL HELLA BREMSELYS DUAL VIEW

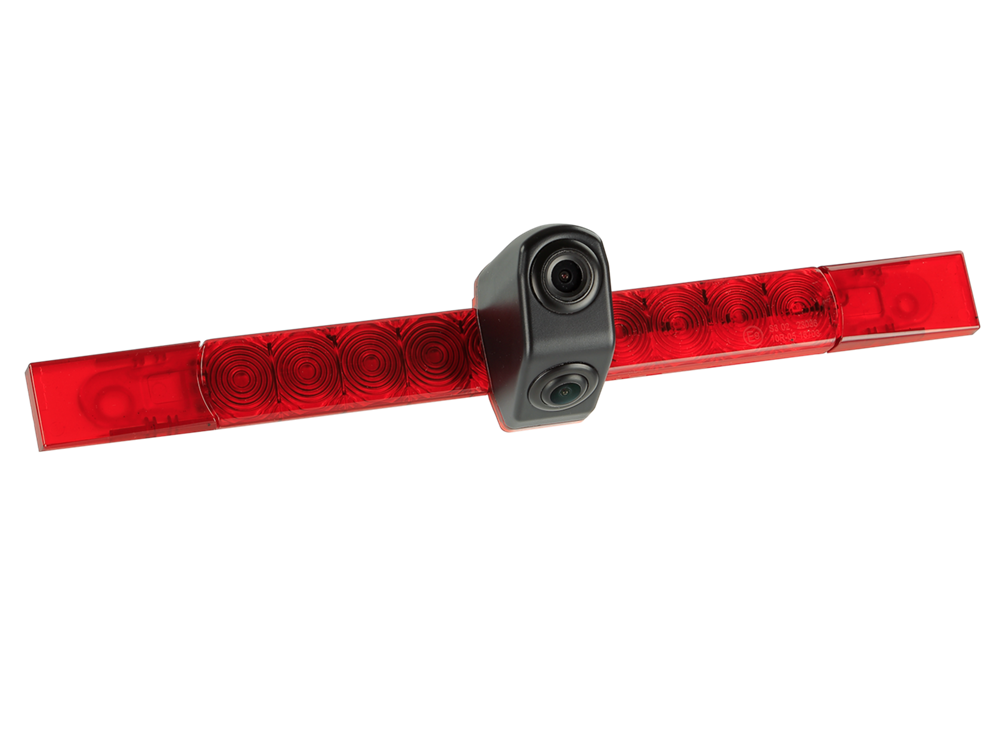

Dual rear view camera (2 camera lences)

Caravan / Motor Home with Hella 2DA 343 106-201 3rd brake light

to replace the OEM 3rd brake light

Note:

all acv cameras are suitable for +12V continuous operation
To replace the OEM Hella 2DA 343 106-201 3rd brake light
connection:
red +12V switched load-stable (fused)
yellow +12V switsched load-stable (fused)
black ground car body direct

Product characteristic:

Design: plastic
Color: black/red
Extras: 2 camera lenses
Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 976 x 592
Resolution: 600TV lines
View angle camera 1: horicontal 105 + 5° vertikal 75 + 5°
View angle camera 2: horizontal 48 + 5° vertikal 34 + 5°
IP Rating: IP 68
Terminal: 7-pin plug (male)
Power supply: DC 12V + 10%
Current consumption: 180mA
Operating temperature: -20°C - 75°C
Storage temperature: -40°C - 85°C

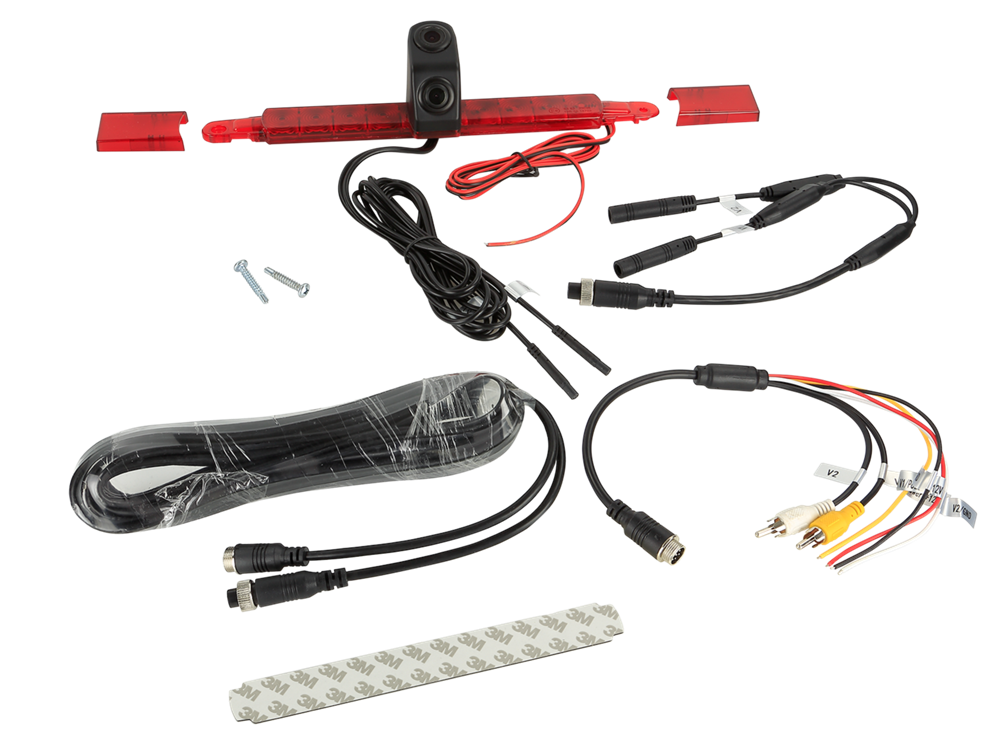

Measurements: looks as OEM 3´rd brakelight

Pigtail at the camera:

0,5 Meter cable 7 Pin plug (male)

System harness:

6,5 meter 7 Pin plug extention

0,2 Meter 7 Pin connector

Connection:

black: ground chassis
rot: trigger +12V switched camera1
RCA yellow: camera1
white: trigger +12V switched camera2
RCA white: camera2
