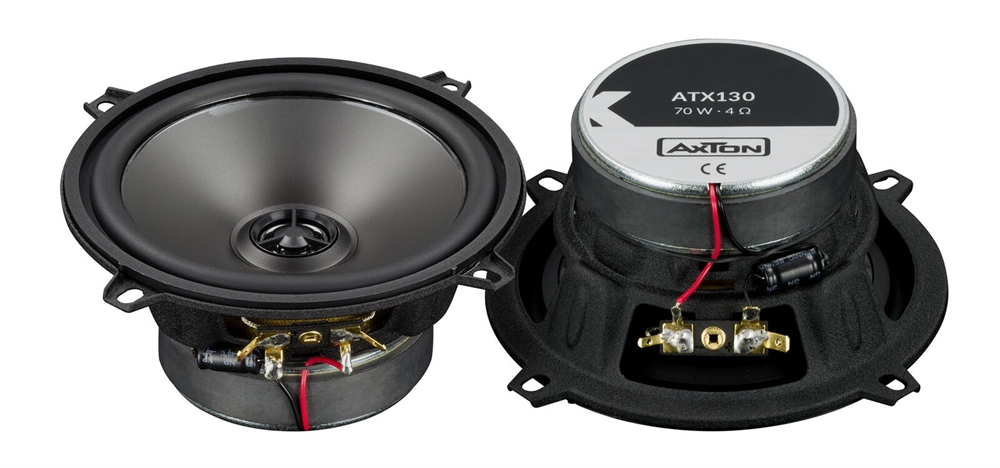

AXTON ATX130 5" COAX

All about the ATX130 speaker
Our new coaxial loudspeakers from the ATX series are designed as point source speakers. The 13 mm dome is on the same level as the woofer membrane and thus enables an in-phase radiation of the respective frequency components. Phase shifts in the transition range of the frequency components, as they occur with conventional protruding tweeters, are thus a thing of the past. The result is a transparent, clear music reproduction with high dynamics.
Highlights
13 cm EURO-DIN 2-way coaxial system
2-way coaxial system designed as a point source for realistic music reproduction
13 mm tweeter with Mylar dome and neodymium magnet
Strontium ferrite magnet for the mid-bass driver
Low resonance polypropylene membrane
NBR Nitrile rubber surround
Ventilated NOMEX centering spider
Polyimide voice coil former
hard gold-plated, corrosion-resistant plug contacts
LS grille included in delivery
Specifications
Frequency Response
75 Hz – 22 kHz
Nominal impedance
4 Ohm
Sensitivity (1 W/1 m)
88 dB
Rated load capacity
70 Wrms
Mounting diameter
116 mm
Installation depth
56 mm
