AXTON ATC26-DUC 6,5" COMPOSÆT DUCATO

All about the ATC26-DUC speaker

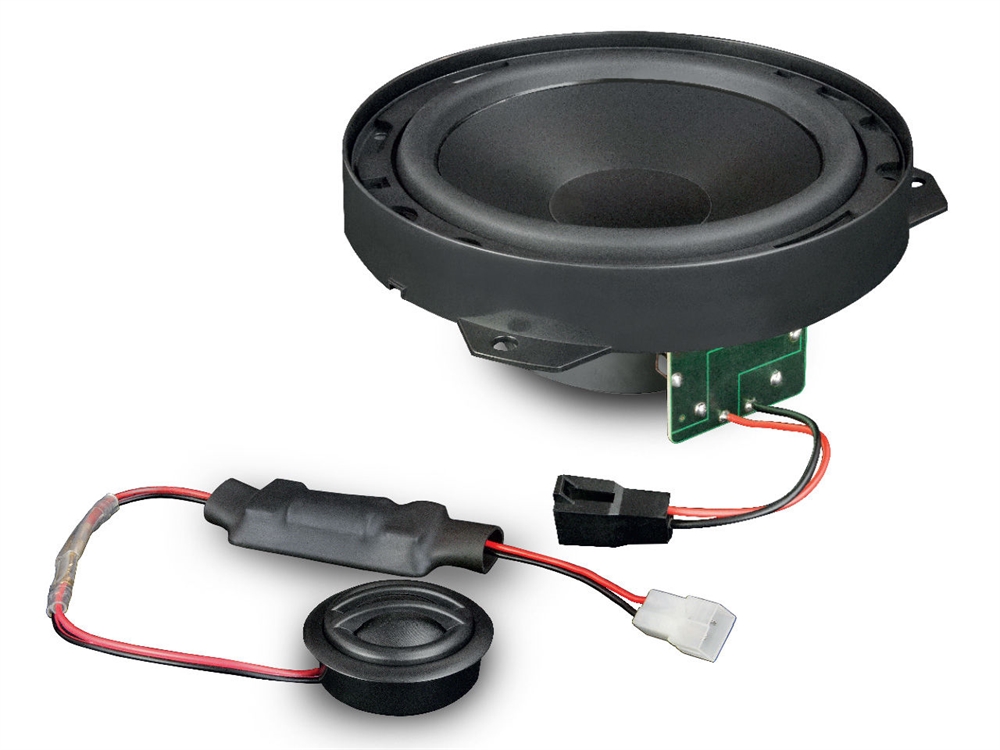

Easy upgrade for your sound: Do it, with AXTON's ATC26-DUC, whose sound performance and mounting features were specially designed for FIAT Ducato based motorhomes. Just plug and play! The installation of the bass/midrange driver is radically simplified by the 12 dB/oct. crossover integrated into the basket and a mounting ring attached directly to the basket. The flat tweeter has an easy-to-install inline crossover and can therefore be easily mounted in the various A-pillar fairings of the FIAT Ducato. The plug connections of the tweeter and bass/midrange driver are also matched to the installation in the Ducato, enabling direct connection to the plugs of the supply cable available in the vehicle.
Highlights
Low-midrange driver with strontium-ferrite magnet
Low resonance polypropylene membrane
Bead made of NBR, centering spider made of Nomex
25 mm fabric dome with ferrofluid-cooled neodymium drive
Compact 12 dB/oct. inline crossover for the tweeter and a 12 dB/oct. crossover mounted directly on the bass/midrange driver
Vehicle-specific plug connections for direct connection
Specifications
Frequency response (-3dB)
60 Hz – 25 kHz
Nominal impedance
4 Ohm
Sensitivity (1 W/1 m)
91 dB
Rated load capacity
120 Wrms
