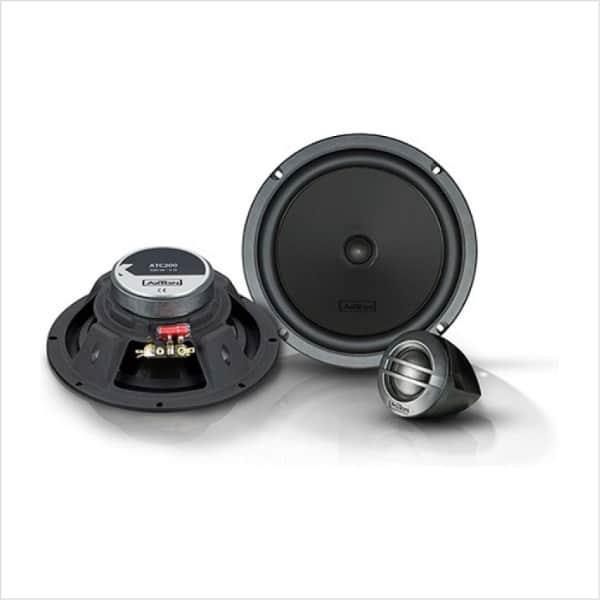

AXTON ATC200 8" COMPOSÆT

All about the ATC200 speaker
The ATC Compo series (ATC200, ATC165, ATC130, ATC100) can easily replace factory assembled components: There is no need to install a common crossover, so the woofer can be exchanged 1:1. The enclosed compact tweeter crossover can be conveniently placed behind the cover of the A-pillar or the door panel. With the newly developed AXTON 25 mm fabric tweeter of this composite, extensive listening sessions are a pleasure even at high listening volumes. With low resonance and detailed reproduction, the tweeter also scores points with its small installation dimensions. The special diffusor ensures a targeted dispersion and thus improves the stage image. AXTON has designed an attractive surface-mount housing for mounting far away from the original installation position. The two mounting angles allow different radiation angles.
Highlights
BASS/MIDRANGE DRIVER
Precision-made sheet steel basket
Strontium Ferrite Magnet
Low resonance polypropylene membrane
Linear working bead of NBR nitrile rubber
Ventilated NOMEX spider
Voice coil on polyimide carrier
ventilated Nomex centering spider
Hard gold-plated, corrosion-resistant plug contacts
LS grille included in delivery
TWEETER
25 mm tweeter with fabric dome
Diffuser for best spatial imaging
Powerful neodymium magnet with ferrofluid cooling
Level reduction for the tweeter -3 dB/0 dB
including a mounting adapter for surface and recessed installation
DIPLEXER
6 DB/OKT IN-LINE Crossover
Space-saving "IN-LINE" turnout housing
Level reduction for the tweeter -3 dB/0 dB
Specifications
Frequency Response
50 Hz – 25 kHz
Nominal impedance
4 Ohm
Sensitivity (1 W/1 m)
94 dB
Rated load capacity
100 Wrms
Mounting diameter
184 mm
Installation depth
72 mm
