Varenr.: AE146
På lager hos vores leverandør
More Information

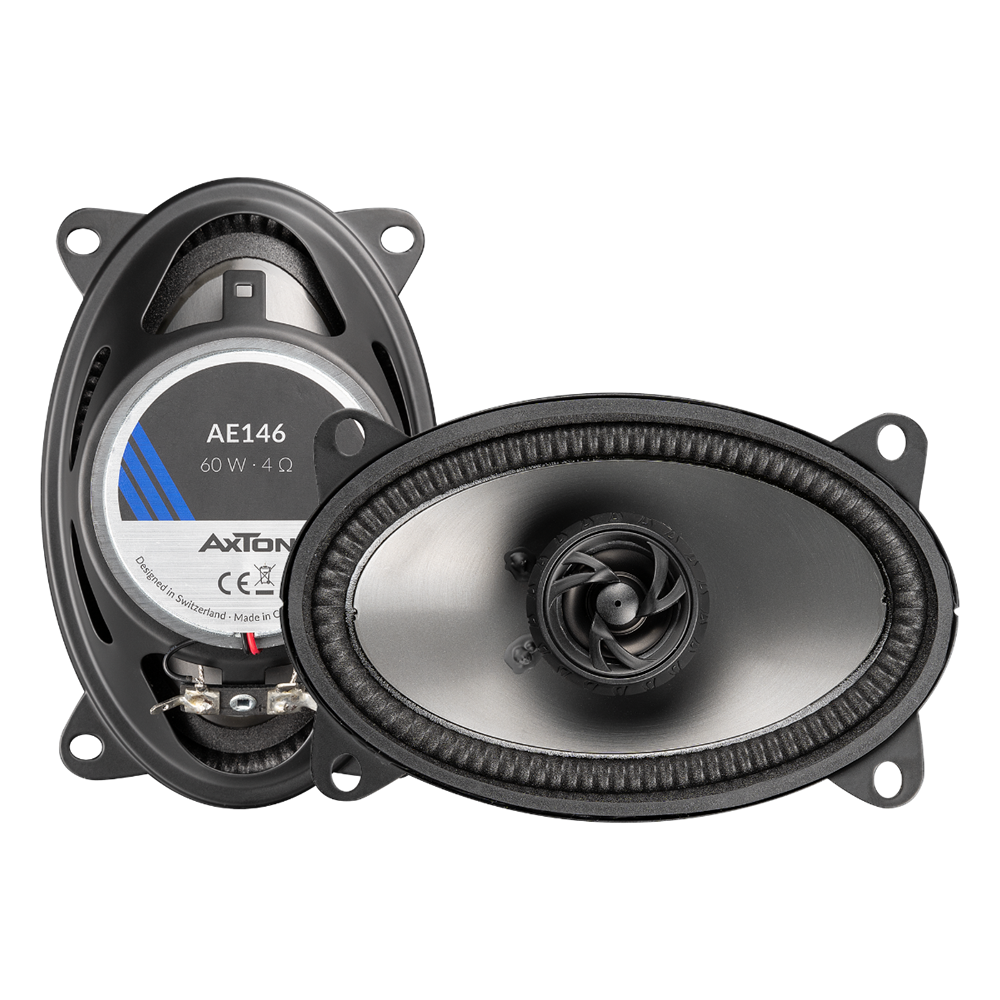

All about the AE146 speaker
Although designed with budget in mind, our AE coaxial systems offer the renowned AXTON quality in terms of workmanship and sound. All 2-way coax systems are equipped with sturdy Euro-DIN baskets and fit - not least because of the reasonably dimensioned strontium ferrite magnets of the low/midrange drivers - into the original installation openings of most vehicles.
The midwoofers feature lightweight, low-resonance injection-moulded polypropylene cones, which offer high rigidity as well as high internal damping and stand for precise reproduction across the entire frequency range. Added to this is the lightweight foam surround, which makes the impulse response even faster and increases the mass to be moved even less than is usual with other materials. Our coaxials are equipped with a very compact 13 mm neodymium tweeter with mylar dome, which guarantees a lively, differentiated high-frequency reproduction.
Highlights
4 x 6" / 10 x 15 cm 2-way coaxial system
Compact basket construction made of sheet steel in Euro-DIN format
Powerful strontium ferrite magnet
Lightweight injection-moulded polypropylene membrane
Polyurethane foam surround
13 mm mylar dome with ferrofluid cooled neodymium drive
Specification
Frequency response: 100 Hz - 20 kHz
Nominal impedance: 4 Ohm
Sensitivity (1 W/1 m): 82 dB
Rated power handling capacity: 60 W
Mounting diameter: 10 x 15 cm/4 x 6"
Installation depth: 48 mm
