Varenr.: A4120
På lager hos os
Download manual
A4120 4-Channel Class-D Mini-Amplifier 4 x 60 W RMS 4 ohms
Power boost for all Axton speakers
RCA input
Integrated active crossover
Ultra compact heatsink design
All about the A4120 4-Channel Class-D Mini-Amplifier
AXTON A4120 - ultra compact digital 4 channel amplifier for cars and motorhomes, powerful digital mini power amplifier, Class-D, 4 x 60 watts.
Compact, more compact, AXTON amplifier - only about 8 cm wide and 3.5 cm high, this 4-channel amplifier offers a lot of power in a small space. thanks to the ultra-compact dimensions, the Class D power amplifier can be flexibly installed in the car, the motorhome or caravan - for example in the glove compartment or behind the dashboard.
The elegant, black aluminum housing is of first-class workmanship and well thought-out design: despite its compact dimensions, the massive heat sink specifically directs the heat to the outside, thus ensuring a continuous optimum operating temperature.
With 4 x 60 W RMS at 4 ohms, the A4120 is a perfect power source for any car audio or multimedia system. Through the mature interaction of all components, this high-quality amplifier also plays at a high level in terms of sound Level. The linear frequency response from 10 Hz - 30 kHz and the low distortion values give the music signal the opportunity to express itself in detail.

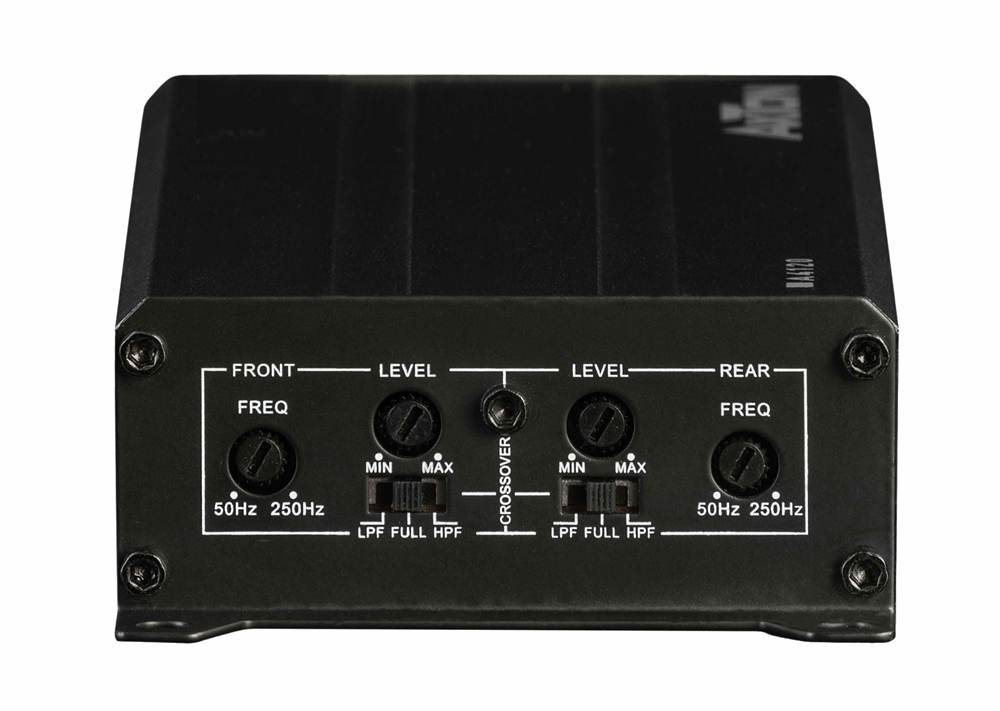

The AXTON digital amplifier has an integrated 12 dB/oct. low-pass filter (adjustable from 50 - 250 Hz) and a 12 dB/oct. high pass filter (adjustable from 50 - 250 Hz). Via the RCA input or an optional high level adaptor the A4120 can be integrated into an existing car audio or multimedia system.
Highlights
Ultra-compact Class-D amplifier
Aluminum heatsink for optimal heat dissipation
12dB/oct Low-pass filter (adjustable from 50 - 250 Hz)
12dB/oct High pass filter (adjustable from 50 - 250 Hz)
RCA input
Variable input sensitivity: 0.5 - 6 V
Specifications
Output power @ 4 Ohm
4 x 60 W
Damping factor @ 4 Ohm:
>100
Frequency Response:
10 Hz – 30 kHz
Signal-to-noise ratio:
90 dB
Dimensions (W x H x D)
1960 x 35 x 82 mm
