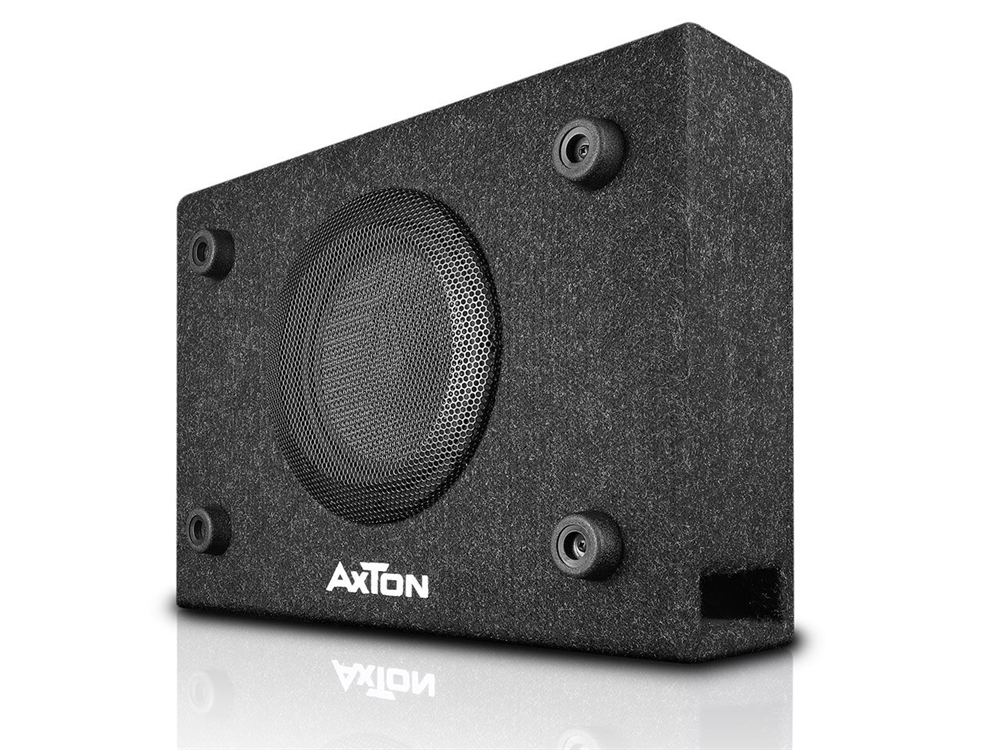

All about the ATB120 bassreflex subwoofer
No matter how you look at it - you will always find a place for the ATB120. With its practical dimensions, the hip flask with 20 cm subwoofer chassis and reflex channel will fit into just about any trunk: Whether it is flat on the floor or hidden in the double floor, firmly mounted on the side panel or even on the rear seat back - you will appreciate the extremely small space requirement. Of course, apart from the optimal mounting options, the sonic characteristics are not neglected. As usual from AXTON, the ATB120 underlines your music with a rich and melodious bass, which can of course be loaded up if necessary. The precise reflex channel tuning and the careful selection of subwoofer components ensure the high level of playing pleasure and level stability. The large 38 mm double voice coil (2 x 2 ohms) processes music signals of up to 300 watts and can be flexibly connected to mono or multi-channel amplifiers. And the torsionally stiff glass-fibre/paper sandwich diaphragm also has a great influence on the incomparable sound character of this special subwoofer. All in all, the ATB120 is a very good choice - not only for small vehicles.
8" / 20 cm bass reflex cabinet subwoofer
Flat space-saving design, flexible in use
Including mounting bracket for flexible mounting options
Woofer with stiff fiberglass/paper cone and butyl rubber surround
1.5"/ 38 mm voice coil on capton carrier
High linear Xmax value of +/- 4 mm
Frequency Response
60 - 220 Hz
Nominal impedance
2 x 2 Ohm
Sensitivity (1 W/1 m)
89 dB
Rated load capacity
200 W RMS
Maximum load capacity
300 W max
Dimensions (H x W x D):
135 x 485 x 345 mm
