Varenr.: ATB20A
  • PRIS ER PR. Stk
    Pris ved køb af 1 Stk,1.869,00  DKK
På lager hos os

Download manual

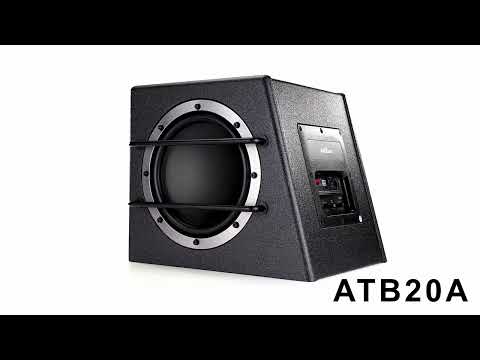

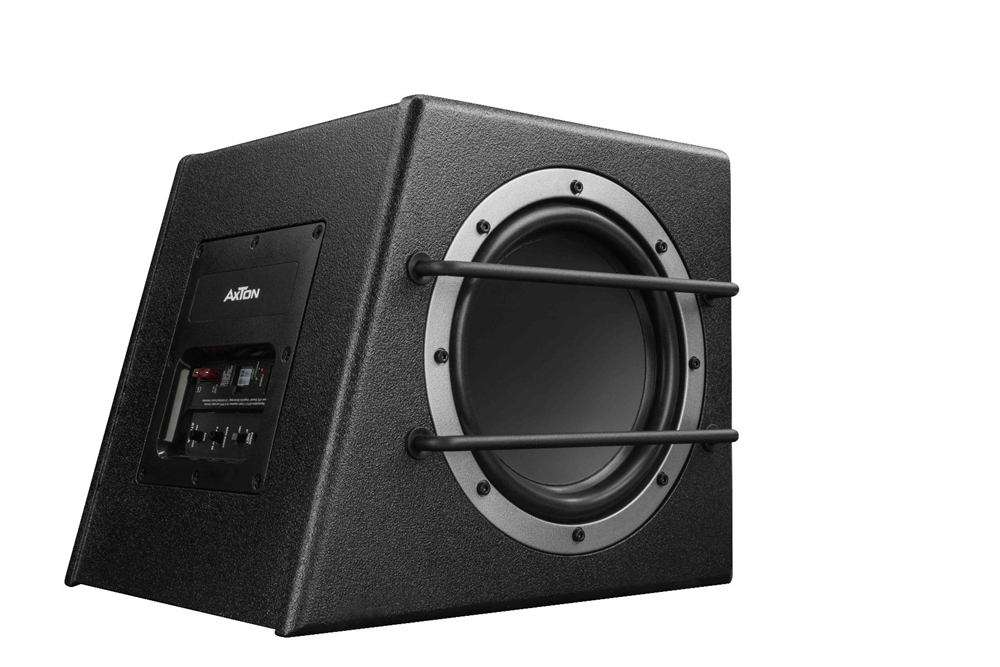

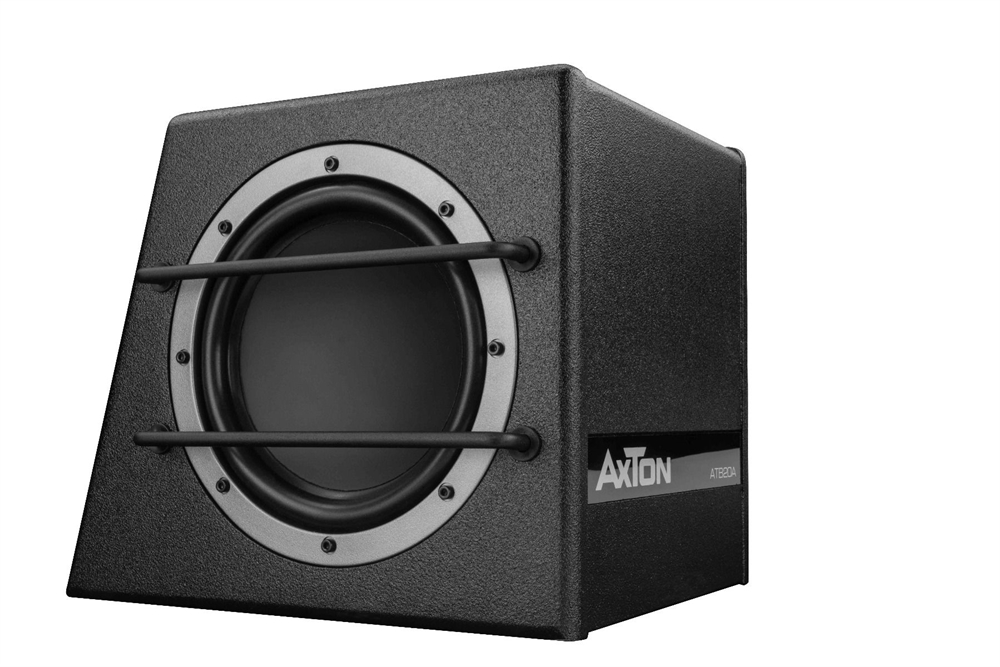

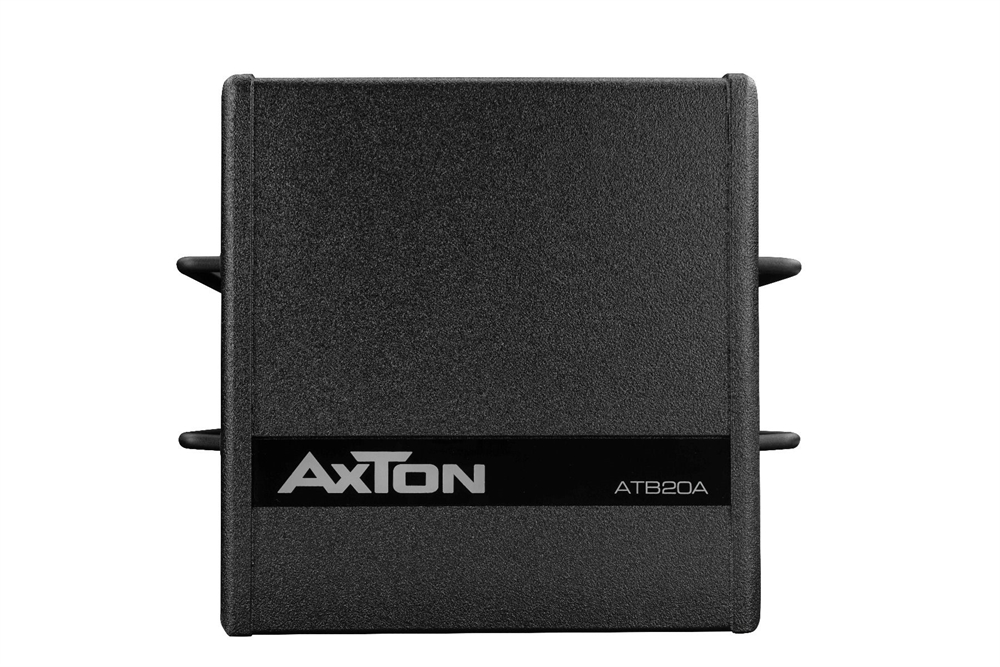

All about the ATB20A active subwoofer
Compact, powerful and with a modern design the chic 'mini bass miracle' can even be positioned in the boot of small vehicles. The ATB25A has been developed for music lovers who do not want to do without a boot space or bass support when travelling. Since AXTON's compact speaker is not only quick to install, but also easy to remove, the active subwoofer is also suitable for leased vehicles, for example, where as few changes as possible are required.
20 cm active subwoofer with long-throw chassis and passive radiator
Integrated class-D MOSFET output stage with 100 W RMS output power
Variable input sensitivity for Cinch and High-Level inputs
Electronic active crossover with adjustable 12 dB/oct. low pass filter from 50 - 150 Hz
Adjustable phase shift with 0 - 180° control range
Power amplifier with Auto Turn-On function for the high-level inputs
Phase Shift, Input Gain, and Low Pass Knobs are conveniently located on the front panel

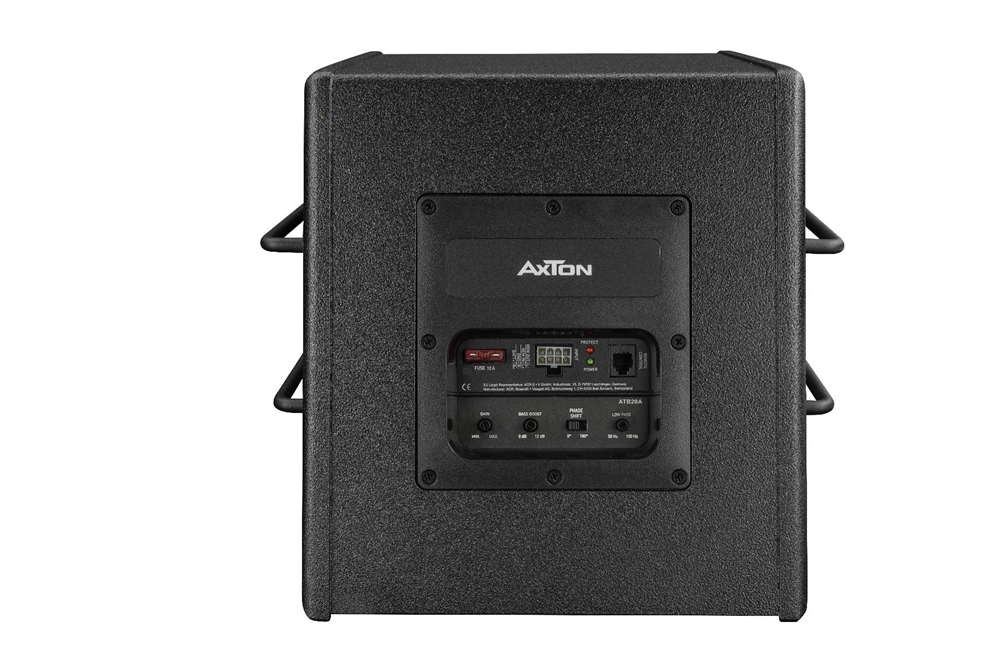

Connection terminal and fuse are located on the back of the housing
Frequency Response
45 - 150 Hz
Output power 4 Ohm (>1,0% THD / 14,4 V)
100 W RMS
Output power 4 Ohm (>10% THD / 14,4 V)
140 W max
Input sensitivity Cinch
0,2 – 5 V
Input sensitivity High-Level
1,0 – 8 V
Signal-to-noise ratio
> 85 dB
Dimensions (W x H x D, mm)
315 x 275 x 330
Net weight
6.8 kg
