Varenr.: ATB20RXF
  • PRIS ER PR. Stk
    Pris ved køb af 1 Stk,1.949,00  DKK
På lager hos os

Download manual

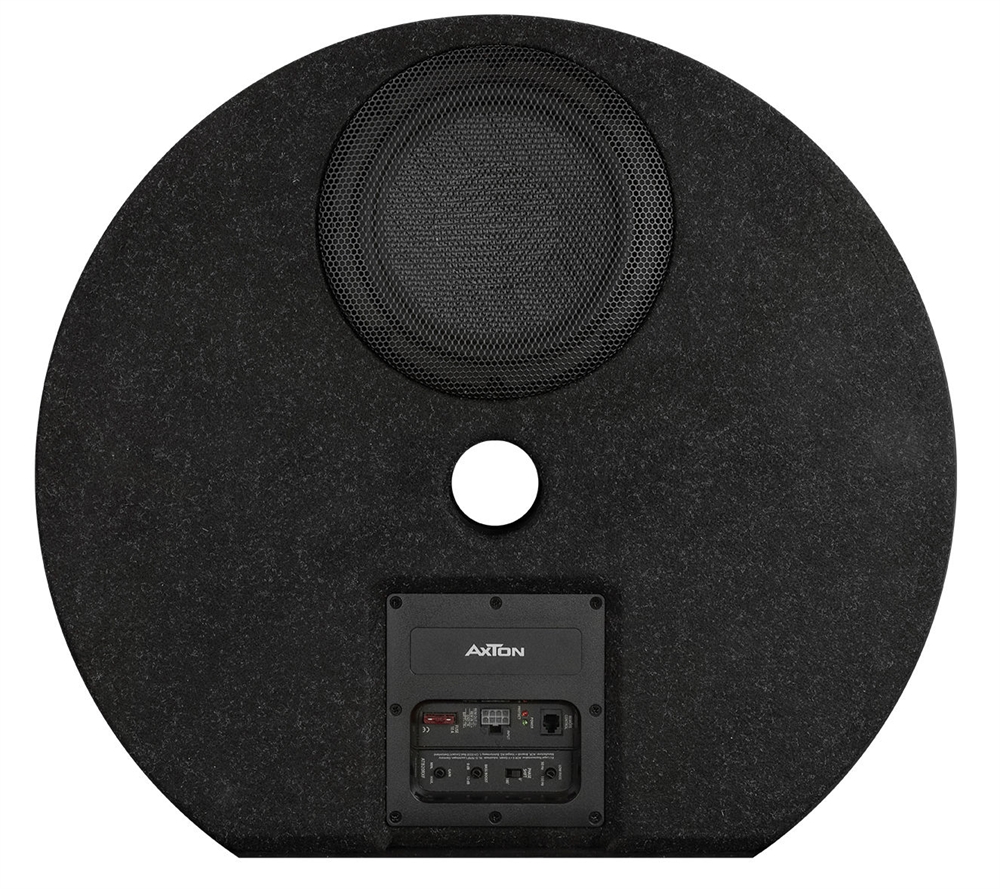

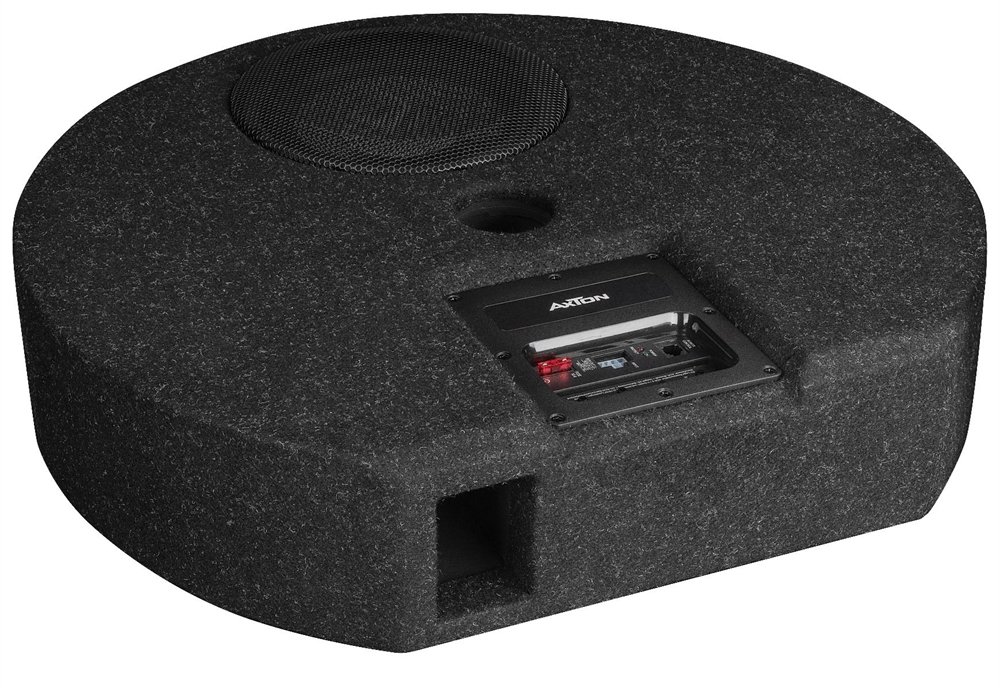

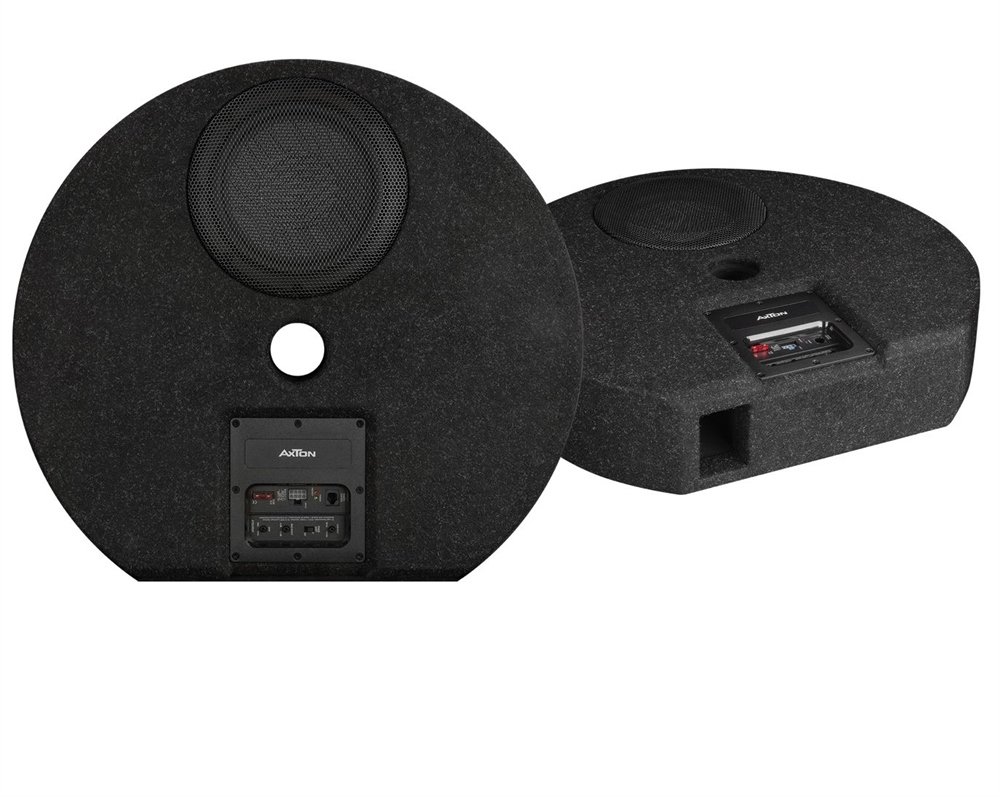

All about the ATB20RXF spare wheel well active subwoofer
ATB20RXF is the round, extra-flat subwoofer for the spare tire well. With a height of just 125 mm, this bass even fits into almost all emergency wheel wells or intermediate floors of current trunk designs. The well thought-out cabinet construction combines stability, minimal space requirements and low weight in a powerful product design with impressive bass quality. The 100 W RMS amplifier module is located user-friendly on the top of the subwoofer. This means that all settings such as low-pass filter, phase shift, gain and bass boost can be conveniently made. The high-level inputs with auto turn-on function are helpful for connection to OEM radios (without REM output). With the bass level remote control, the level is conveniently dosed from the driver's seat.
8" / 20 cm active subwoofer
Bass reflex principle with flow-optimized port
Powerful 20 cm subwoofer with strong magnet motor and rigid membrane
Frequency response: 35 – 180 Hz
1 x 100 W RMS amplifier module
Variable lowpass filter: 50 – 150 Hz/12 dB/oct.
Bass-Boost: 0 dB - 12 dB
Phaseshift 0 / 180°
Bass Level Remote Control
RCA, adjustable input sensitivity: 150 mV – 5 V
High-Level, adjustable input sensitivity: 1.0 V – 16 V
Signal to noise ratio: > 90 dB
Dimensions (D x H): 580 x 125 mm
Net Weight: 11.6 kg
Frequency response
35– 180 Hz
Output power 4 Ohm (< 1.0 % THD/14.4V)
1 x 100 W RMS
Output power 4 Ohm (< 1.0 % THD/14.4V)
1 x 120 W max
Input sensitivity Cinch
0,15 – 5 V
Input sensitivity high level
1,0 – 16 V
Variable low pass filter
50 – 150 Hz / 12 dB/Okt.
Switchable bass boost
0 dB / 12 dB
Dimensions(Ø x H, mm)
Ø 580 x 125
