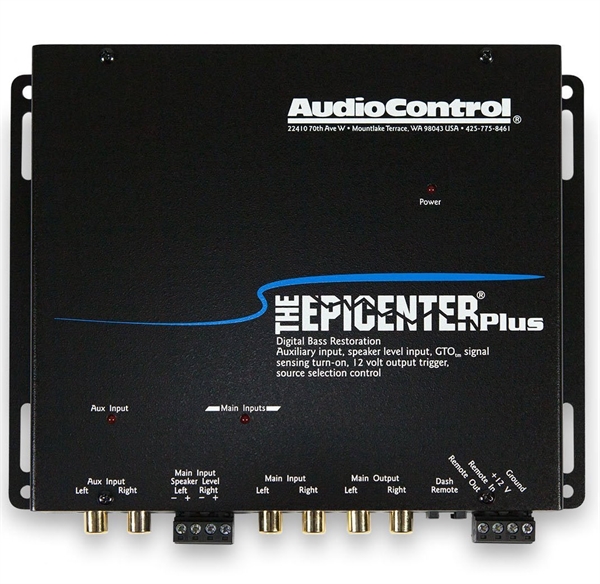

AUDIOCONTROL THE EPICENTER PLUS M/AUX IN

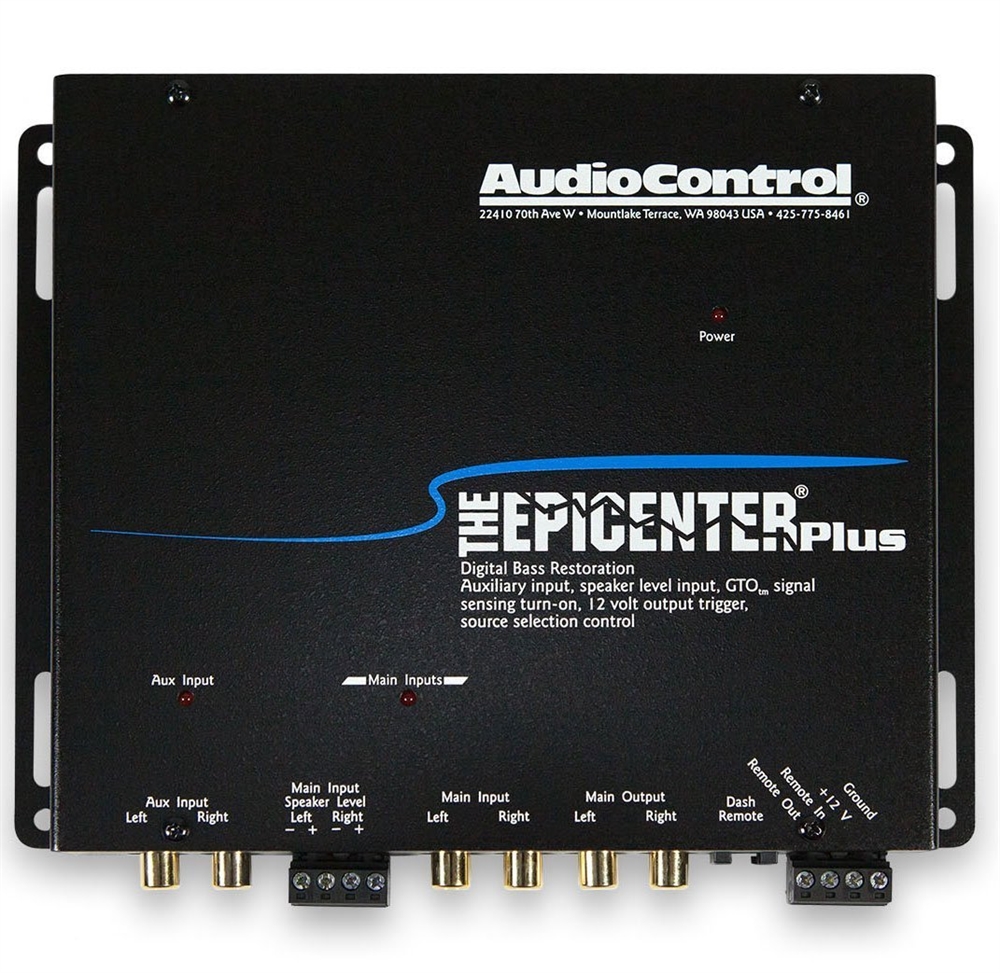

THE EPICENTER® PLUS
BASS RESTORATION PROCESSOR WITH AUX INPUT
Adding impactful bass to your factory installed system is simple with The Epicenter® Plus. The added OEM Interface on The Epicenter Plus converts your speaker-level signals into high quality pre-amp outputs to give you More Bass, LOUDER! Plus, you get an auxiliary input for adding secondary sources (like iPods and Satellite Radio).
The high-impedance Speaker Level Inputs allow you tap off factory speaker leads for simple addition of aftermarket subwoofers to any factory audio system. AudioControl’s exclusive GTO™ Signal Sense Turn-on and corresponding 12-volt remote output provide the turn-on lead for aftermarket amplifiers. In addition to speaker-level inputs, The Epicenter Plus has line-level inputs for use with aftermarket systems.
The Epicenter Plus uses AudioControl’s famous Digital Bass Restoration to drive your subwoofers lower, grabbing the attention of every ear on the boulevard.
FEATURES
Patented Bass Restoration Circuitry
Speaker-Level Inputs for Integration with Factory Audio Systems
Auxiliary Input for iPod’s, MP3 players or Satellite radio tuners
GTO™ Signal Sensing Inputs for Automatic Turn-on
Bass Maximization Circuitry
12 volt trigger output
Dash mount control
PFM Subsonic Filter
Balanced Pre-amp inputs
SPECIFICATIONS
INPUTS
Preamp Inputs: 1 (2 channels)
Maximum Input Level: 9.5Vrms
Aux Input: 1 (2 channels)
Speaker Level Inputs: 1 (2 channels)
Maximum Speaker Level Input: 400W at 4Ω
Input Impedance: 20kΩ
OUTPUTS
Preamp Outputs: 1 (2 channels)
Maximum Output Level: 9.5Vrms
Output Impedance: 150Ω
PERFORMANCE
Total Harmonic Distortion: 0.003%
Frequency Response: 10Hz-22kHz
Signal to Noise: 110dB
Balanced Input Noise Rejection: >60dB
CONTROL
Remote In
12VDC Remote Out (always active when unit is on)
GENERAL
Power Supply: High Headroom PWM Switching
Current Draw: 285mA
Recommended Fuse Rating: 2A
WEIGHTS & DIMENSIONS
Dimensions: 8”W x 6.25”D x 1.15”H
Weight: 3.5lbs (1.6kg)

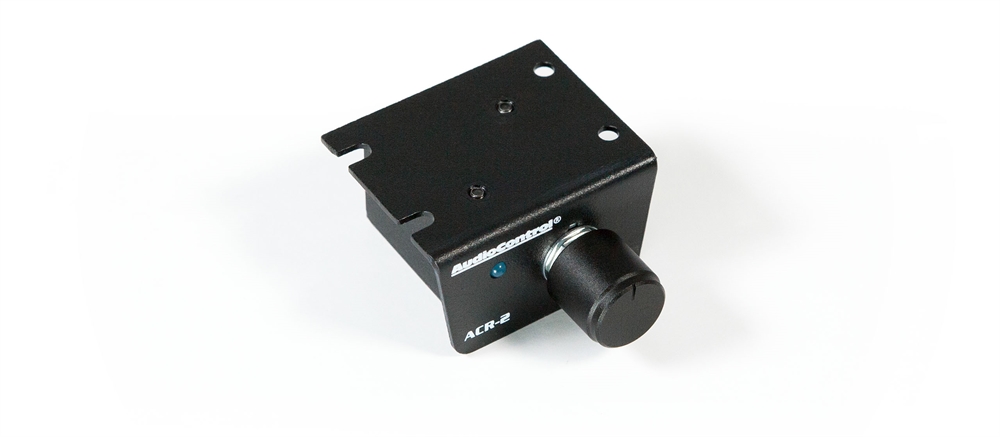

IN THE BOX: The Epicenter Plus, ACR-2 Remote, Power Connector, Manual, Warranty
