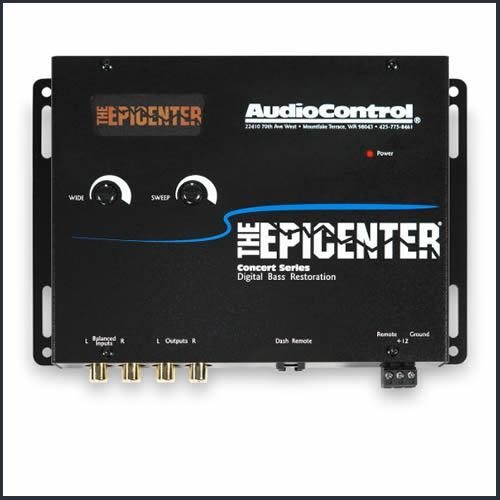

AUDIOCONTROL THE EPICENTER® CONCERT SERIES

THE EPICENTER® CONCERT SERIES
DIGITAL BASS RESTORATION PROCESSOR
Your MP3 player thinks your car stereo is a pair of headphones, so it removes the bass! The Epicenter restores the earth-shaking power and heart-pounding bass your subwoofers crave.
Give your subwoofers the juice to go lower and hit harder. The Epicenter uses a bass circuit to drive your subwoofers lower, grabbing the attention of every eye on the boulevard.
FEATURES
Patented Bass Maximizer™
Dash mount control
Bass restoration lighted display
Parametric bass control
PFM Subsonic Filter
Balanced inputs
Bass Output Control
SPECIFICATIONS
INPUTS
Preamp Inputs: 1 (2 channels)
Maximum Input Level: 15Vrms
Input Impedance: 10kΩ
OUTPUTS
Preamp Outputs: 1 (2 channels)
Maximum Output Level: 13.5Vrms
Output Impedance: 150Ω
PERFORMANCE
Total Harmonic Distortion: 0.003%
Frequency Response: 10Hz-100kHz
Signal to Noise: 110dB
CONTROL
Remote In
GENERAL
Power Supply: High Headroom PWM Switching
Current Draw: 150mA
Recommended Fuse Rating: 1A
WEIGHTS & DIMENSIONS
Dimensions: 8″W x 5.5″D x 1.2″H
Weight: 1.8 lbs (0.8 kg)

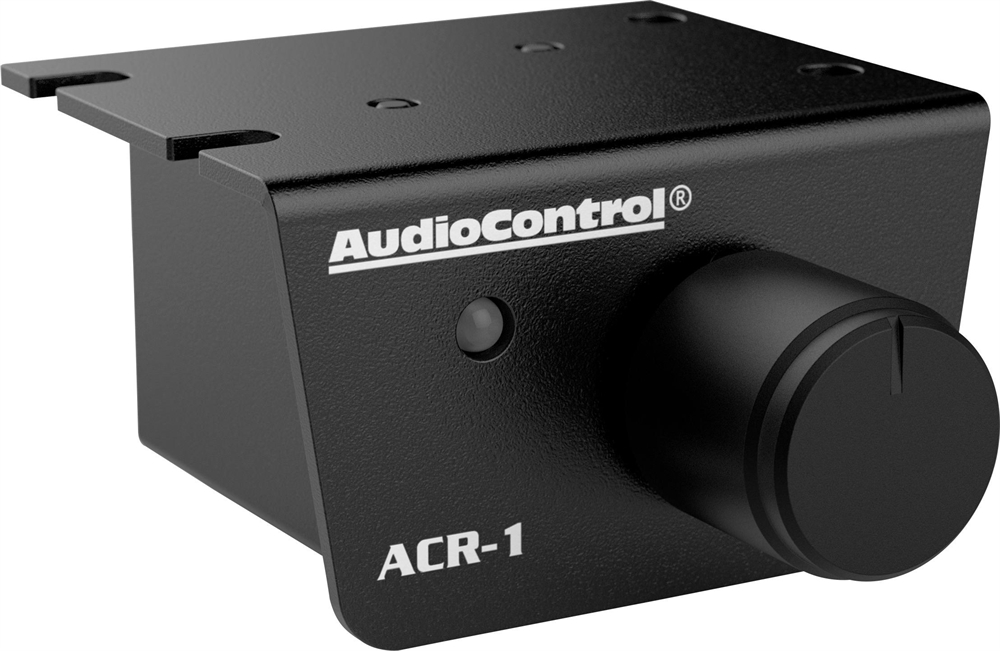

IN THE BOX: The Epicenter, ACR-1 Remote, Power Connector, Manual, Warranty
