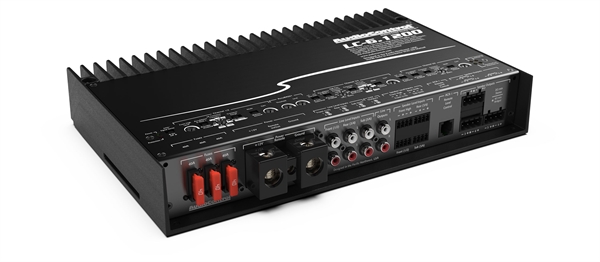

AUDIOCONTROL LC-6.1200 6 KANAL FORSTÆRKER MED ACCUBASS

lc-6.1200
high-power multi-channel amplifier with accubass
Building from the hugely successful LC-4.800 multi-channel amplifier, the LC-6.1200 is surely the most flexible 6 channel amplifier on the market. Featuring eight active speaker level inputs with summing, coupled with an intuitive three-way Linkwitz-Riley crossover network, the LC-6.1200 can be easily integrated with most factory installed source units. The patented AccuBASS® circuit compensates for factory bass roll-off and provides maximum bass performance.

More control and features include our GTO Signal Sense, MILC Source Clip Detection and assignable Remote Level Control. The LC-6.1200 builds on the legacy of audio passion and a focus on user-friendly features, making this a perfect solution based amplifier.

features
Configurable as 6/5/4/3/2 channel amplifier
6 x 200 watts @ 2 ohms
6 x 125 watts @ 4 ohms
400 watts @ 4 ohms bridged
AccuBASS® Processing
MILCTM Maximum Input Level Control (Patent Pending)
GTOTM Signal Sense
3-way Independent Linkwitz-Riley Alignment crossovers
Summable active speaker-level inputs (8 channels) for OEM integration
6 preamp inputs
2 assignable preamp outputs
PFM Subsonic Filter
Optional ACR-1 assignable remote control
Solid One-Piece Aluminum Chassis
specifications
inputs
Preamp Inputs: 6 balanced
Preamp Input Voltage Range: 250 mV – 8 V RMS
Speaker Level Inputs: 8
outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 125 W x 6 RMS
2 Ω – 200 W x 6 RMS
Bridged 4 Ω – 400 W RMS
Preamp Outputs: 2
Maximum Preamp Output: 8.5 V RMS
performance
Frequency Response: 10 Hz – 30 kHz
Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
THD+N: < 0.1%
Minimum Power / Ground Wire Gauge: 3 AWG wire
Fuse Rating: 3 x 40 A
Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz
weights & dimensions
Dimensions: 12″W x 8.0″D x 2.1″H
Weight: 7.2lbs. (3.3kg)
in the box: LC-6.1200, Speaker Connectors, Fuses, Manual, Warranty
