Varenr.: DM-RTA - PRO
Bygges først ved bestilling. Op til 1 måneds levering.
Beløbet hæves som forudbetaling og kan ikke returneres.
14 dages retur ret frasiges derfor også.
Highlights

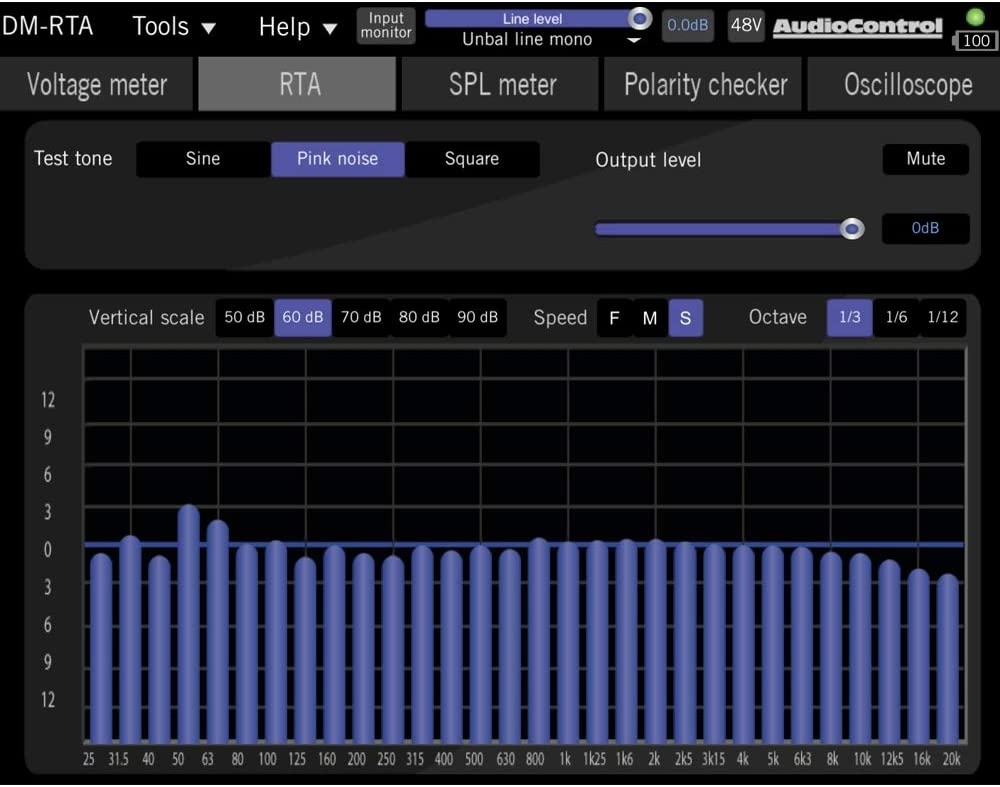

5in1 tool: voltmeter, RTA, SPL meter, polarity checker, oscilloscope
Testing and measuring any signals
Balanced line level inputs and outputs
Unbalanced line level inputs and outputs
Speaker level inputs (for outputs up to 300 watts)
Microphone input with 48V phantom power
Microphone presets for CM-10 (included)
Digital and USB outputs
Connection to PC / Mac, smartphone or tablet
Incl. AC-BT24: Bluetooth connectivity for streaming / programming
Battery operated and compact for mobile use
DM-RTA app available as a free download for Mac / PC, iOS, Android
Incl. various accessories:

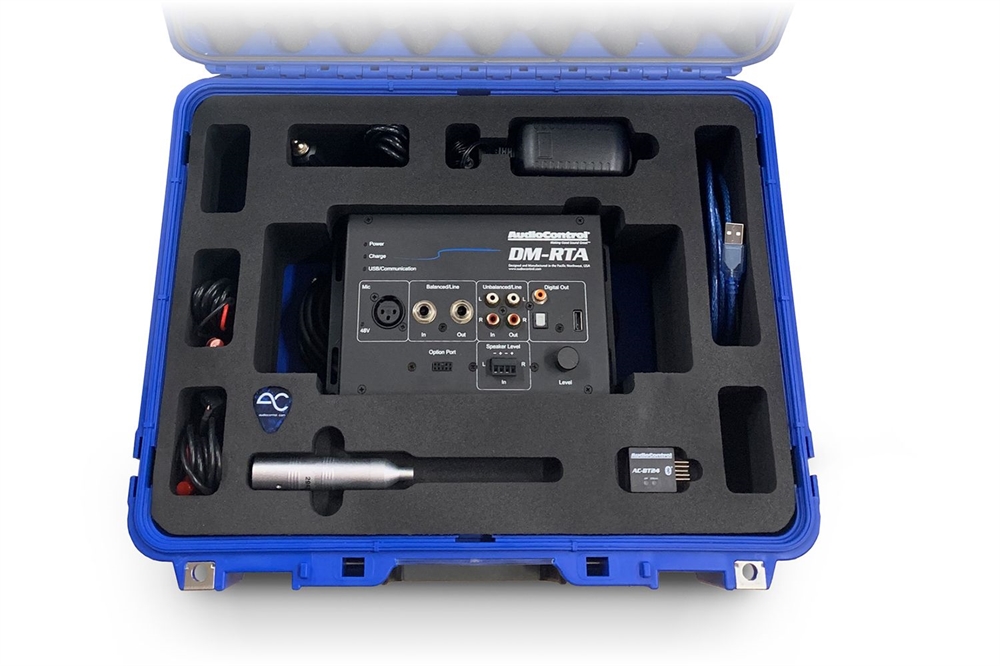

Protective case, blue
12V DC power supply / charging adapter
USB A to A cable / USB A to B cable
Speaker input to spring-loaded test leads cable
RCA input to spring-loaded test leads cable
AudioControl Pick for tuning (looks very similar to a guitar pick)
Technical data
Battery life: ~ 5h
Weight: 1.2kg
Inputs:
1 x Balanced (input impedance 3.24kΩ)
1 x Unbalanced (Input Impedance 3.24kΩ)
1 x microphone (input impedance 10kΩ)
1 x speaker level (input impedance 16.24kΩ)
Max Low Level Input Voltage: 8 Vrms
Max high level input voltage: 30 Vrms
Outputs:
1 x Balanced (Output Impedance: 51Ω)
1 x Unbalanced (Output Impedance: 51Ω)
1 x Coax Digital (output impedance: 75Ω)
1 x Toslink
1 x USB
Max output voltage from the signal generator: 5 Vrms / 7 V peak
Scope of delivery

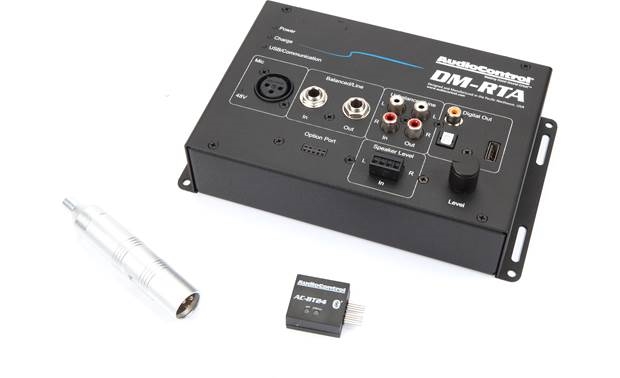

DM-RTA
CM-10 microphone
XLR microphone cable
AC-BT24 Bluetooth Interface
12V DC power supply / charging adapter
USB A to B cable
USB A to A cable
Speaker input to spring-loaded test leads cable
RCA input to spring-loaded test leads cable
AudioControl Pick for tuning
Manufacturer AudioControl
Product Type Real Time Analyzer
Dimensions 20,3 x 12,2 x 6,1 cm
