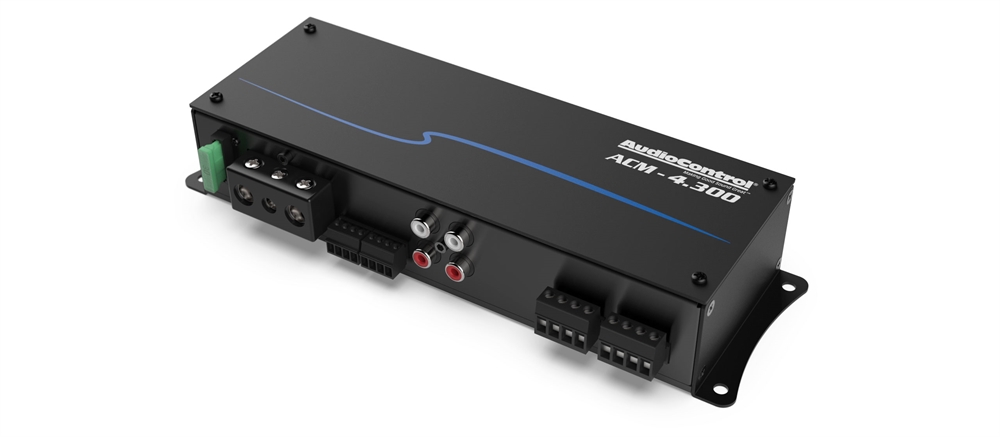

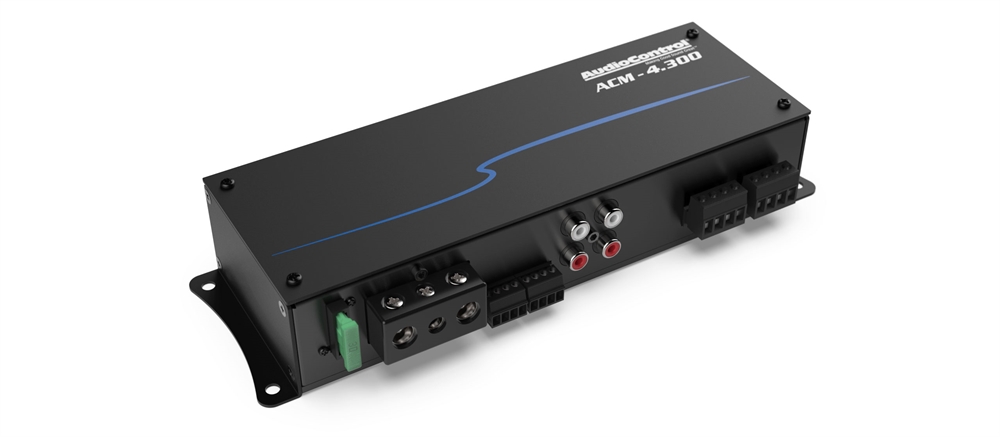

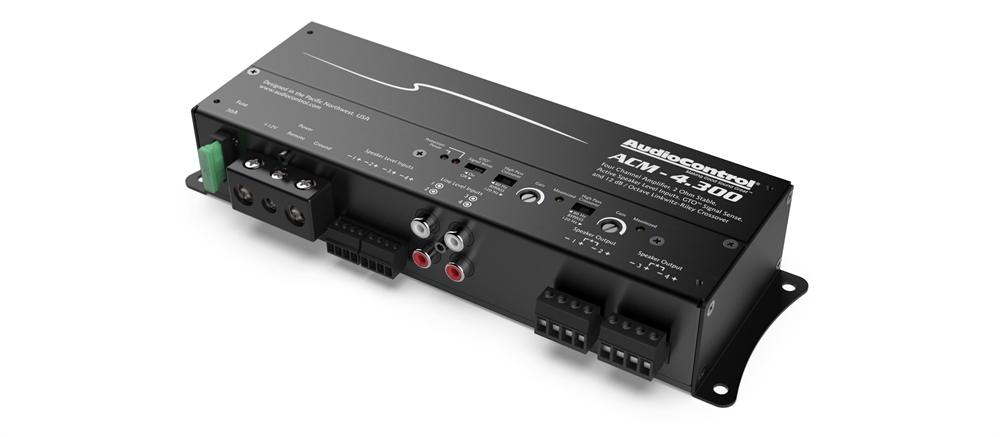

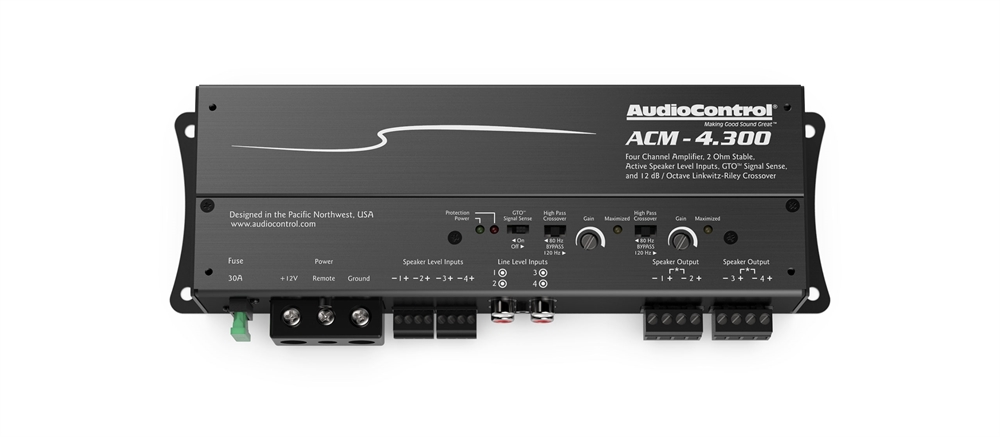

AUDIOCONTROL ACM-4.300 300W 4 KANAL MICRO FORSTÆRKER

ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation.

Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.

features
4 x 75 watts @ 2 ohms
4 x 50 watts @ 4 ohms
150 watts @ 4 ohms bridged
GTOTM Signal Sense
Active speaker-level inputs for OEM integration
RCA Line Inputs
Linkwitz-Riley Crossover
Reversible Cover Plate
specifications
inputs
Preamp Inputs: 4 Balanced
Preamp Input Voltage Range: 500 mV – 6 V RMS
Speaker Level Inputs: 4
outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 50 W x 4 RMS
2 Ω – 75 W x 4 RMS
Bridged 4 Ω – 150 W RMS
performance
Frequency Response: 10 Hz – 22 kHz
Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
THD+N: < 0.01%
Power / Ground Wire Gauge: 10 to 4 AWG wire
Fuse Rating: 1 x 30 A
Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
PFM Subsonic Filter: 32 Hz
weights & dimensions
Dimensions: 9.4″W x 3.0″D x 1.75″H
Weight: 2.2 lbs. (0.98 kg)
in the box: ACM-4.300, Speaker Connectors, Fuse, Manual, Warranty
