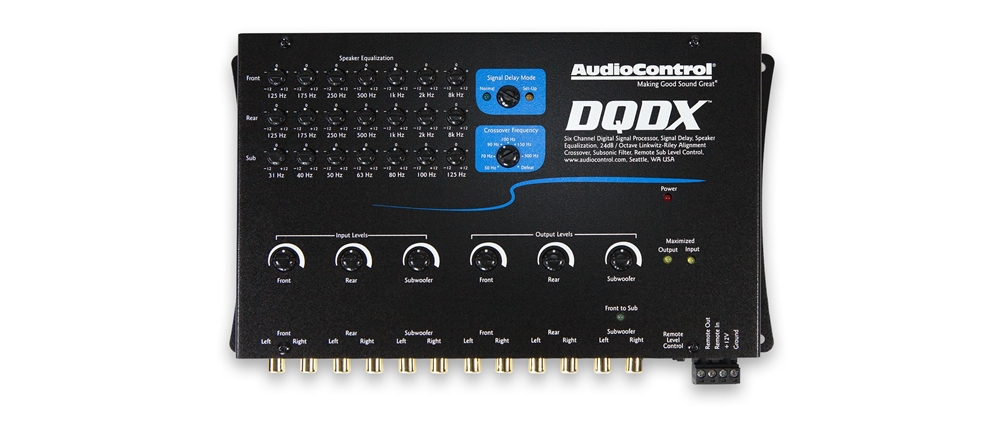

AUDIOCONTROL 6 KANAL processor with eq, crossover and signal delay

dqdx
performance digital signal processor with eq, crossover and signal delay
Putting the driver in perfect acoustical alignment definitely has its challenges in a vehicle. In home audio it is generally pretty easy to just move a speaker forward or backward or to the left or to the right to help make sure you hear both speakers at the same time. In a vehicle, we are typically stuck with the speaker locations that the vehicle manufactures has supplied us with. This usually creates a whole slew if issues when you add amplifier power, new speakers, and subwoofers. This is why signal delay and equalization are so critical. Equalization helps match all your new components together so they sound great and signal delay helps all that great sound arrive at you, the driver at the same time!

Designed for maximum sound quality and enhanced audio performance, the DQDX is the latest AudioControl processor to incorporate Signal Delay. This process corrects for the varying speaker locations in the vehicle.

The AudioControl DQDX lets music enthusiasts truly “take control” of their sound and receive an amazing experience.
features
Free iOS Mobile Tools app with DQ-61 Delay module
User-friendly Signal Delay to control the acoustical alignment between the left and right channels plus the front and subwoofer channels
Individual equalization controls for the front, rear and subwoofer channels for simple yet precise system tuning
Fully adjustable 24dB/Octave Linkwitz-Riley electronic crossover
PFM (Program Frequency Match) Subsonic Filter
Six channels of RCA line level inputs
ACR-3 Dash Control Remote allows for control of the subwoofer level plus processing bypass
Discrete Input and Output level controls with clipping indicators
Remote turn on output provides a 12-volt trigger to turn on your amplifier
Built in Pink Noise for easy Signal Delay and Equalizer tuning and system set-up
specifications
inputs
Preamp Inputs: 3 (6 channels)
Input Impedance: 20kΩ
outputs
Preamp Outputs: 3 (6 channels)
Maximum Output Level: 7.5Vrms
Output Gain: ±12dB
Output Impedance: 150Ω
performance
Total Harmonic Distortion: 0.01%
Frequency Response: 10Hz-22kHz
Equalizer Frequencies (front/rear): 125Hz, 175Hz, 250Hz, 500Hz, 1kHz, 2kHz, 8kHz
Equalizer Frequencies (sub): 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100HZ, 125Hz
PFM Frequency: 20Hz or 30Hz selectable
Crossover Frequency: 50Hz-500Hz selectable
Crossover Type: 24dB/Octave Linkwitz-Riley
Signal Delay Max (Left/Right): 10ms
Signal Delay Max (Front/Sub): 35ms
control
Remote In
12VDC Remote Out (always active when unit is on)
general
Power Supply: High Headroom PWM Switching
Current Draw: 350mA
Recommended Fuse Rating: 2A
weights & dimensions
Dimensions: 9.25”W x 5.75”D x 1.25”H
Weight: 3.0lbs (1.4kg)

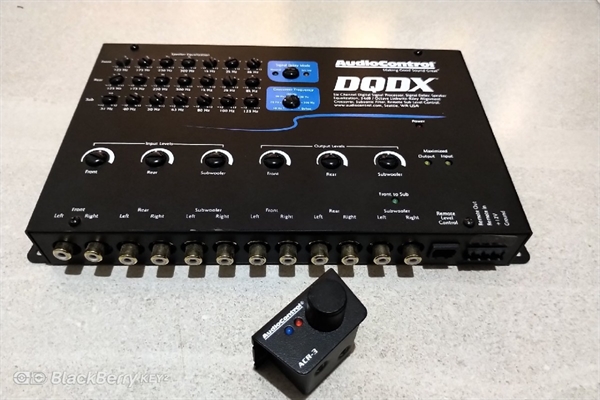

in the box: DQDX, ACR-3 Remote, Power and Speaker Connectors, Manual, Warranty
