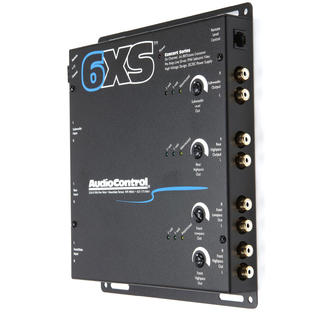

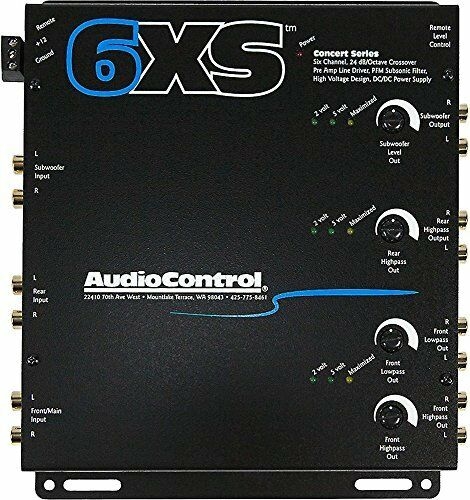

AUDIOCONTROL 3 VEJS ELEKTRONISK DELEFILTER

6xs
6 channel electronic crossover
The 6XS does it all. Sharp 24dB/octave Linkwitz-Riley alignment crossover with remote level control for the bass. Automode™ input switching automatically configures the 6XS for two, four or six channels of input with up to eight channels of output. Includes bass management with the Programmable Frequency Match (PFM) circuit and a high tech PWM power supply for maximum voltage in all conditions.

features
Six Channels in – Eight Channels Out
State-Variable, 24dB per Octave, 2-way Active Crossover
Audiophile Crossover Performance
Output Level Controls
High Voltage Outputs
Low Impedance Line Driver
Remote Subwoofer Level Control(optionel)
PFM Subsonic Filter
Bass Output Control
specifications
inputs
Preamp Inputs: 3 (6 channels)
Input Gain: 12dB (front/rear), 18dB (sub)
Input Impedance: 20kΩ
outputs
Preamp Outputs: 4 (8 channels)
Maximum Output Level: 9.5Vrms / 13V peak
Output Impedance: 150Ω
performance
Total Harmonic Distortion: 0.005%
Frequency Response: 10Hz-100kHz ±1dB
Signal to Noise: 110dB
Crossover Type: 24dB/octave Linkwitz-Riley
Crossover Frequency: 90 Hz from factory (user programmable)
control
Remote In
general
Power Supply: High Headroom PWM
Current Draw: 400mA
Recommended Fuse Rating: 2A
weights & dimensions
Dimensions: 7.25″W x 7.7″D x 1.25″H
Weight: 2.5lbs (1.13kg)
in the box: 6XS, Power Connector, Manual, Warranty
