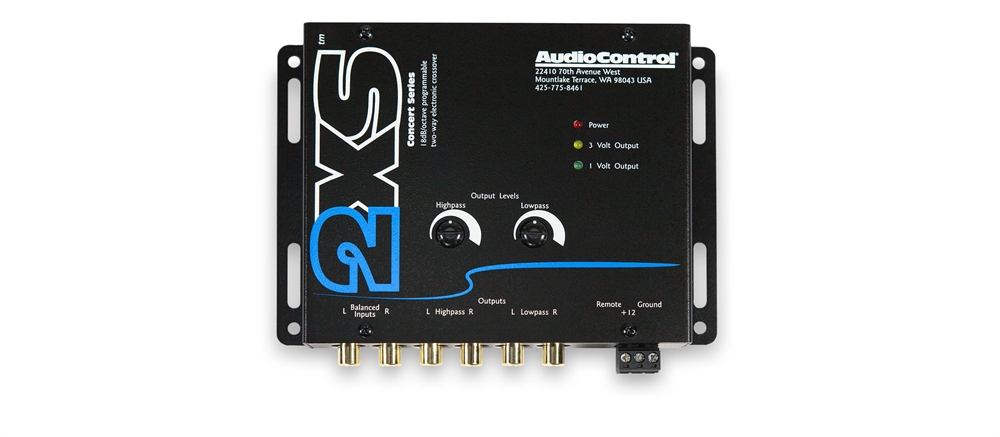

AUDIOCONTROL 2 VEJS ELEKTRONISK DELEFILTER

2xs
2-way electronic crossover
A state-variable, 18dB/octave, 2-way electronic crossover designed with a flexible and accurate module-programmable crossover frequency. Our exclusive Programmable Frequency Match (PFM) subsonic filter provides exceptional bass control. Winner of the coveted CES “Design and Engineering Excellence Award.”

features
Two channel operation
Precise 2-way 18dB/octave, programmable electronic crossover with a plug-in module
Programmable Frequency Match (PFM) subsonic filter
Balanced inputs
On-board line driver for signal gain
Output level controls
Selectable ground isolation
Optimum signal output indicator LEDs
The finest quality – designed and built in America
specifications
inputs
Preamp Inputs: 1 (2 channels)
outputs
Preamp Outputs: 1 (2 channels)
Maximum Output Level: 9.5Vrms
performance
Total Harmonic Distortion: 0.005%
Frequency Response: 15Hz-20kHz ±1dB
Signal to Noise: 115dB at full output
Crossover Type: 18dB/octave
Crossover Frequency: 90Hz from factory (user programmable)
control
Remote In
general
Power Supply: Transformer Isolated PWM
Current Draw: 150mA
Recommended Fuse Rating: 1A
weights & dimensions
Dimensions: 5.5″W x 4.65″D x 1.15″H
Weight: 2.0lbs (0.91kg)
in the box: 2XS, Power Connector, Manual, Warranty
