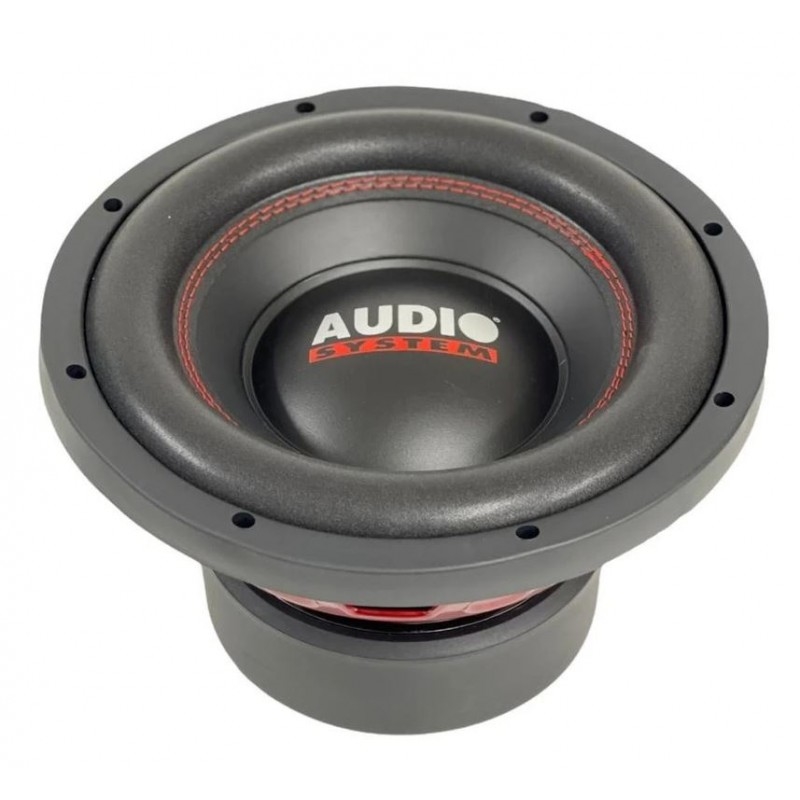

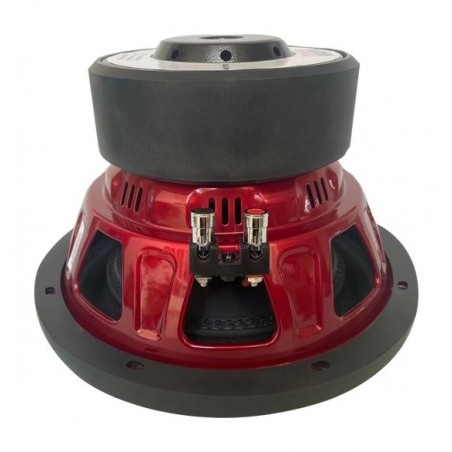

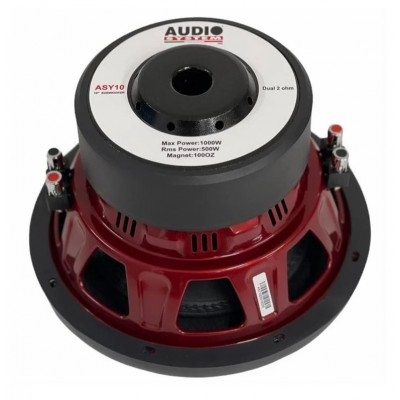

AUDIO SYSTEM ASY-10

ASY-10
The new subwoofers ASY-10 starting from the basket are designed exclusively for SPL competitions. In order to obtain the best performance on each race circuit, we have used the best materials and all our experience, to achieve maximum efficiency and power handling, obtaining the maximum SPL in every competition. In order to guarantee a constant and uniform flow, it is equipped with high magnetic permeability plates. The oversized magnet provides perfect control even in very high hiking conditions. Basket and motor are coupled and damped through a special epoxy glue.
Subwoofer Size
10"
Sensitivity
83,8dB
Impedance
Dual 2 Ohm
DC Resistance (Re)
1,9 Ohm
Resonance Frequency (Fs)
38,8Hz
Power Handling (RMS)
2 x 500w
Peak Dynamic Power Handling (Peak)
2 x 1000w
Xmax
3,2cm
Mounting Depth
146mm
Mounting Diameter
228mm
