AUDI ISO/MINI-ISO CAN-BUS KABEL TIL CX401 OG CAN-UNI 01 ( TIL 2/4 KANALS AKTIVE SYSTEMER)

CAN Bus

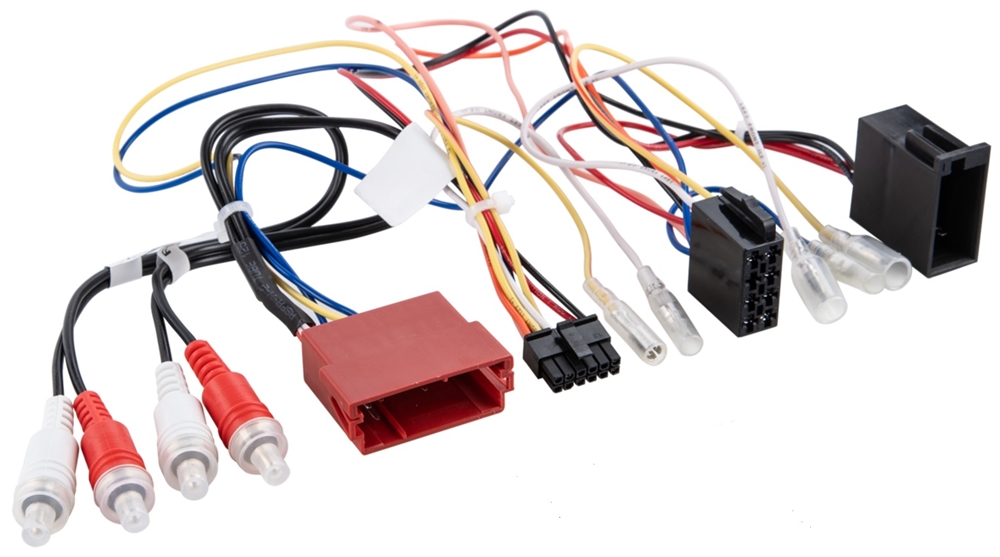

connector: ISO / Mini ISO > item: 42cx23-rca
connector: OEM amplified system 2 channel / 4 channel > RCA(m) front/rear
blue: +12V amp remote
vehicles with Blaupunkt / Matsushita / Grundig Chorus II / Concert II / Symphony II 1-DIN OEM HU with 2 rotary knobs

retrofit HU with pre amp output more than 3V
vehicles with amplifier switch-off noise test additionally:
Noise filter NF GND decouple RCA > item: 30.5000-01
Vehicle application:

Audi A2 (8Z) 11/1999 - 07/2005
Audi A3 (8L) 08/2000 - 06/2003
Audi A3 (8P) 07/2003 - 05-2005
Audi A4 (B6/B7) 11/2000 - 02/2009
Audi A6 (4B/C5) 05/2001 - 03/2006
Audi TT (8N) 09/1998 - 07/2006

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse gear signal 1,5A max.
yellow/green yellow/red: speed pulse signal

SWC

OEM amplified system 2 channel / 4 channel
