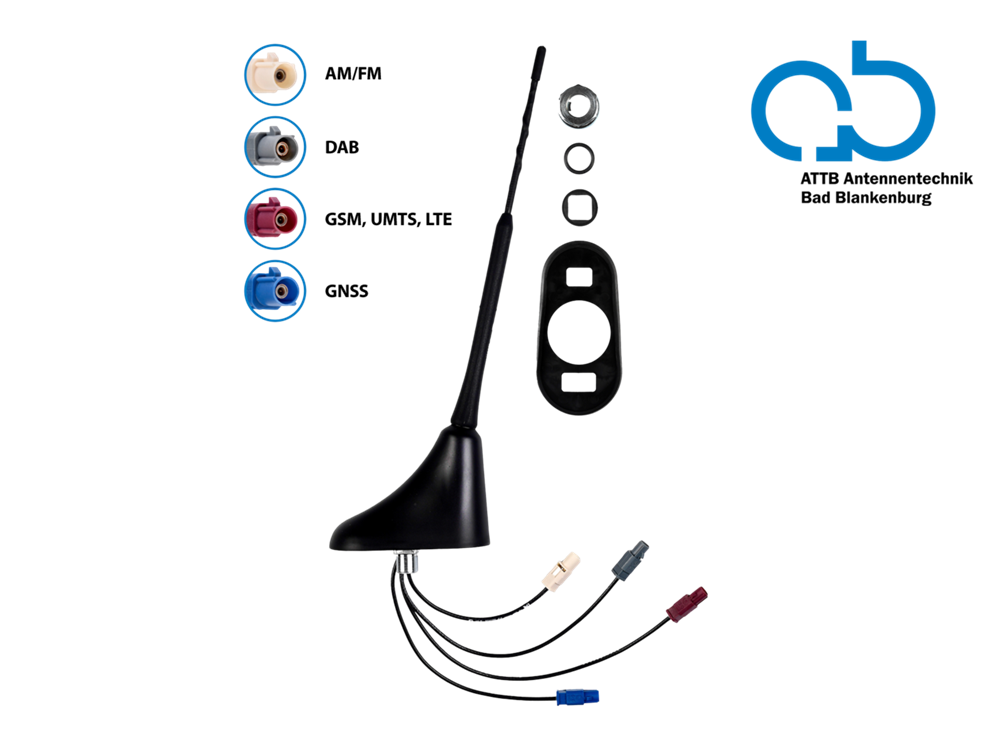

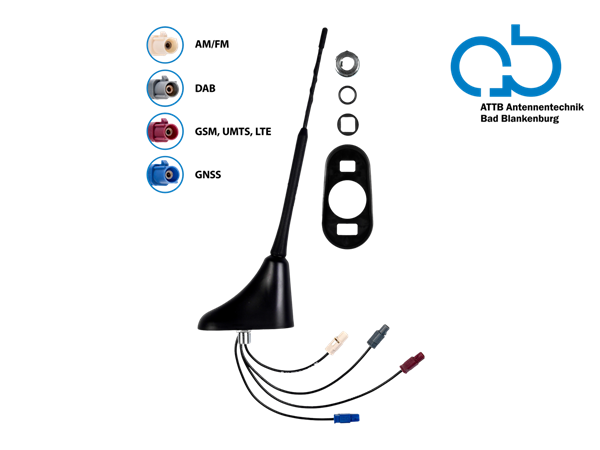

ATTB MULTI TAG ANTENNE 76° M/FAKRA HAN (AM, FM, DAB, 5G, GNSS)TIL PHANTOM POWER

ATTB "Made in Germany" 3799.02
Roof antenna for mobile phone and radio reception

Product features:

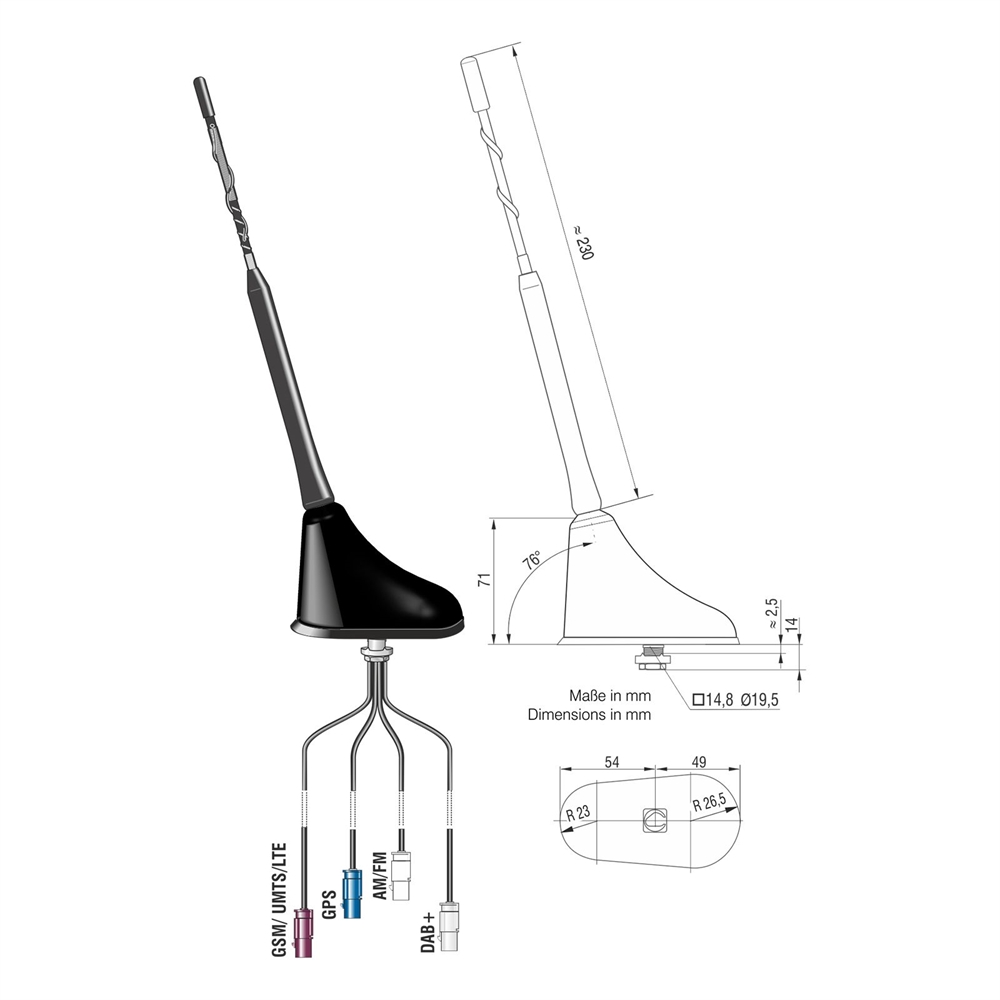

Low-noise antenna rod: 230 mm
Active GPS antenna: Phantom power supply
Cable type: RG 174
Services: 2G / 3G / 4G / 5G / AM/FM / DAB / GNSS / GPS / GSM / LTE / UMTS
Connectors: Fakra D(m) / Fakra G(m) / Fakra B(m) / Fakra C(m)

Connections:
AM/FM: Fakra B(m) white RG174 / L=113 mm
DAB+: Fakra G(m) grex RG174 / L=200 mm
GNSS: Fakra C(m) blue RG174 / L=165 mm
2G/3G/4G/5G: Fakra D(m) bordeaux RG174 / L=235 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz
DAB+ BIII: 174 MHz - 230 MHz
DAB+ L: 1452 MHz - 1492 MHz
GNSS: 1575,42 MHz
2G/3G/4G/5G: 698 MHz - 960 MHz / 1710 MHz - 1880 MHz / 1900 MHz - 2200 MHz / 2500 MHz - 3800 MHz

Gain (dB):
AM: 0 db +/ -2 dB
FM: 5 dB +/- 1 dB
DAB+ BIII: 6 dB +/- 1 dB
GNSS: 28 dB +/- 3 dB

Benefit (dBi):
DAB+ BIII: 2 dBi
2G/3G/4G/5G: 0 dBi / 2dBi

Decoupling (dB):
AM: >35 dB
FM: >35 dB
DAB+ BIII: >35 dB
GNSS: <35 dB
2G/3G/4G/5G: >35 dB

Power supply:
AM: +12V external / phantom power supply
FM: + 12V external / phantom power supply
DAB+: +12V external / phantom power supply
GNNS: +3V - +5,5V phantom power supply

Power consumption:
AM: 20 mA > 45 mA max.
FM: 20 mA > 45 mA max.
DAB+ BIII: 20 mA > 45 mA max.
DAB+ L: 20 mA > 45 mA
GNSS: 15 mA > 40 mA

Power:
2G/3G/4G/5G: 4 Watt max.

Impedance:
AM/FM: 50 Ohm
DAB+: 50 Ohm
GNSS: 50 Ohm
2G/3G/4G/5G: 50 Ohm

VSWR:
AM: <2,0:1
FM: <2,0:1
DAB+ BIII: <2,0:1
GNSS: <1,5:1
2G/3G/4G/5G: <2,5:1 / 3,0:1
