ATTB DAB AKTIV RUDE ANTENNE M/SMB HUN

ATTB "Made in Germany" 4573.01

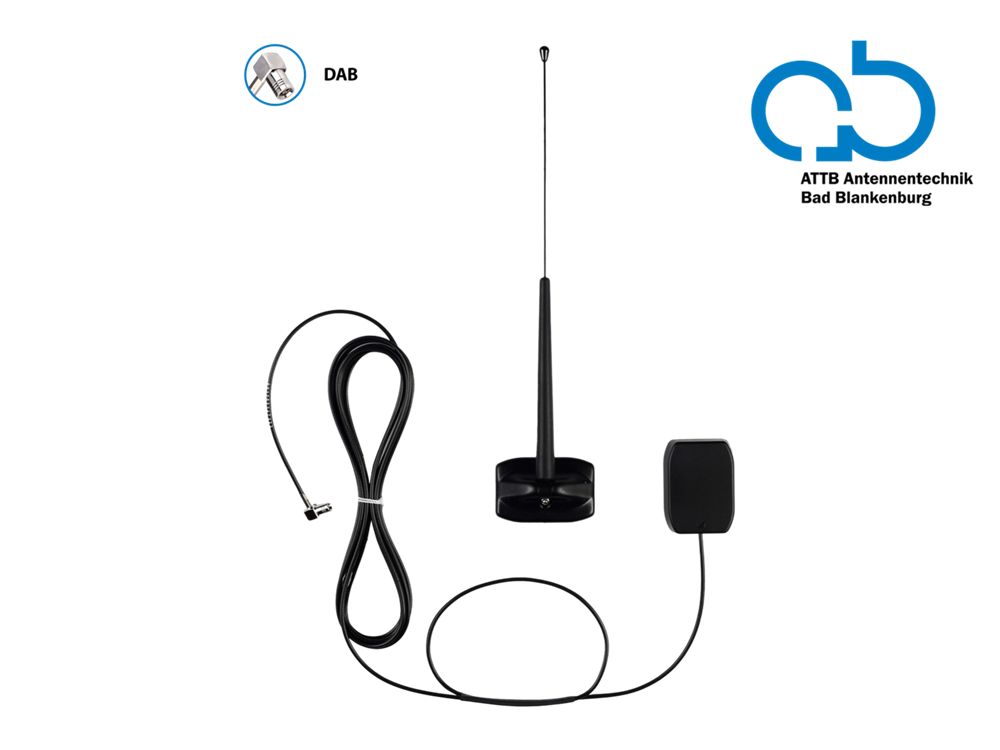

On-glass antenna for radio reception
On-glass mounting on all vehicles, especially on campers, motorhomes, caravan and commercial vehicles

Product features:
Optimised reception properties: antenna rod
Concealed cable routing
Inclination: 0° > 180°
Adjustable inclination range: hexagon head screws

Reception Mode:
DAB/DAB+

Installation:

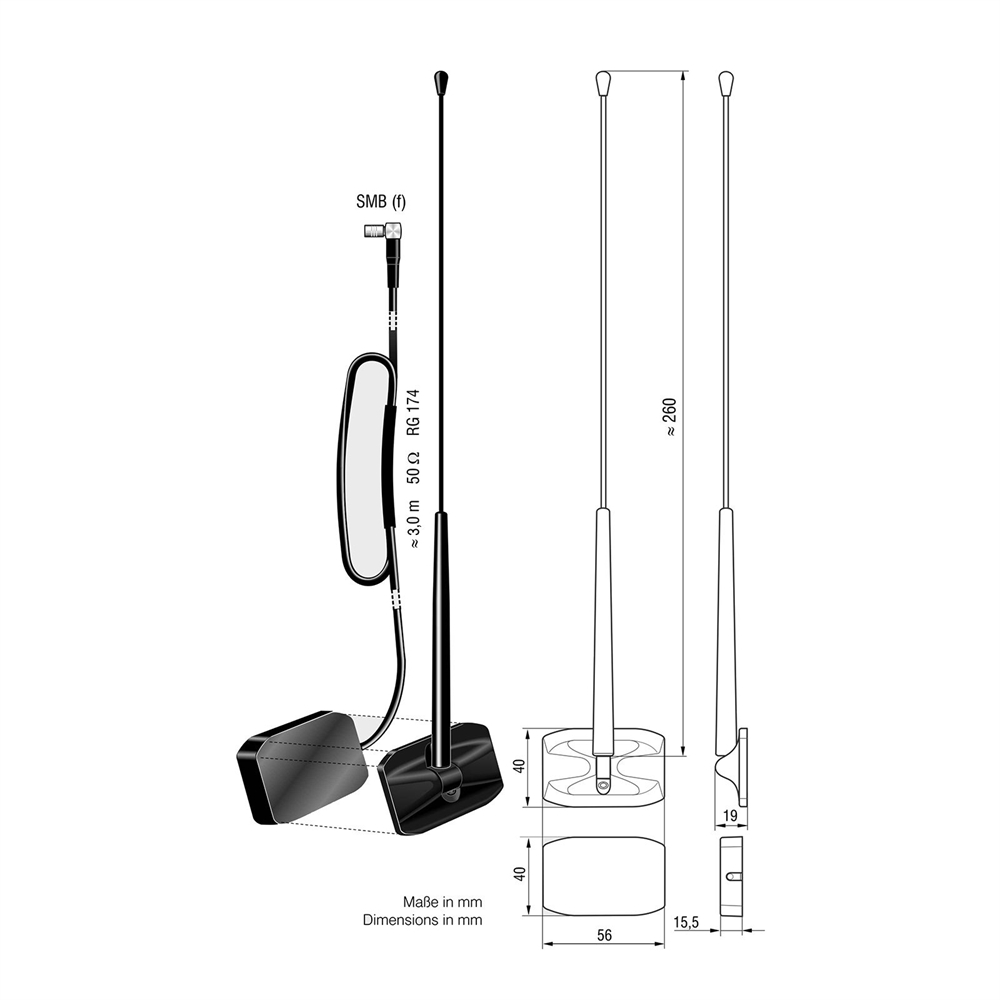

on-glass with rot L = 26 cm

Connections:
DAB/DAB+: SMB(f) / RG174 / L = 300 cm

Frequency range:
DAB/DAB+ BIII: 174 MHz - 230 MHz
DAB/DAB+ L: 1452 MHz - 1492 MHz

Gain (dB):
DAB/DAB+ BIII: 15 dB
DAB/DAB+ L: 0 dB

Power supply:
DAB/DAB+ BIII: +12V phantom power

Power consumption:.
DAB/DAB+ BIII: 20 mA max.

Impedance:
DAB/DAB+ BIII: 50 Ohm

VSWR:
DAB+ BIII: <2,0:1
DAB+ L: d<1,5:1
