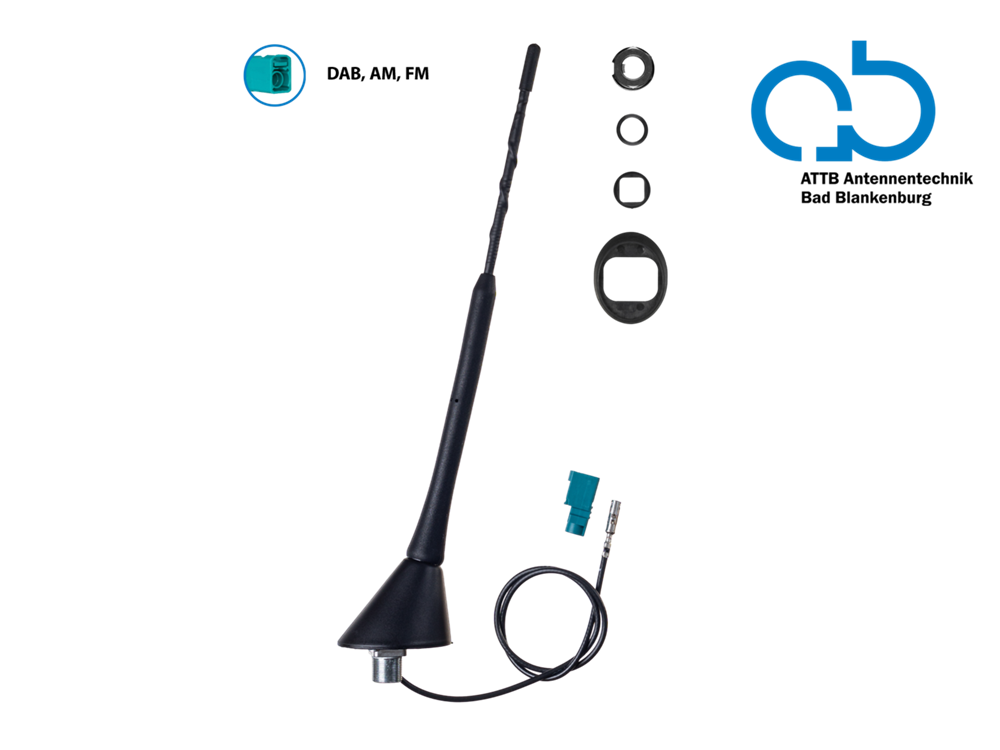

ATTB AM/FM TAG ANTENNE 76° M/FAKRA HUN (DAB+ READY)

ATTB "Made in Germany" 2116.01
Roof antenna for radio reception

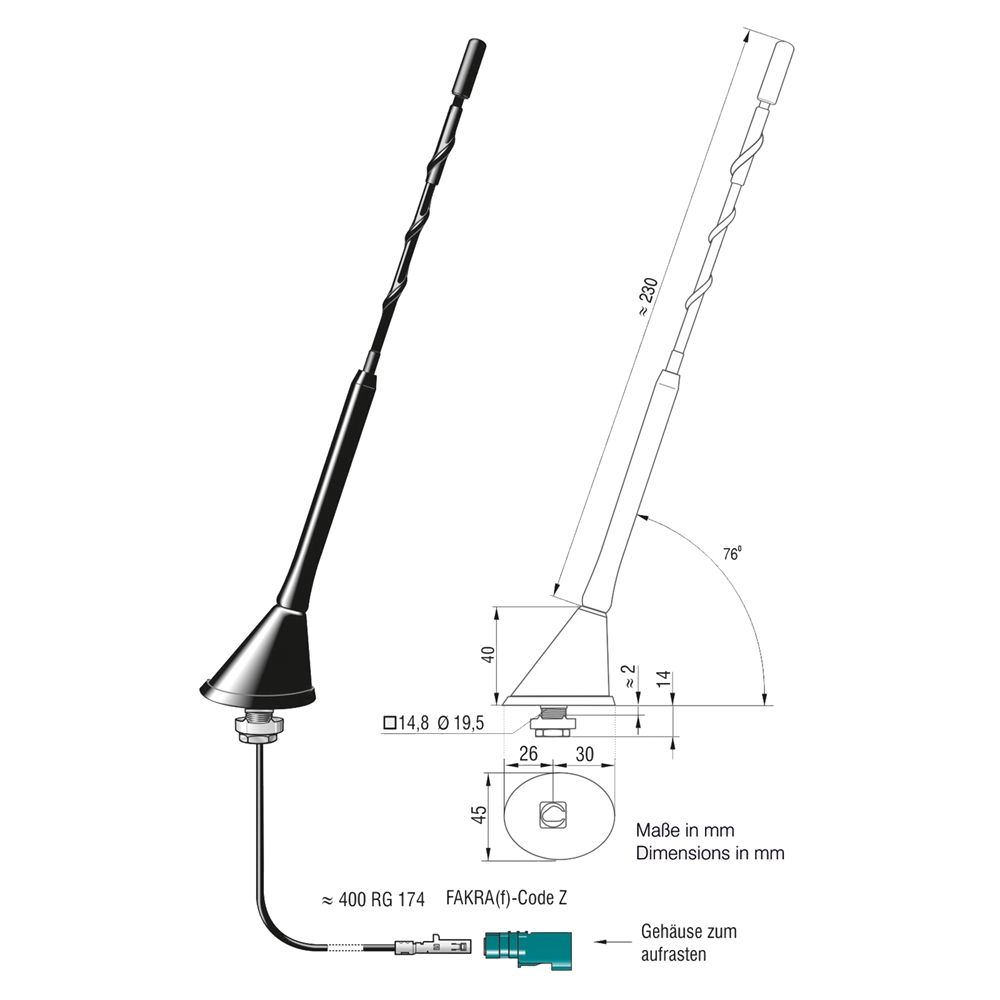

Product features:
Low-noise antenna rod: 230 mm
Low installation depth: +/- 15 mm
Rod inclination: 76°
Cable type: RG 174
Services: AM/FM / DAB+
Connectors: Fakra Z(f)

Connections:
AM/FM: Fakra Z(f) water blue RG174 / L=400 mm

Frequency range:
AM: 150 kHz - 1600 kHz
FM: 87,5 MHz - 108 MHz
DAB+ B III: 174 MHz - 240 MHz
DAB+ L: 1452 MHz - 1492 MHz

Benefit (dBi):
FM: -2 dBi
DAB+ B III: 0 dBi
DAB+ L: 2 dBi

Impedance:
AM/FM: 50 Ohm

VSWR:
DAB+ BIII: <2,0:1
DAB+ L: <2,0:1
