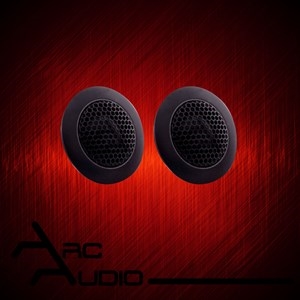

ARC AUDIO X2 1.0

The new X2 Series speakers from ARC Audio combine new features with real-world feedback from retailers and consumers to produce a line of OEM standardized direct fit upgrade solutions with amazing sound quality, awesome performance and incredible value. With nine brand new models, there is an X2 speaker for almost every application. Design and Performance Features

This larger tweeter includes a tuned rear chamber that enhances upper midrange response creating a smooth and elegant but robustly durable design for all types of music. The low resonant frequency of the X2 tweeters in the X2 component systems system improves imaging when the tweeters are mounting on the dash, in sail-panels or A-pillars. The passive crossover networks included with all X2 component systems include second-order -12 dB/Octave filters to improve imaging and soundstage characteristics while hand matched with high-quality polypropylene capacitors for on-board tweeter crossover on each tweeter. These premium caps deliver improved high-frequency response and a much smoother transition between the tweeter and midrange with predictable, long-term reliability.

An important area of focus during the development of the X2 Series was to ensure that these efficient drivers would work well at head unit power levels and when connected to amplifiers like the X2 450.4, The KS300.4 or the amazing coming soon new DSP-equipped PS8-50. Strong magnetic fields, low-mass cones and compliant suspensions ensure excellent efficiency while large motor assemblies with large-diameter voice coils ensure that physical power handling is under control.

Taking additional steps in improving the reliability and long-term performance of the X2 speaker line all X2 speakers were tested for power handling using 8 hours of playback using the RS-426A modified pink noise test signal program. However, in our case after this power test is completed and passed we further this testing by containing to double the power after each successful power test till we find the true musical failure point of each driver. This process results in an extremely durable and thermally reliable speaker that greatly improves the thermal reliability and long-term performance of the driver for years to come in the vehicle.

Sold In Pairs Only
Designed And Engineered In The USA
Stand Alone Tweeter Design
X2 Series Speakers Are Only Available Thru Authorized ARC Audio Retailers And Exclusively Online At WWW.ARCAUDIO.COM, The Only Place Online To Buy ARC Audio Authorized With An Authentic ARC Audio Warranty
High-End Audiophile Grade Polypropylene Crossover Filter
SPECIFICATIONS
X2 Series Speaker Manual
COMING SOON
Speaker Size
Tweeters
Speaker Type
Stand Alone Tweeter w/crossover
Power Handling (Peak)
80 Watts
Power Handling (RMS)
40 Watts
Frequency Response
1300Hz - 20kHz
Sensitivity
93dB
Impedance
4 ohms
Tweeter Diameter
27mm
Tweeter Dome Material
Wool Damped Silk Fiber27mm Silk Dome Tweeter
