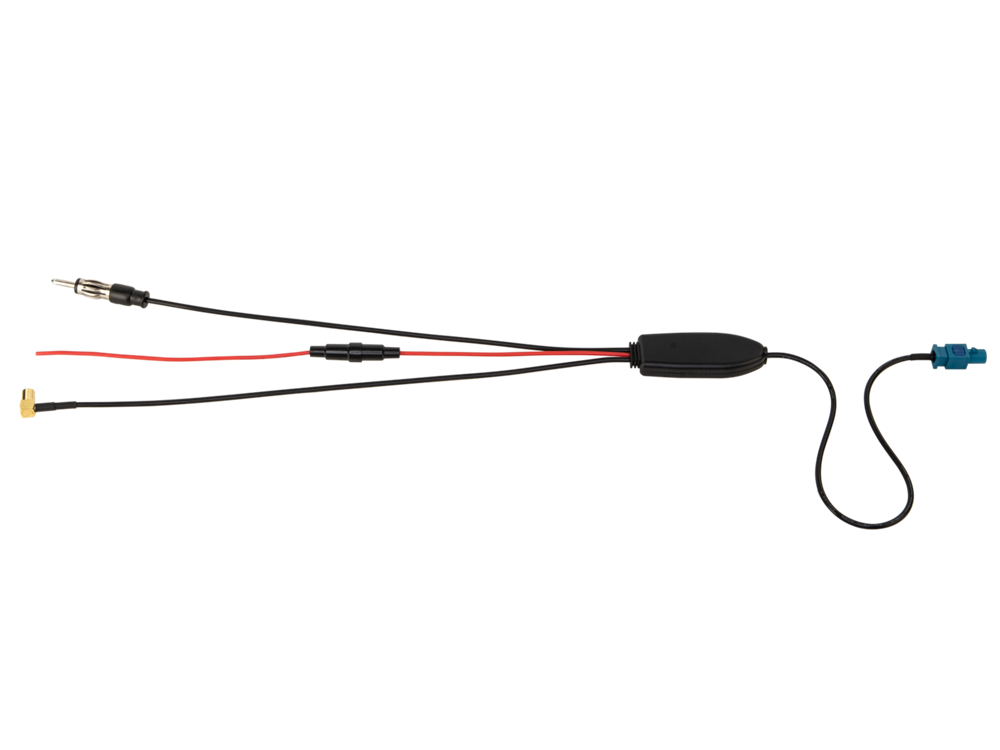

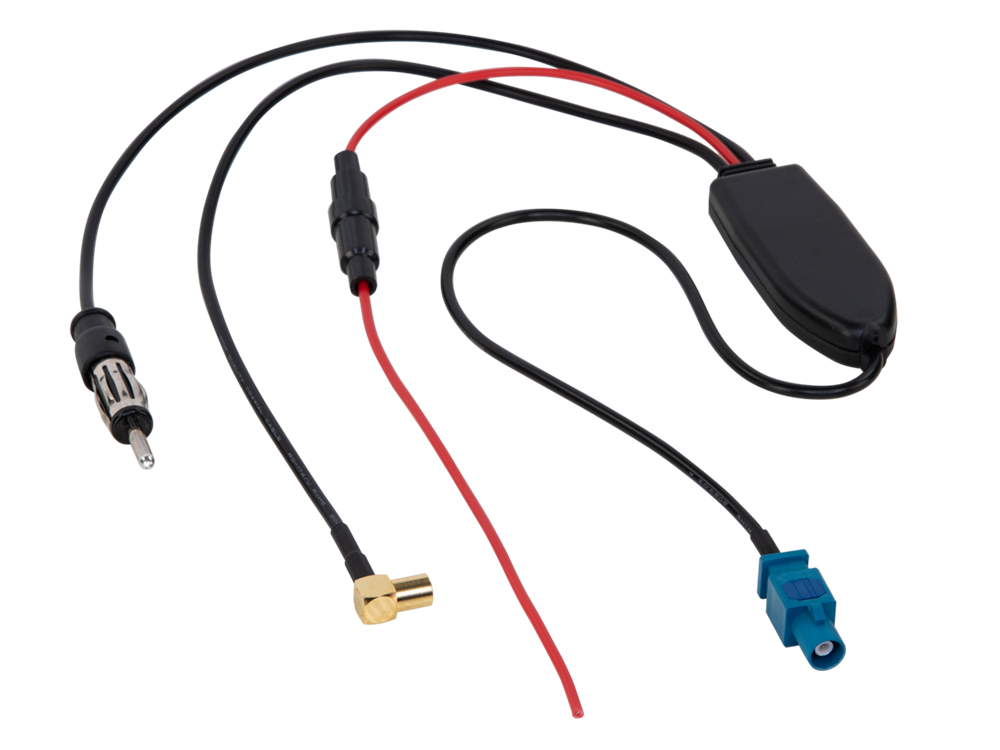

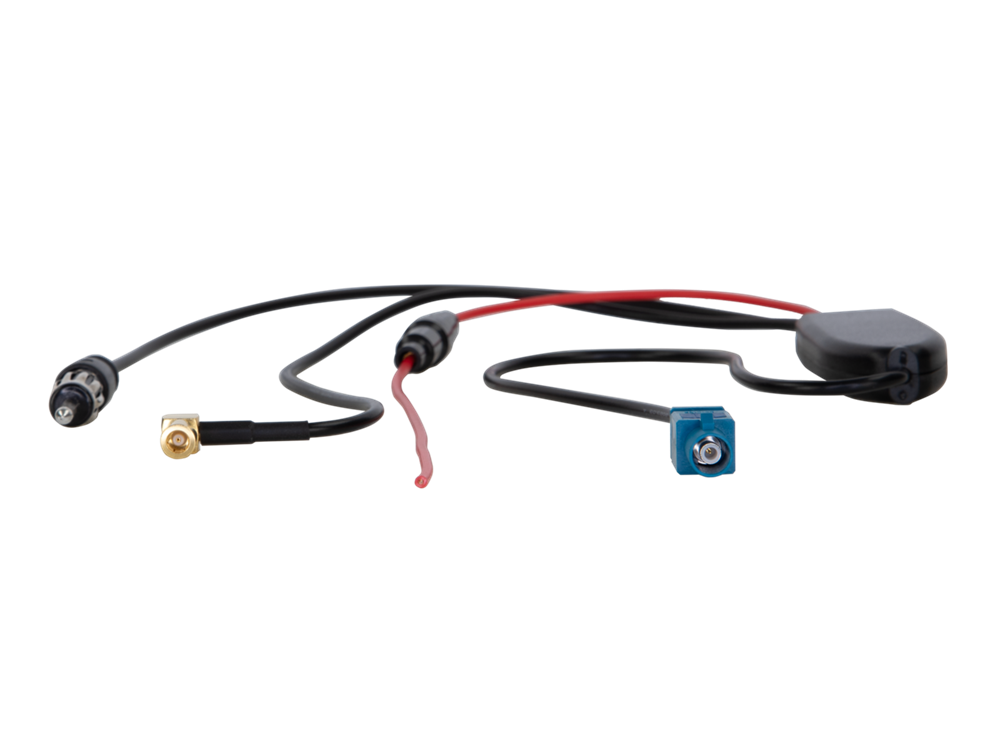

ANTENNE SPLITTER DAB/DAB+ TIL ALMINDELIGE ANTENNER

Splitter den originale antenne til både antenne og dab/dab+ antenne. Bruges til almindelige antennesystemer

Fakra til Din han og smb hun

DAB+ antenna splitter forAM/FM DAB+ ready antennas
DAB+ reception for antenna systems without antenna amplifier passive

Note:

connector AN/FM: Fakra Z(m) > DIN(m)
connechtor DAB+: SMB(f)

red: +12V antenna remote

In case of reception problems:

check antenna cable and antenna adapter
check +12V antenna remote

check vehicle for faults due to retrofit LED lighting
check vehicle for faults due to retrofit voltage converter / power supply units / USB charging adapter
check vehicle for faults due to retrofit digital power amplifiers

Reception Mode:
AM/FM
DAB+

Installation:
inside vehicle

Dimensions:
L = 6,96 cm / B = 2,49 cm / H = 1,04 cm

Connections:
AN/FM in: Fakra Z(f) / RG174 / L=30 cm
DAB+ connector: SMB(f) / RG174 / L=30 cm
AM/FM connector: DIN(m) / RG174 / L=30 cm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz
DAB+: 174 MHz - 240 MHz

Benefit (dB):
AM/FM: 10dB
DAB+: 20dB

Power supply:
AM/FM
DAB+: +12V external

Power consumption:
AM/FM
DAB+: 28mA max.

Fuse:
500mA
