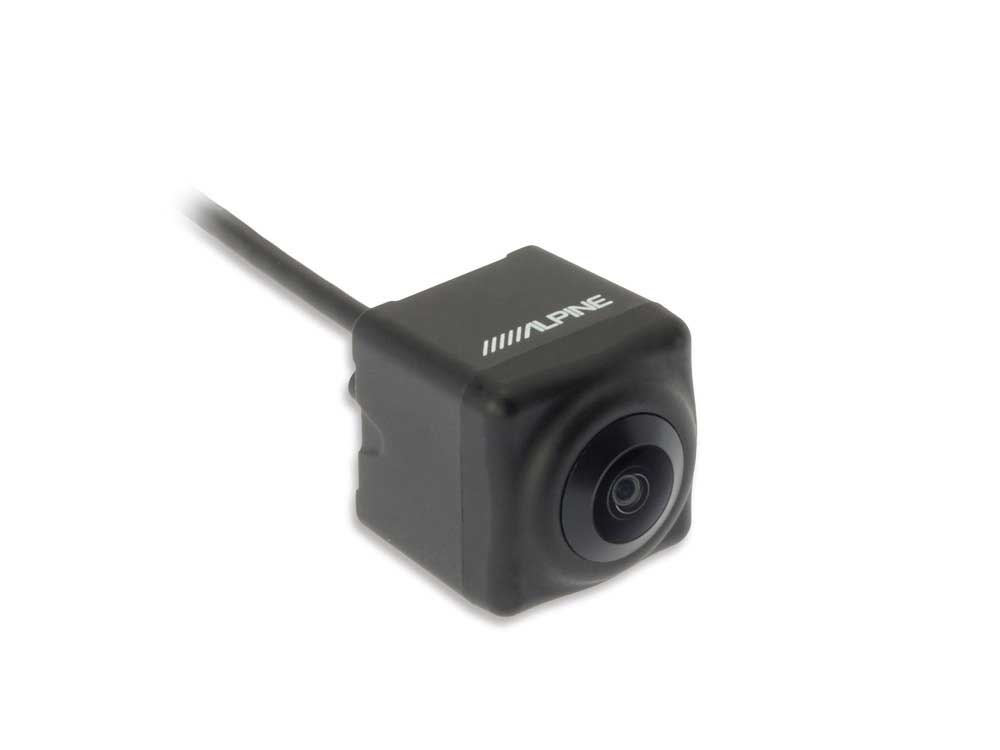

ALPINE HCE-C2600FD HDR MULTI VIEW FRONT KAMERA DIRECT POWER

FEATURES
General
High Dynamic Range (HDR) Frontview Image
Video Signal (NTSC) Output
Multi View Angle Selection: Panorama View [Panorama], Ground View [Top], Corner View [Corner]
Camera
Normal Image Output
Colour CMOS Image Sensor
Automatic Exposure Adjustment
Automatic White Balance Adjustment
Internal Synchronization
SPECIFICATIONS
Dimensions
Camera: 23.6 x 23.6 x 26.1mm (excluding projection on the rear)

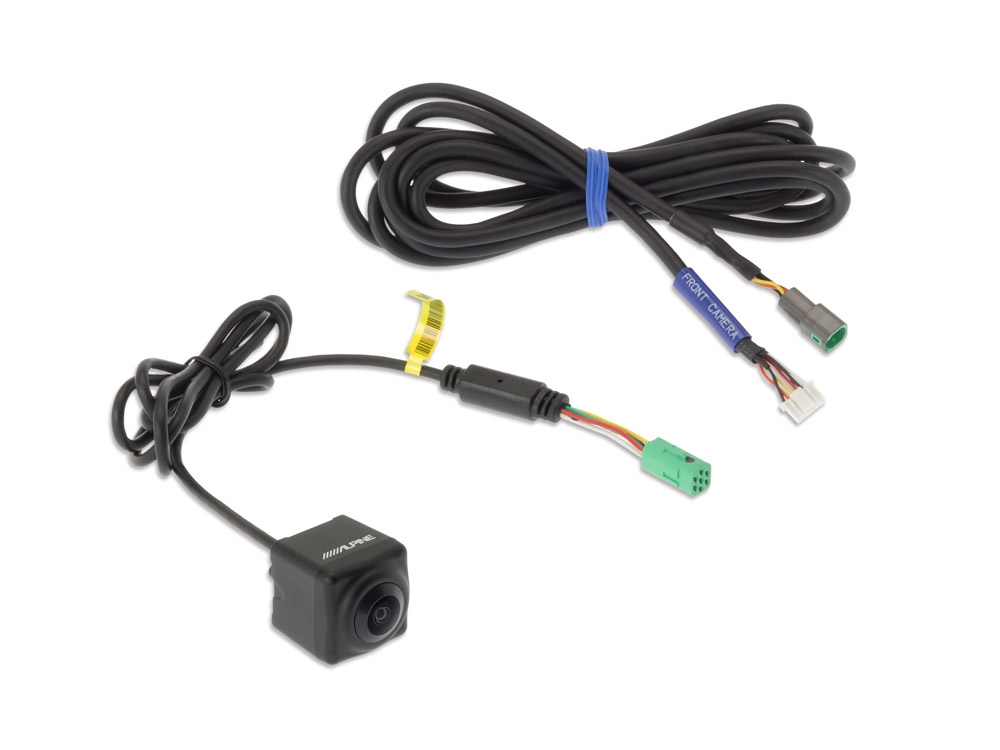

Camera Cable Length: 1m
Camera Extension Cable Length: 3m
General
Power Requirement: 6.0V DC (5.0 to 9.0VDC allowable)
Ground Type: Negative Ground
Max. Power Consumption: 1.2W (6.0V)
Camera
Output Image: Normal image, CVBS (NTSC Video signal), for 16:9 wide-screen
Image Output Impedance: 75 Ohms (1Vp-p)
Image Sensor: 1/4" Type Color CMOS Image Sensor, Aspect Ratio 16:9
Effective Number of Pixels: 1280 (horizontal) x 720 (vertical) approximately 1.2 Mega pixels
Lens: Focal Length: f=1.27mm
Lens: Brightness: F=1:1.8
Angle of Field: Horizontal = 180° , Vertical = 70°
S/N Ratio: 41 dB or more
Resolution (Horizontal. Center Area): 330 TV Lines
Operating Temperature: -30°C - +70°C
Illumination Range: Approximatly 1.5Lx to 100kLx
Weight: 41g (including cable but not including bracket and screw)
