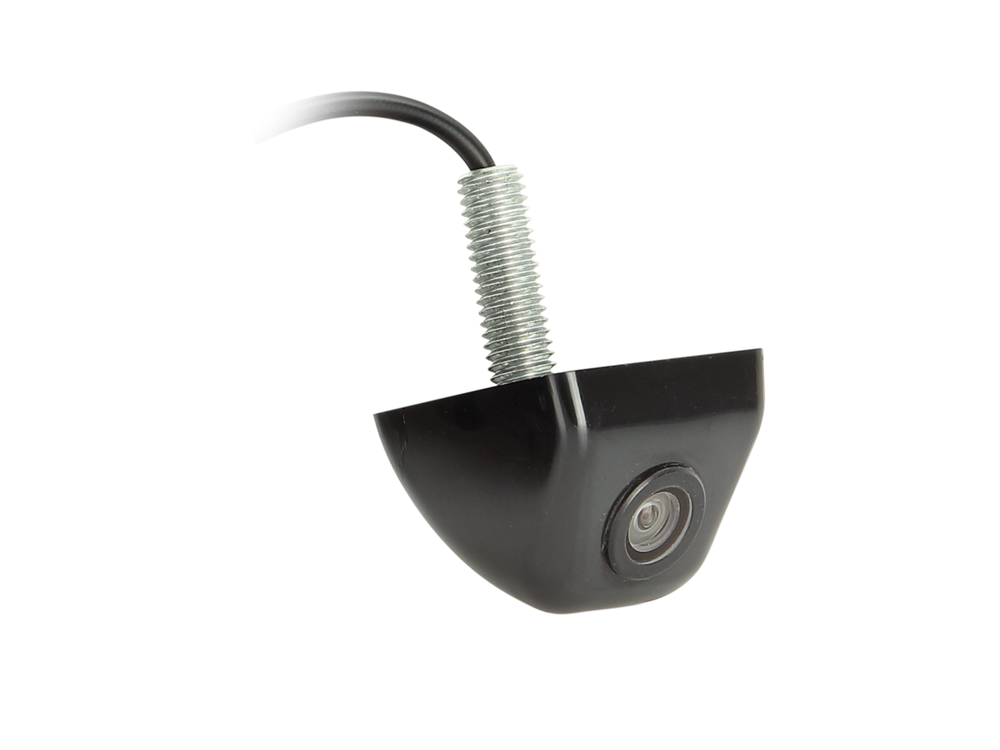

ACV UNIVERSAL UNDERBYGNINGS KAMERA

Rear view camera universal

Design: foursquared
Installation: sub-construction

with guiding lines and mirror function

Note:

all acv cameras are suitable for +12V continuous operation

camera operating voltage: +3V
connection without voltage converter damages the camera
connection:
red +12V switched load-stable (fused)
black ground car body direct

Product characteristic:

Design: plastic
Color: black
Extras: guiding lines and mirror function via jumper
Image sensor: 1/4" CMOS
TV system: NTSC
Effective pixels: 682 x 496
Lens: 1,9mm / F 2.0
Min.Lux: 0.3 Lux
Resolution: 480 TV lines
Lens angle: 170°
View angle: horizontal 120° vertical 85° + 5°
IP Rating: IP 68
Terminal: 4-pin mini-plug ( male ) 5,2 mm
Power supply: 12Volt DC + 10%
Current consumption: 90mA
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 80°C
Measurements: L / B / H - 26mm / 29mm / 21mm

Pigtail at the camera:

1 Meter cable with 4-pin mini plug (male) 5,2 mm incl. 2 jumpers

6,5 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
4-pin mini plug (female) 10 mm and plug (male) 5,2 mm

0,2 Meter power wire harness incl. fuse and video connector (RCA)
