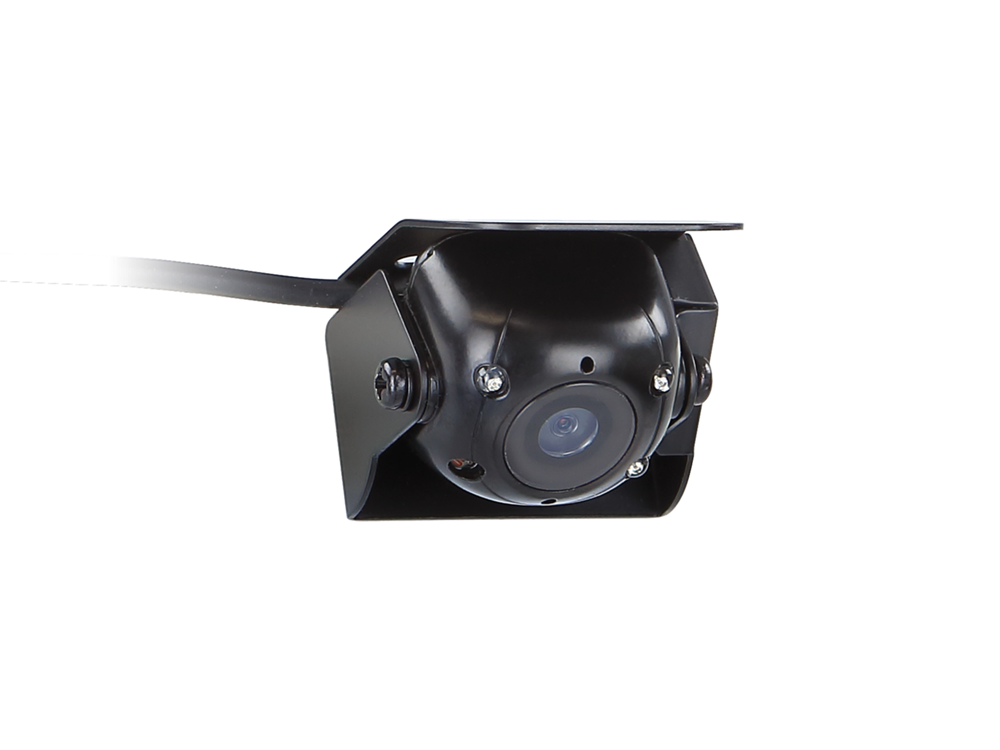

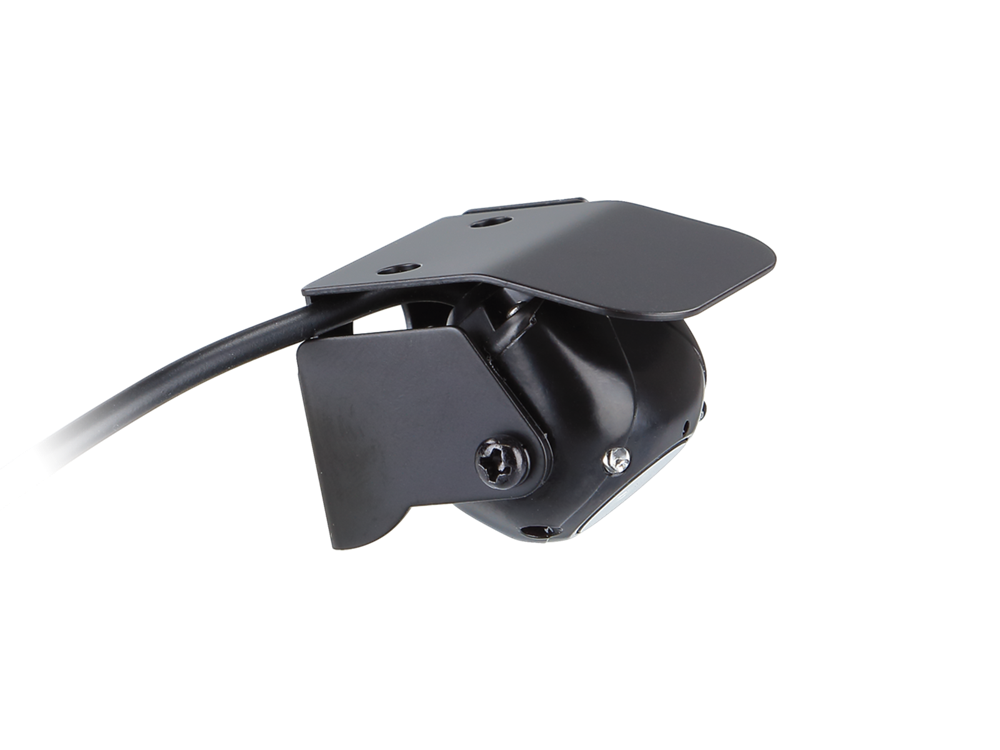

Rear view camera universal
Design: foursquared
Installation: build-up-construction
with horizontal and vertical mirror function
with night view function
Note:
all acv cameras are suitable for +12V continuous operation
camera operating voltage: +3V
connection without voltage converter damages the camera
connection:
red +12V switched load-stable (fused)
black ground car body direct
Product characteristic:
Design: metal
Color: black
Extras: guiding lines and mirror function via jumper / night view function
Image sensor: 1/4" CMOS
TV system: NTSC
Effective pixels: 720 x 576
Lens: 1,9mm / F 2.0
Min.Lux: 0 Lux with activ night view
Resolution: 420 TV lines
Lens angle: 140°
View angle: horizontal 115° vertical 80° + 5°
IP Rating: IP 68
Terminal: 4-pin mini-plug ( male ) 5,2 mm
Power supply: 12Volt DC + 10%
Current consumption: 60mA with active night view function
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 80°C
Measurements: L / B / H - 29mm / 22mm / 24mm

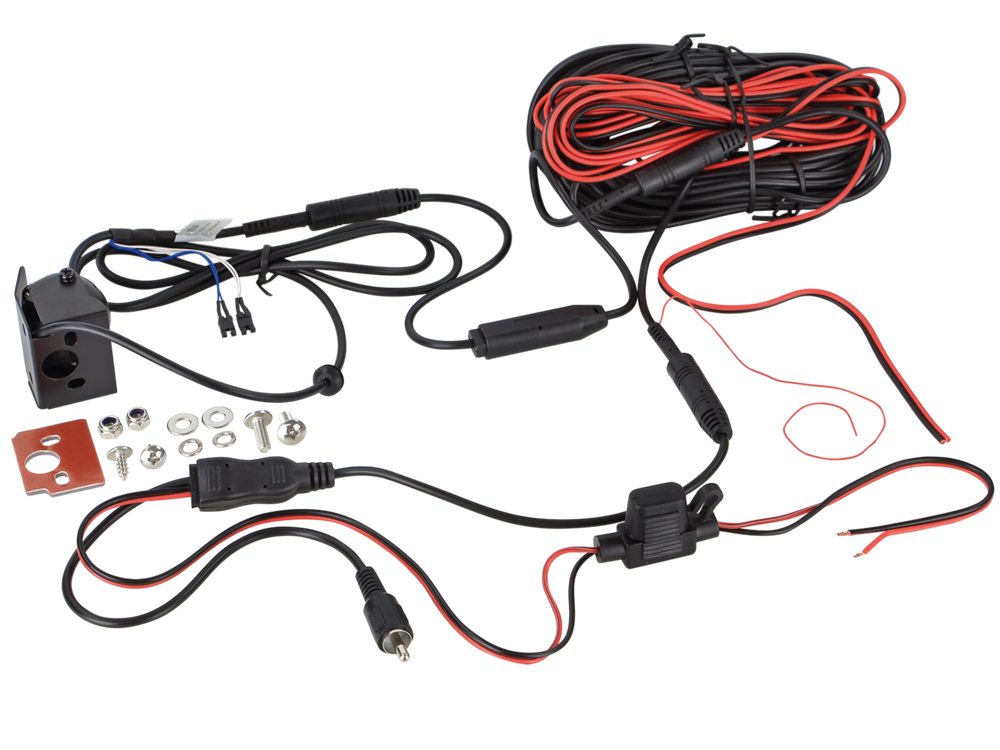

Pigtail at the camera:
1 Meter cable with 4-pin mini plug (male) 5,2 mm incl. 2 jumpers
6,5 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
4-pin mini plug (female) 10 mm and plug (male) 5,2 mm
0,2 Meter power wire harness incl. fuse and video connector (RCA)
