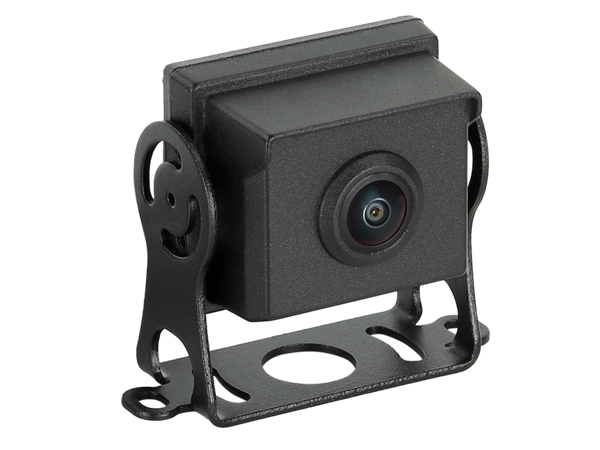

ACV UNIVERSAL TAG/BAG MONTERING SORT 180° IP69

Rear view camera universal

Design: Transporter / Motor Home
Installation: build-up-construction / roof system

with E-MARK / IP69K proofed / 180° view angle diagonal

Note:

acv cameras are suitable for continuous operation

before installation > check the viewing angle and camera alignment at the installation site with a test monitor

camera operating voltage: +12V
camera power supply: +12V

connection:
red: +12V switched load-stable fused
black: car body direct groud/GND

RCA(m) yellow: video

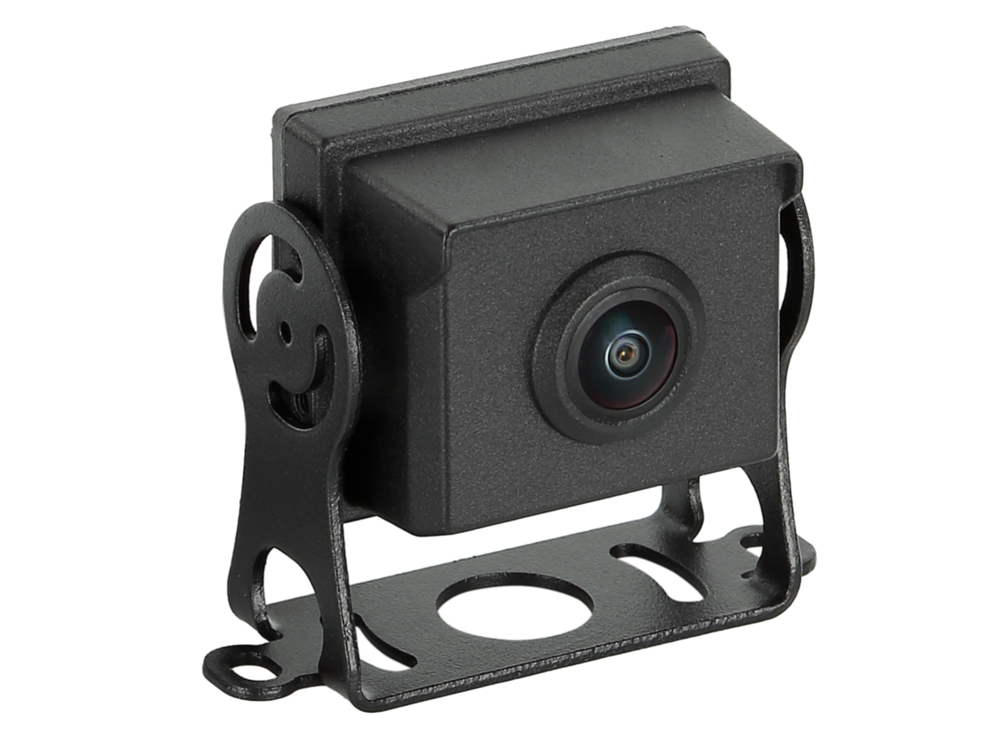

Product characteristic camera:

Design: metal
Color: black
Extras: IP69K proofed / 180° view angle diagonal
Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 960 x 480
Lens: 2.8mm
Lux: 0.1 lux
Resolution: 600 TV lines
Lens angle: diagonal 180°
View angle: horizontal 140° vertical 100°
IP Rating: IP69K
Terminal: 4 Pin acv-system connector(m) Ø5,2 mm
Operating voltage: +12 DC
Power supply: +12V DC
Current consumption: 80mA
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C
Measurements with bracket: L / W / H / 69,3mm / 57,8mm / 25,5mm

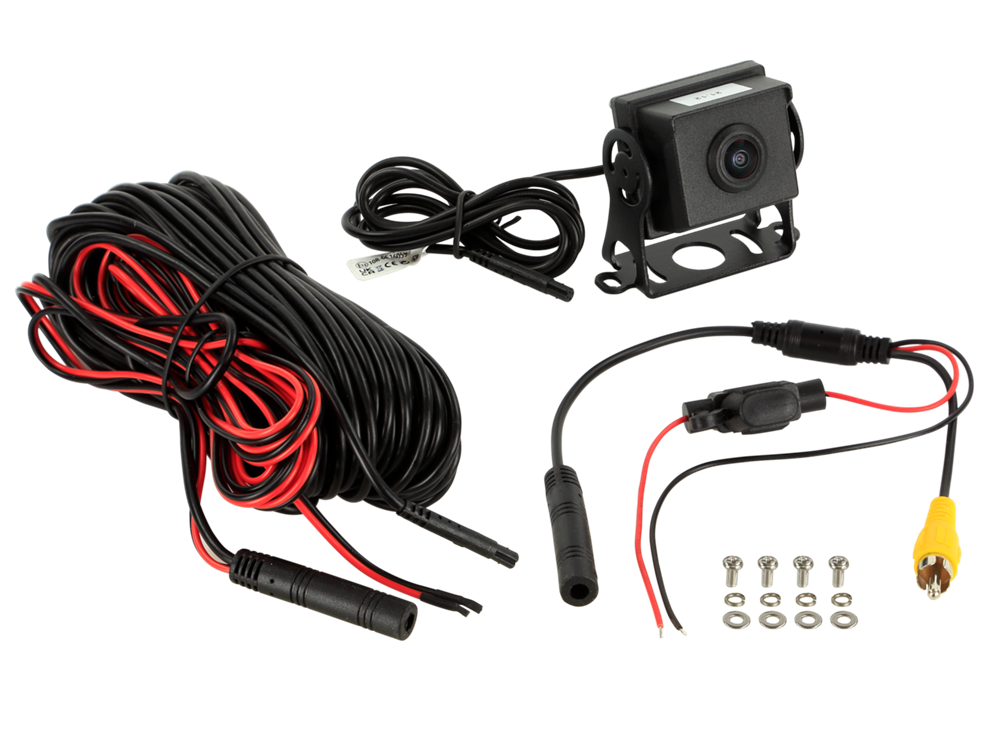

Pigtail at the camera 1m+/-:
4 Pin acv-system connector(m) Ø5,2mm

Extension cable 15m +/-:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
power wire red 3m +/- inlay cable: connection to camera / connection reverse light to monitor
ground/GND wire black 3m +/- inlay cable: connectrion car body direct/GND to camera / car body direct/GND to monitor

Connector cable 20cm +/-:
4 Pin acv-system connector(f) Ø10mm
red: power supply
black: GND
RCA(m) yellow: video
