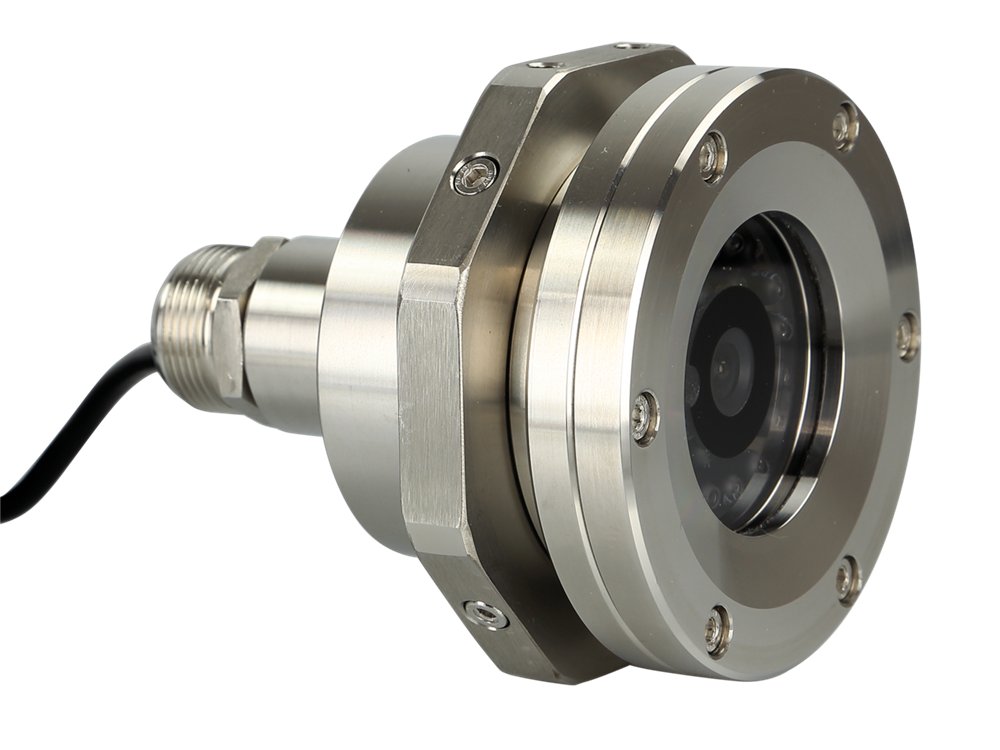

ACV UNIVERSAL TAG/BAG MONTERINGS KAMERA STAINLESS STEEL

Rear view camera universal

Design: round
Installation: sub-construction /build-up-construction

different mounting solutions
explosion proof
stainless steel housing

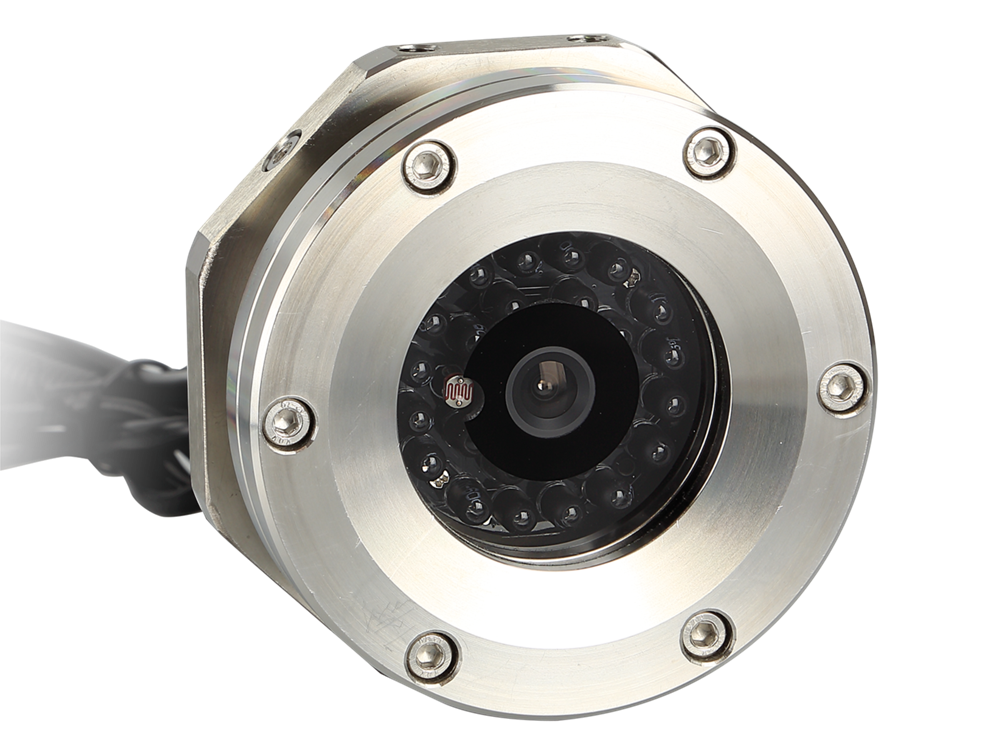

with guiding lines and night view

Note:

all acv cameras are suitable for +12V continuous operation

connection:
red +12V switched load-stable (fused)
black ground car body direct

Product characteristic:

Design: stainless steel
Color: stainless steel
Extras: guiding lines via jumper and night view
Image sensor: 1/3" CMOS
TV system: NTSC color
Effective pixels: 976 x 592
Lens: 1,9mm / F 2.0
Min.Lux: 0 Lux with activ night view
Resolution: 600 TV lines
Lens angle: 130° + 5°
View angle: horizontal 100° vertical 65° + 5°
IP Rating: IP 69
Terminal: 4-pin mini-plug ( male ) 5,2 mm
Power supply: 12Volt DC + 10%
Current consumption: 300mA during active night view function
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C
Measurements: L / W / H - mm / mm / mm

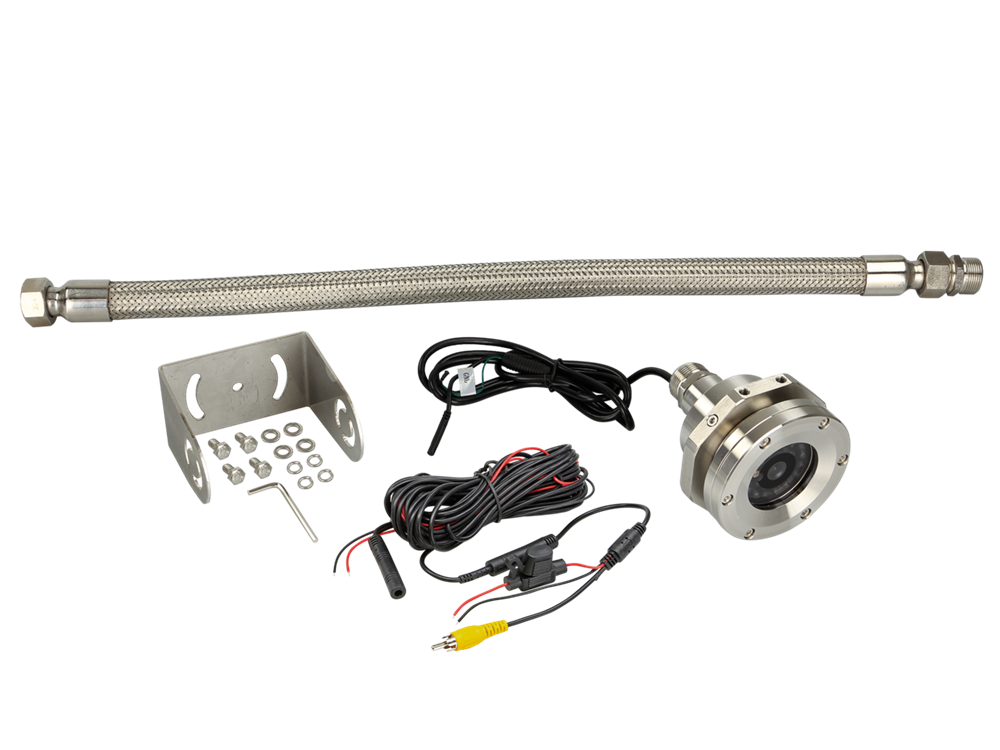

Pigtail at the camera:

1 Meter cable with 4-pin mini plug ( male ) 5,2 mm incl. 1 jumper

6,5 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
4-pin mini plug ( female ) 10 mm and plug ( male ) 5,2 mm

0,2 Meter power wire harness incl. fuse and video connector (RCA)
