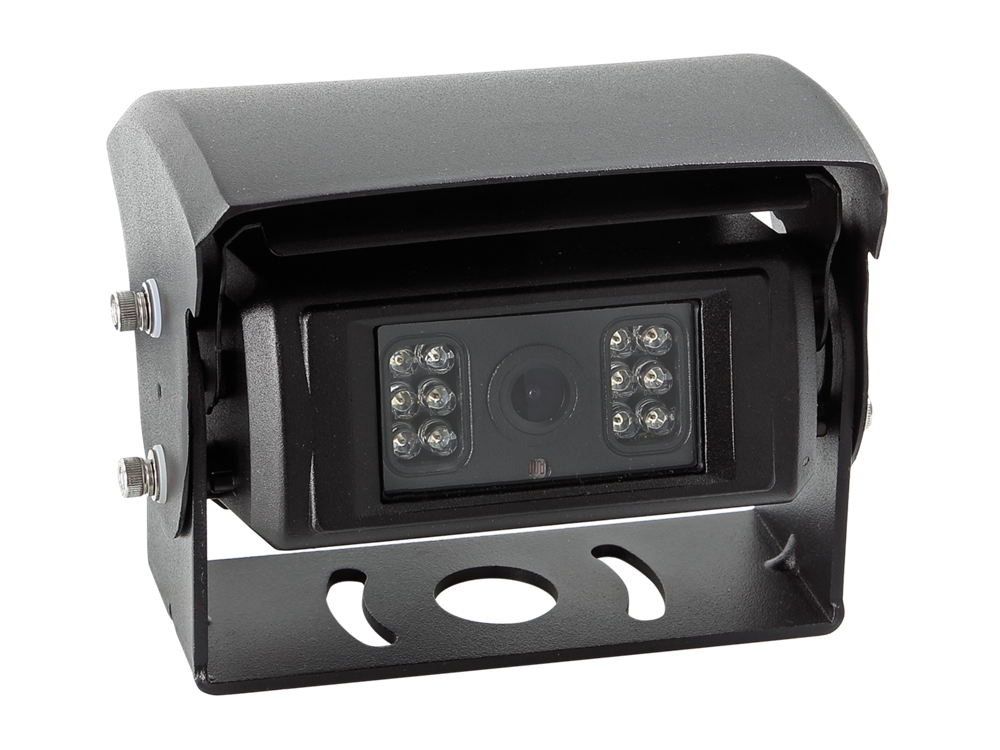

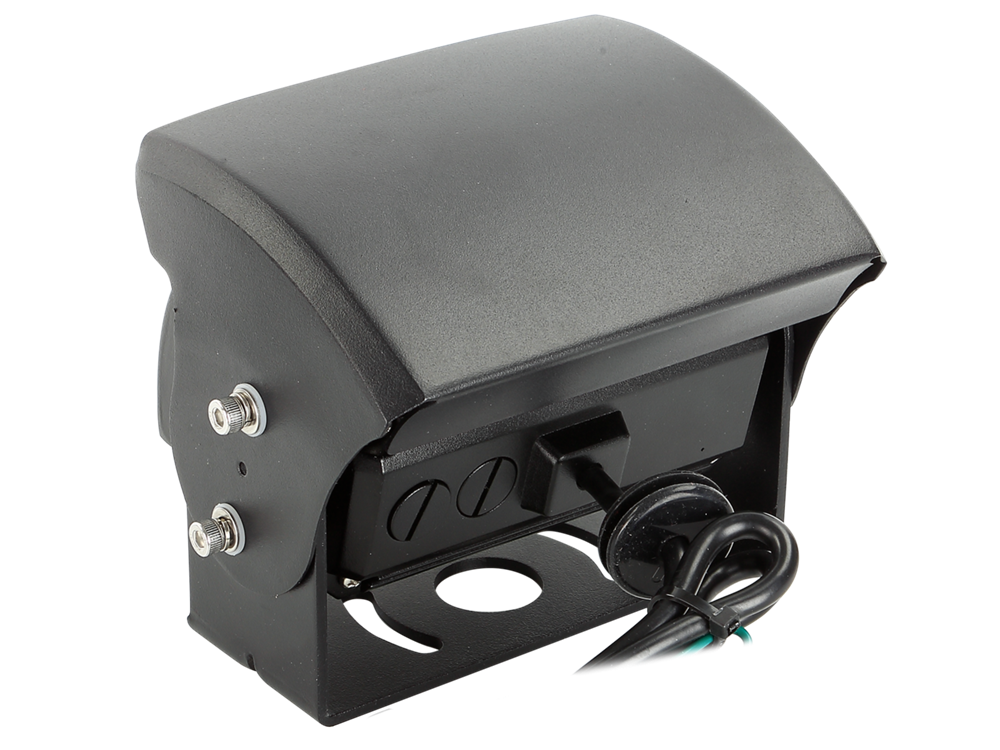

ACV UNIVERSAL TAG/BAG MONTERINGS KAMERA MED VARME

Rear view camera shutter universal

Design: Transporter / Motor Home
Installation: build-up-construction / roof system

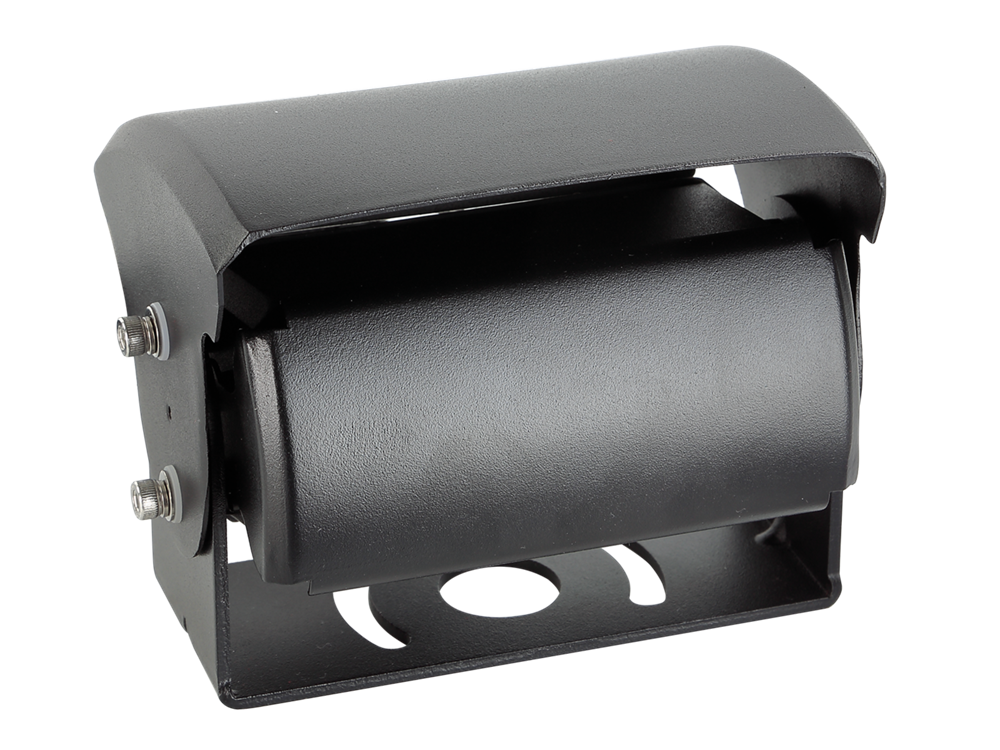

with automatic shutter function
wit camera heating and night view function

Note:

all acv cameras are suitable for +12V continuous operation

connection:
red +12V switched load-stable (fused)
black ground car body direct

Product characteristic:

Design: metal
Color: black
Extras: Autmatic shutter function,
camera heating function and night view
Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 960 x 480
Lens: 2.8mm
Lux: 0 lux with activ night view
Nightview: 10 meter
Resolution: 520 TV lines
Lens angle: diagonal 130°
View angle: horizontal 100° vertical 65° + 5°
IP Rating: IP 68
Terminal: 4-pin mini-plug ( male ) 5,2 mm
Power supply: 12Volt DC + 10%
Current consumption: 200mA with activ night view
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C
Measurements: L / W / H - 120mm / 75mm / 100mm

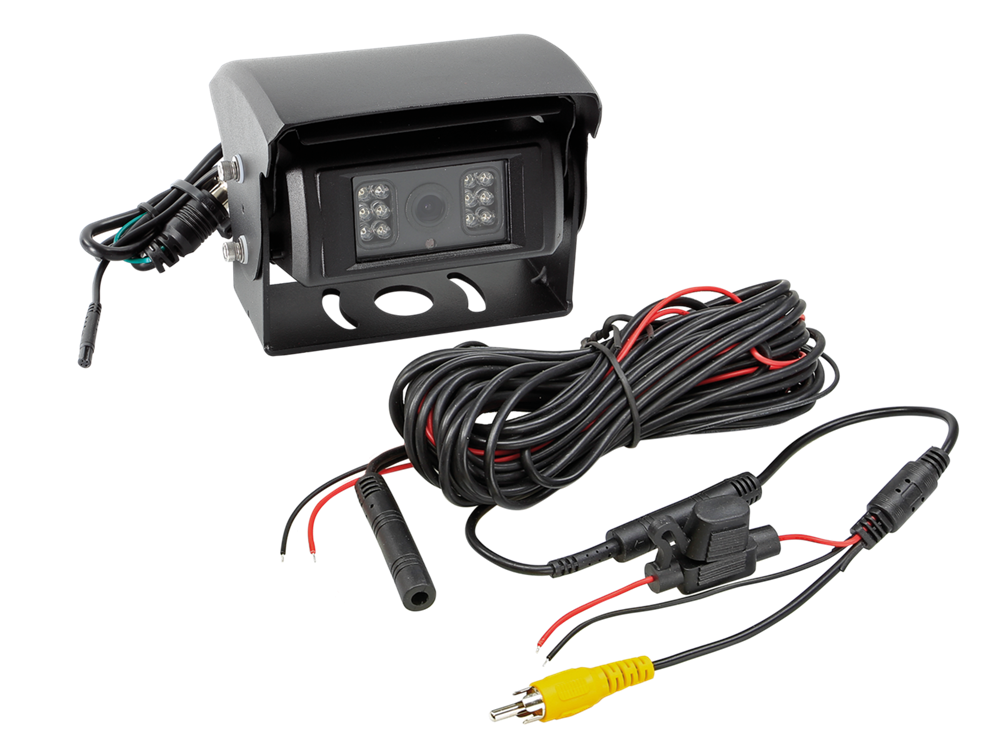

Pigtail at the camera:

1 Meter cable with 4-pin mini plug

15 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
4-pin mini plug (female) 10 mm and plug (male) 5,2 mm

0,2 Meter power wire harness incl. fuse and video connector (RCA)
