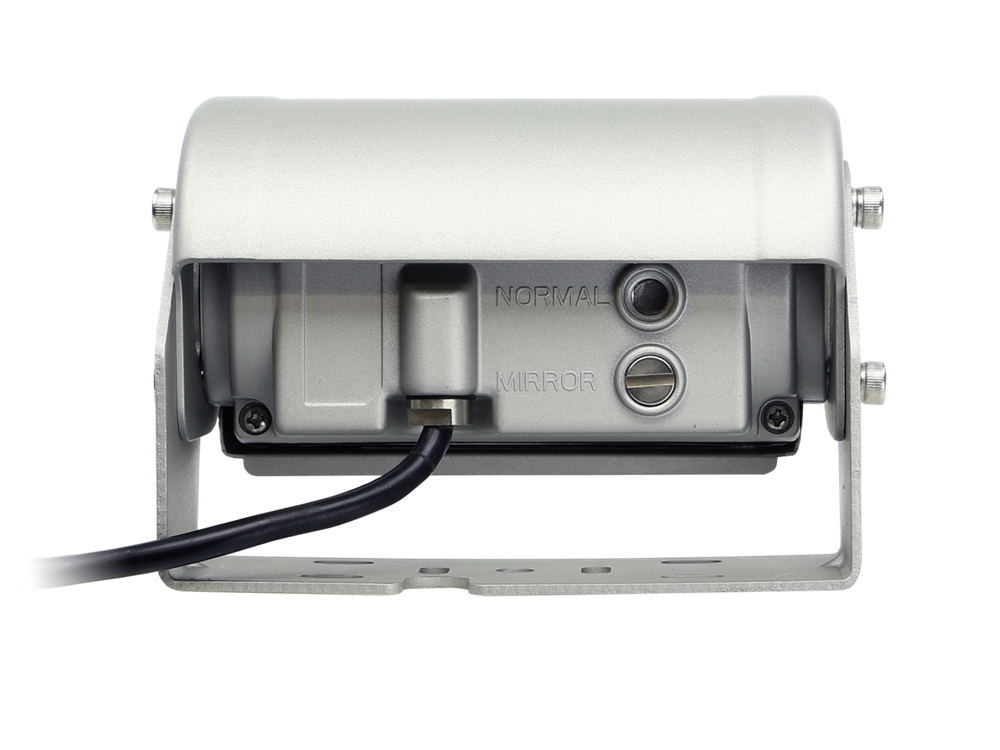

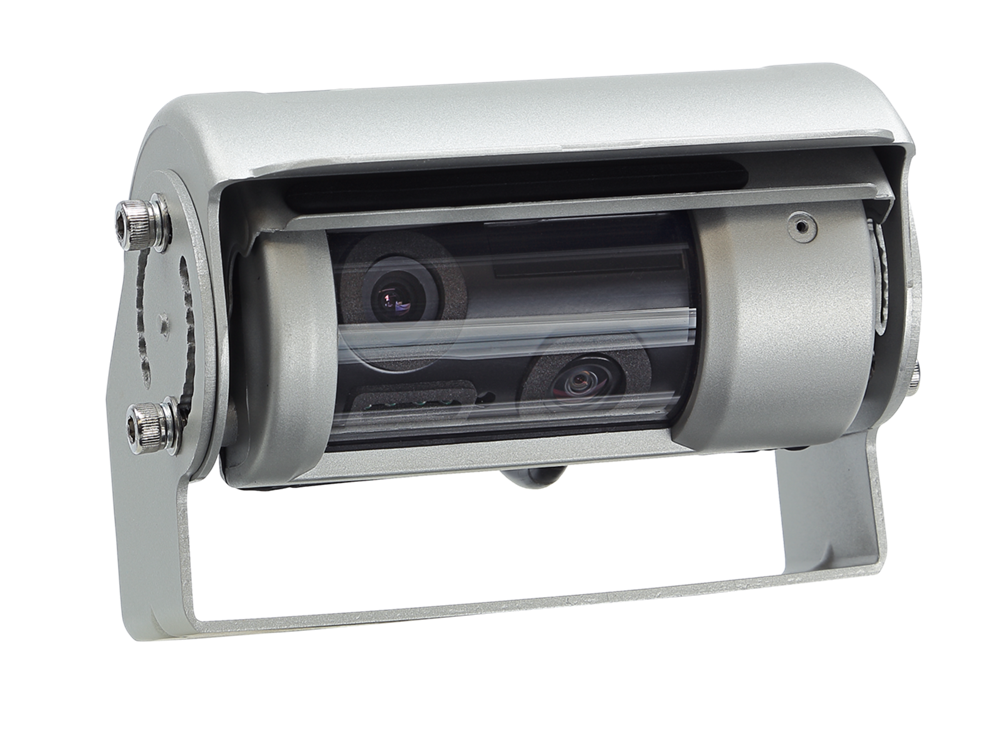

ACV UNIVERSAL TAG/BAG DUAL KAMERA SØLV

Rear view camera dual view shutter universal

Design: Transporter / Motor Home
Installation: build-up-construction / roof system

2 camera lenses / camera heating function / whiper function / audio and night view

Note:

all acv cameras are suitable for +12V continuous operation

connection:
red +12V switched load-stable (fused)
black ground car body direct

Product characteristic:

Design: metal
Color: silver
Extras: 2 camera lenses, camera heating function, whiper function, audio and night view
Image sensor: 1/4" Sony CCD
TV system: PAL color
Effective pixels: 728 x 512
Lens: 1,9mm / F 2.0
Min.Lux: 0 Lux with active nightview
Resolution: 480 TV lines
Lens angle: 150° (diagonal)
Lens angle camera 1: horicontal 105 + 5° vertikal 75 + 5°
Lens angle camera 2: horizontal 48 + 5° vertikal 34 + 5°
IP Rating: IP 68
Terminal: 6-pin plug (male)
Power supply: 12Volt DC + 10%
Current consumption: 200mA during active night view function
Operating temperature: -20°C - 75°C
Storage temperature: -40°C - 85°C
Measurements: (with brackets) L / W / H - 127.2 mm / 91.82 mm / 88.98 mm

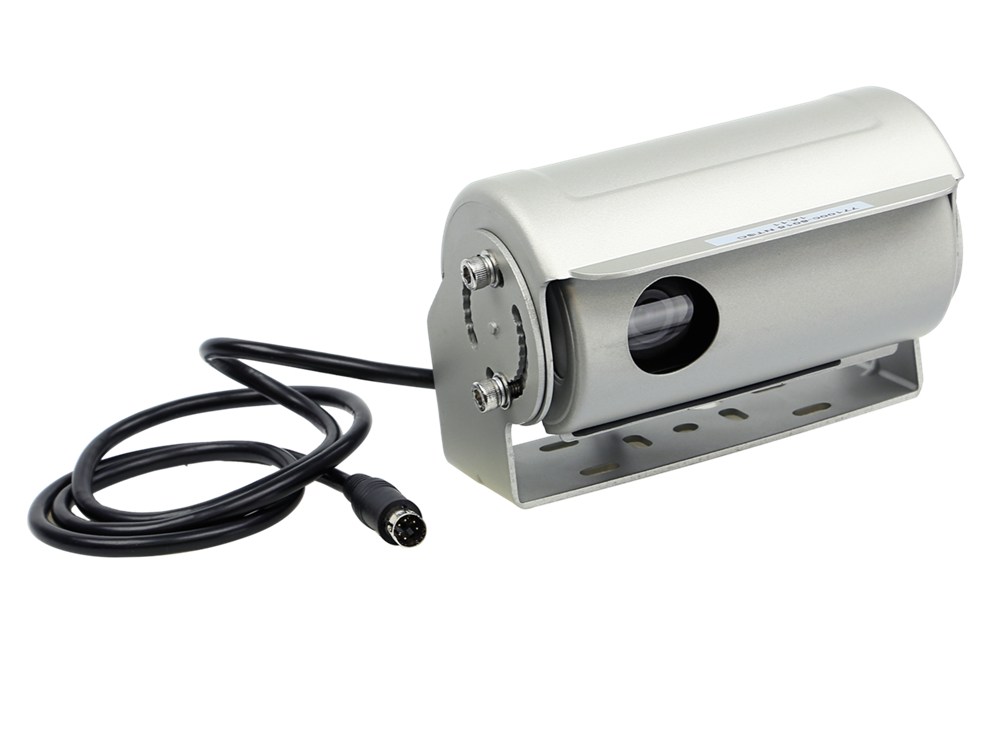

Pigtail at the camera:

1 Meter cable with 6-pin plug (male)

System harness:

15 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
6-pin plug

0,2 Meter power wire harness incl. fuse and video connector (RCA)
