ACV UNIVERSAL TAG/BAG MONTERING SORT

Varenr.: 771000-6012
  • PRIS ER PR. Stk
    Pris ved køb af 1 Stk,1.499,00  DKK
På lager hos vores leverandør

Download manual

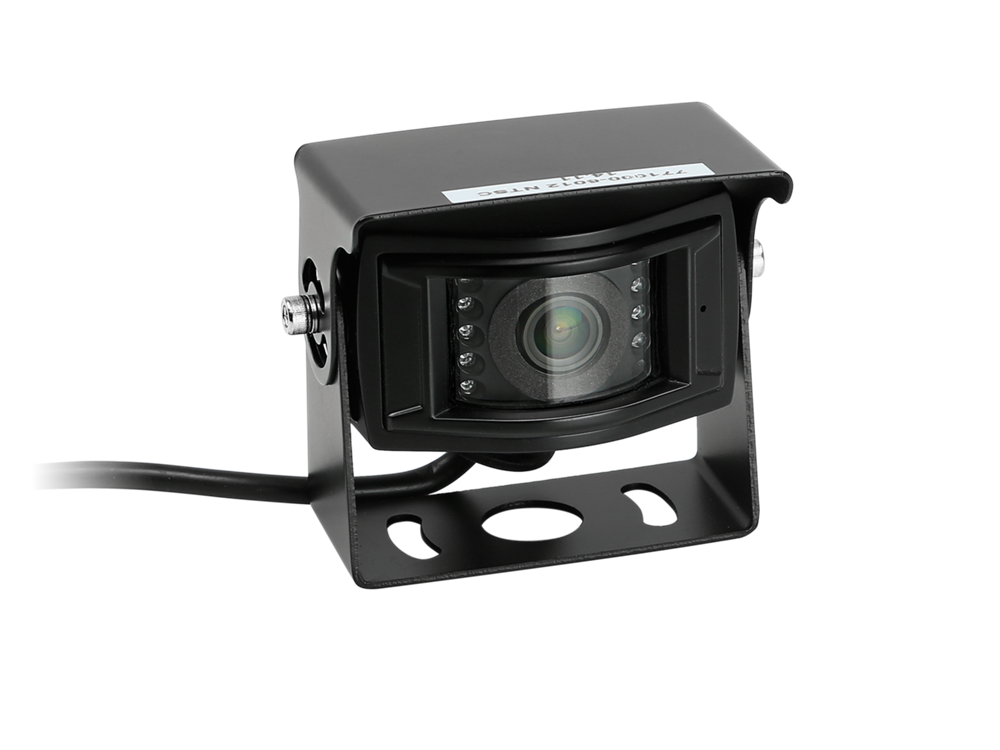

Rear view camera universal

Design: Transporter / Motor Home
Installation: build-up-construction / roof system

with guiding lines and night view function
wide angle 170° (diagonal)

Note:

all acv cameras are suitable for +12V continuous operation

connection:
red +12V switched load-stable (fused)
black ground car body direct

Product characteristic:

Design: metal
Color: black

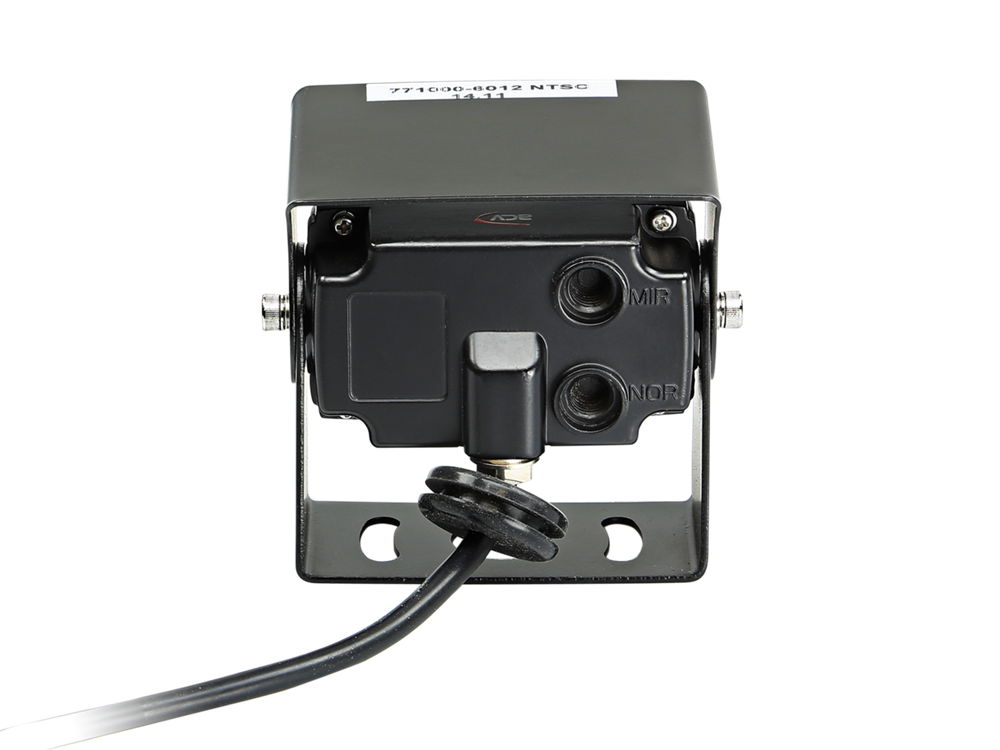

Extras: guiding lines via jumper, mirror function and night view
Image sensor: 1/4" CCD
TV system: NTSC color
Effective pixels: 728 x 512
Lens: 1,9mm / F 2.0
Lux: 0 Lux with activ night view
Resolution: 600 TV lines
Lens angle: 170° (diagonal)
View angle: horizontal 113° vertical 80° + 5°
IP Rating: IP 68
Terminal: 4-pin mini-plug ( male ) 5,2mm
Power supply: 12Volt DC + 10%
Current consumption: 200mA with activ night view
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C
Measurements: (with brackets) L / W / H - 76 mm / 60,39 mm / 73,8 mm

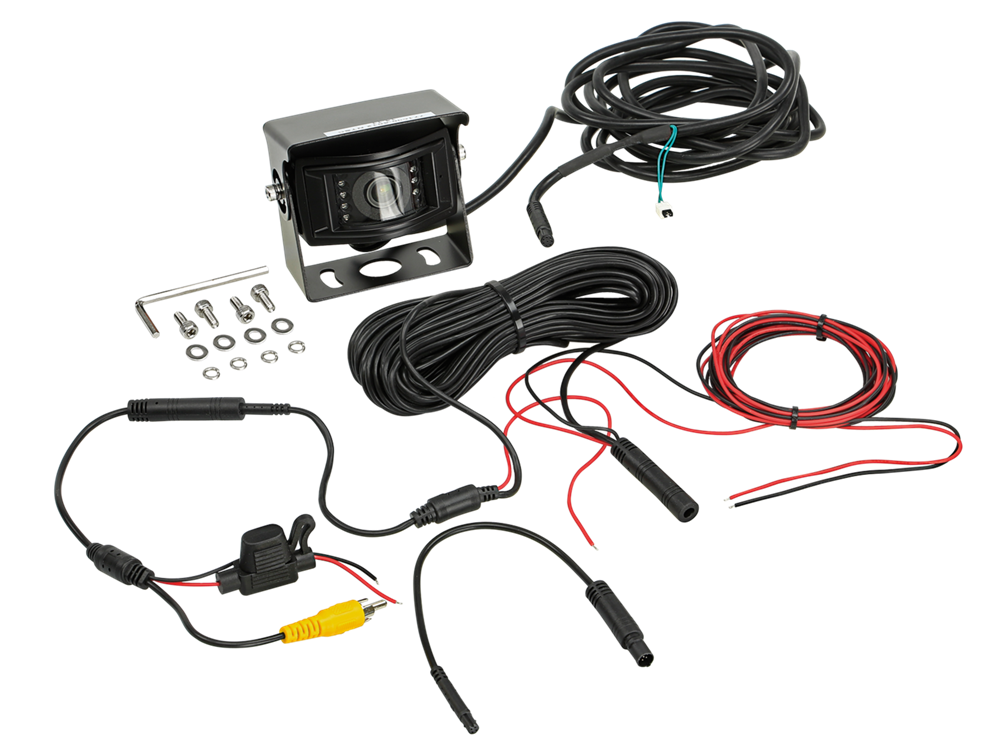

Pigtail at the camera:

3 Meter cable with 8-pin mini plug ( male ) 7 mm incl. 1 jumper
Adapter harness 8-pin plug --> 4-pin mini plug

15 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
4-pin mini plug ( female ) 10 mm and plug ( male ) 5,2 mm

0,2 Meter power wire harness incl. fuse and video connector (RCA)
