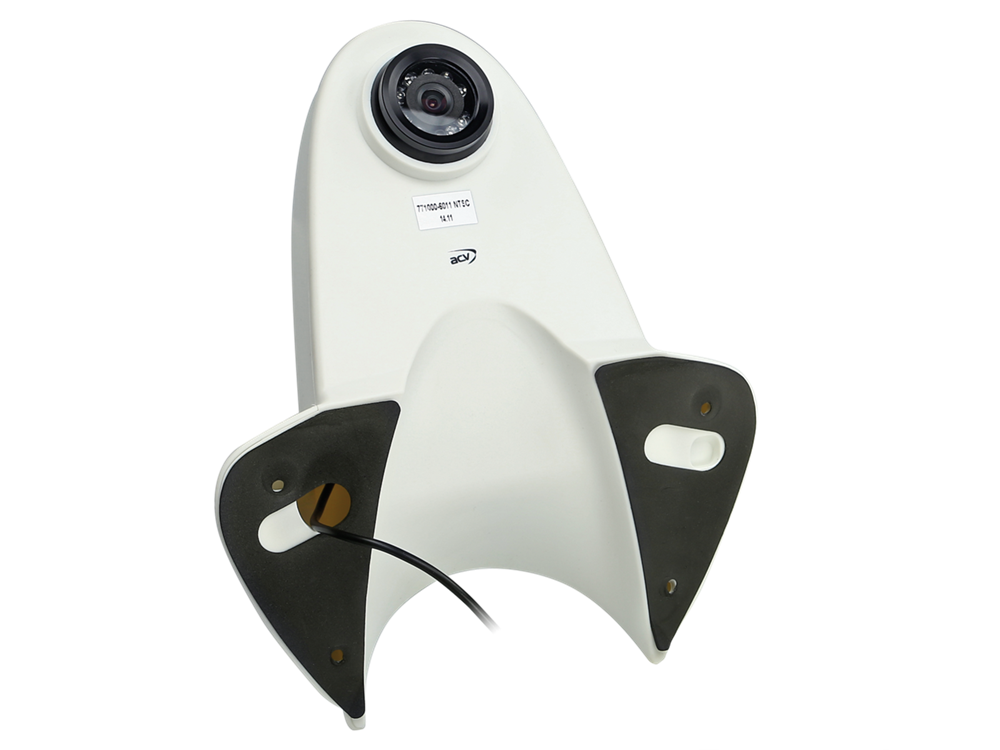

ACV UNIVERSAL TAG MONTERING HVID

Rear view camera universal

Design: Transporter
Installation: roof system

with guiding lines and night view

Note:

all acv cameras are suitable for +12V continuous operation

connection:
red +12V switched load-stable (fused)
black ground car body direct

Product characteristic:

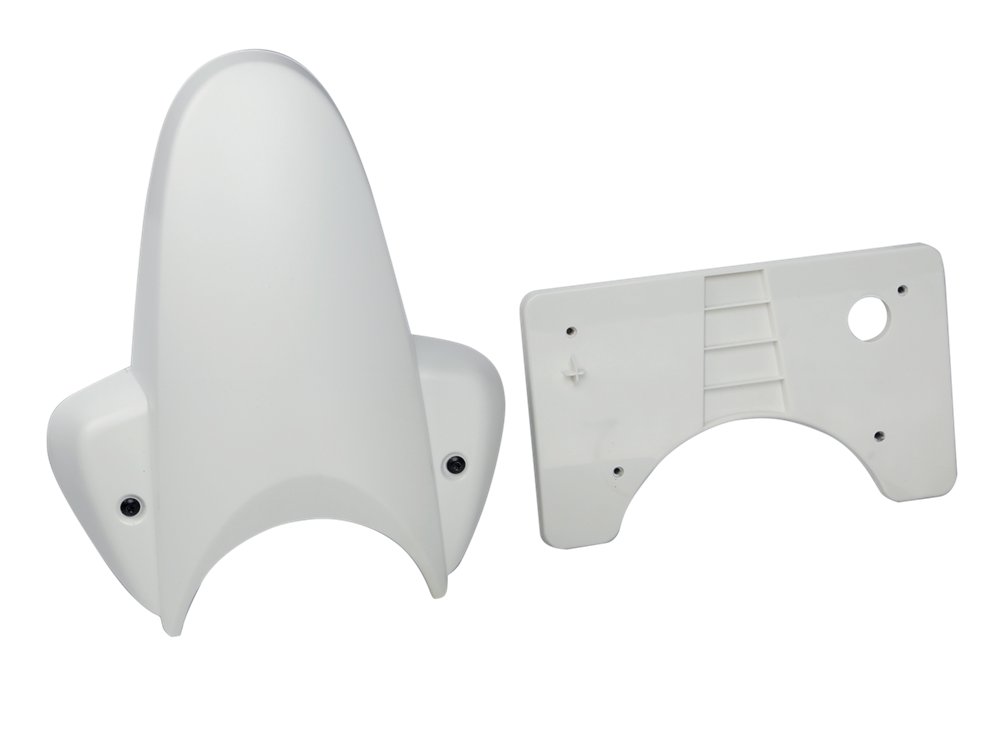

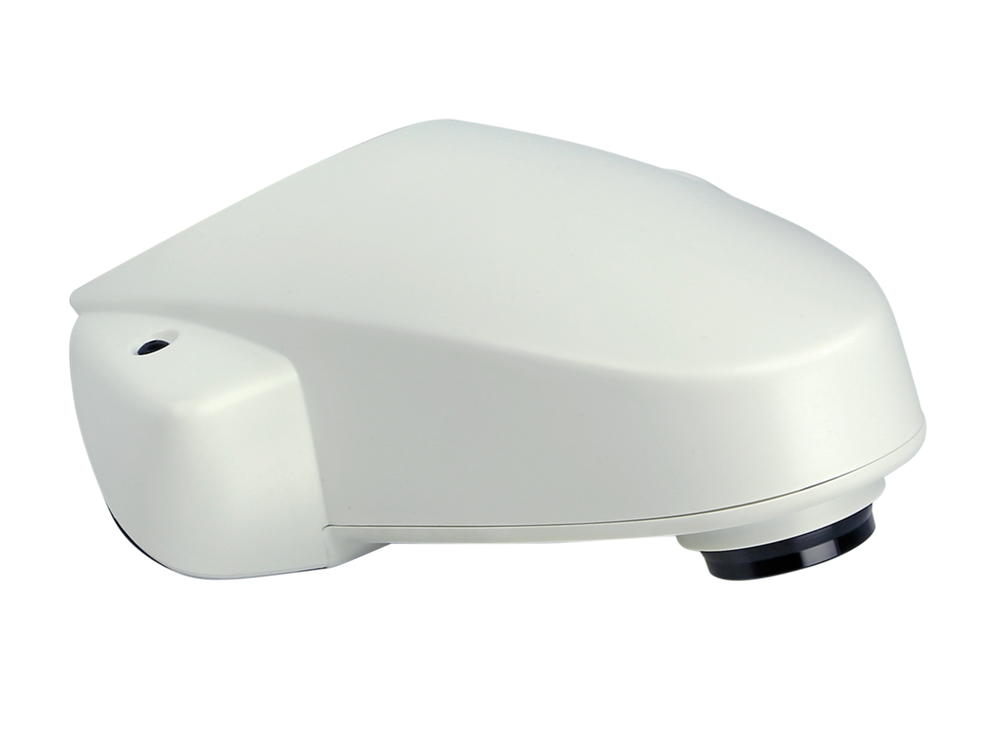

Design: plastic with ball head
Color: white
Extras: guiding lines via jumper and night view
Image sensor: 1/3" CCD
TV system: NTSC color
Effective pixels: 628 x 512
Lens: 1,9mm / F 2.0

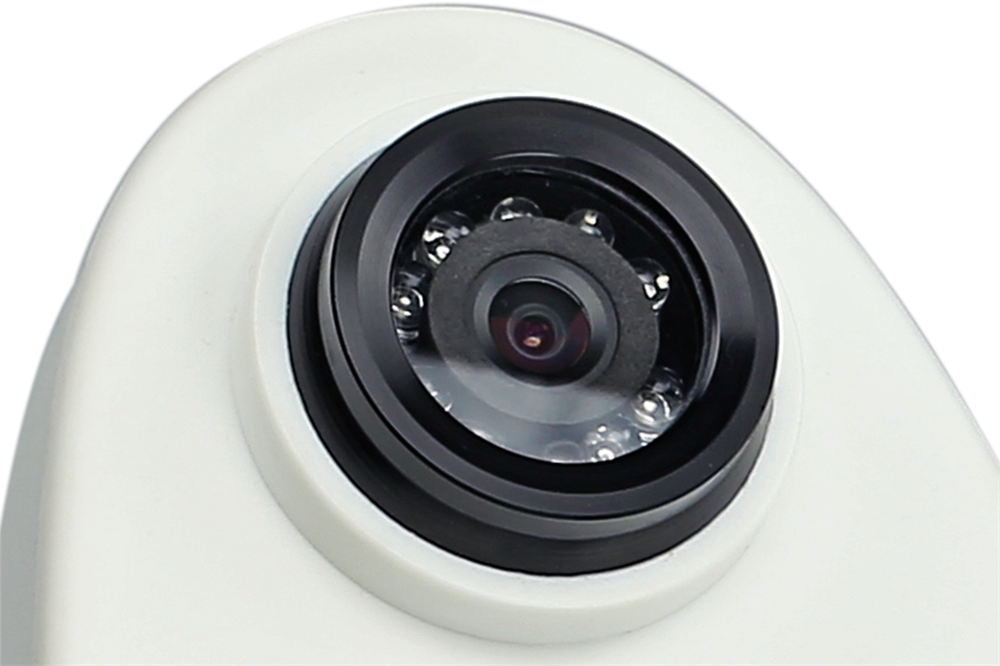

Lux: 0 Lux with activ night view
Resolution: 600 TV lines
Lens angle: 170°
View angle: horizontal 53° vertical 41° + 5°
IP Rating: IP 68
Terminal: 4-pin mini-plug (male) 5,2mm
Power supply: 12Volt DC + 10%
Current consumption: 200mA with activ night view
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C
Measurements: L / W / H - 231 mm / 198 mm / 111 mm
Weight:

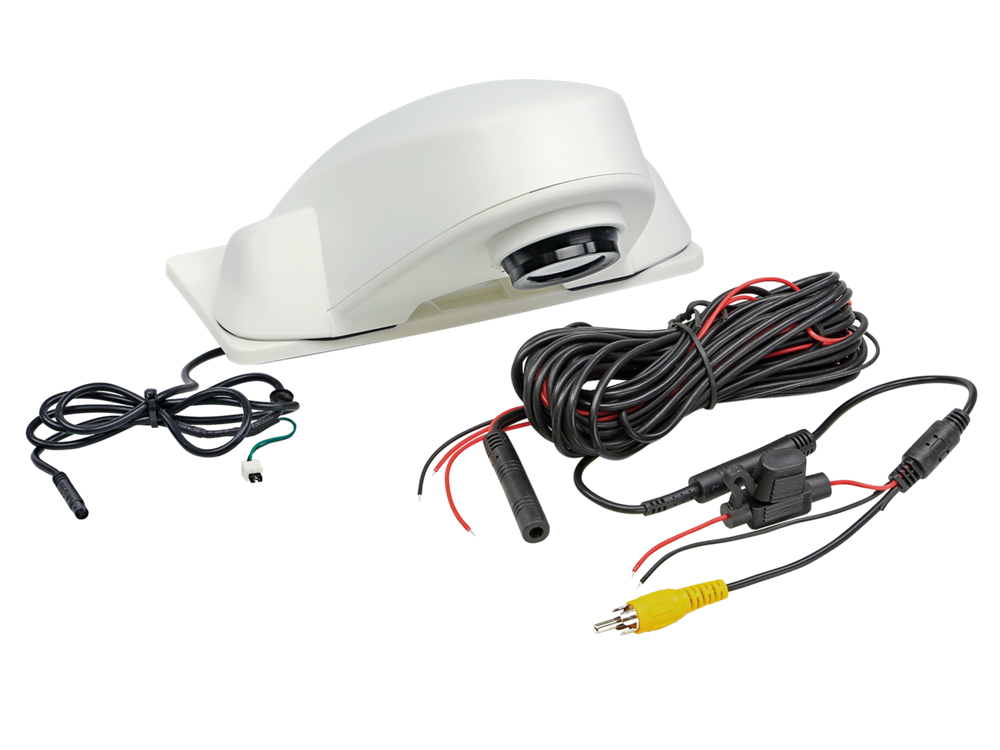

Pigtail at the camera:

1 Meter cable with 4-pin mini plug ( male ) 5,2 mm incl. 1 jumper

6,5 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
4-pin mini plug ( female ) 10 mm and plug ( male ) 5,2 mm

0,2 Meter power wire harness incl. fuse and video connector (RCA)
