Varenr.: 772000-6002
  • PRIS ER PR. Stk
    Pris ved køb af 1 Stk,959,00  DKK
På lager hos os

Download manual

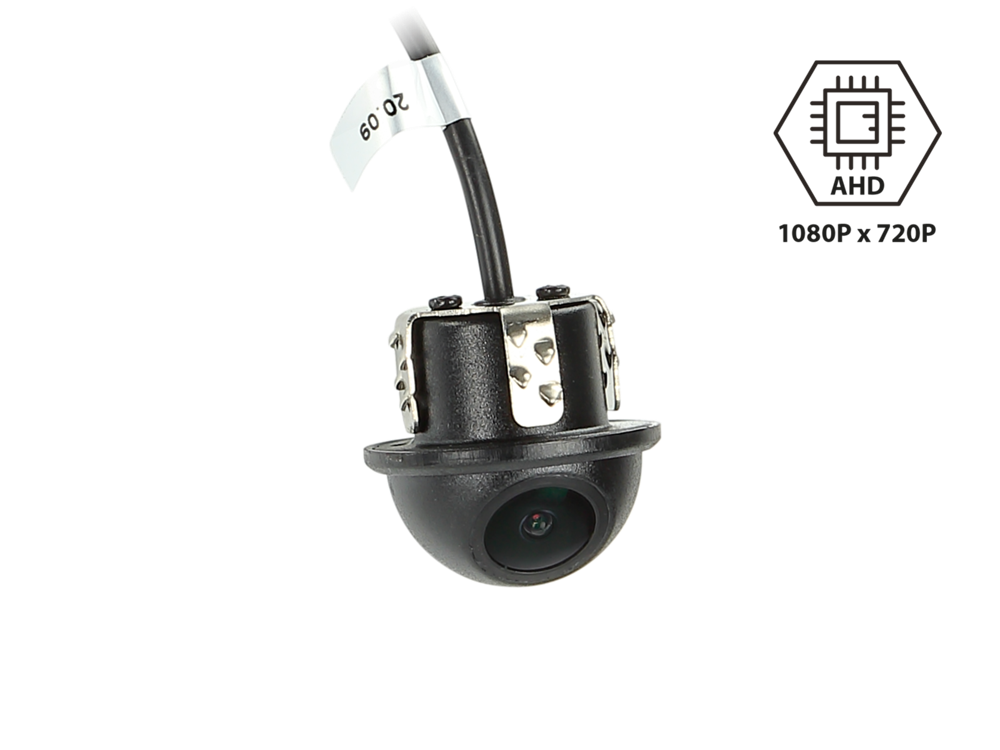

Rear view camera AHD universal ( Analog high definition)

Design: round
Installation: sub-construction

with guiding lines / mirror function


acv cameras are suitable for continuous operation

before installation > check the viewing angle and camera alignment at the installation site with a test monitor

camera operating voltage: +3V
camera power supply: +12V / +24V

connection without voltage converter +3V in scope of delivery damages the camera

red: +12V / +24V switched load-stable fused
black: car body direct groud/GND

RCA(m) yellow: video

green: guiding lines activate/deactivate
white: mirror function activate/deactivate

Product characteristic camera:

Design: plastic with metal brackets
Color: black
Extras: guiding lines via jumper / mirror function via jumper
Image sensor: 1/2,8" AHD
TV system: NTSC
Effective pixels: 1080 x 720
Lens: mm / F
Lux: 0,03
Resolution:TV lines
Lens angle: diagonal 210°
View angle: horizontal 170° vertical 120° +5°
IP Rating: IP69K
Terminal: 4 Pin acv-system connector(m) Ø5,2 mm
Operating voltage: +3V DC
Power supply: +12V / +24V DC > with voltage converter
Current consumption: 200mA
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C
Measurements: H 30mm / 17mm - 30,5mm

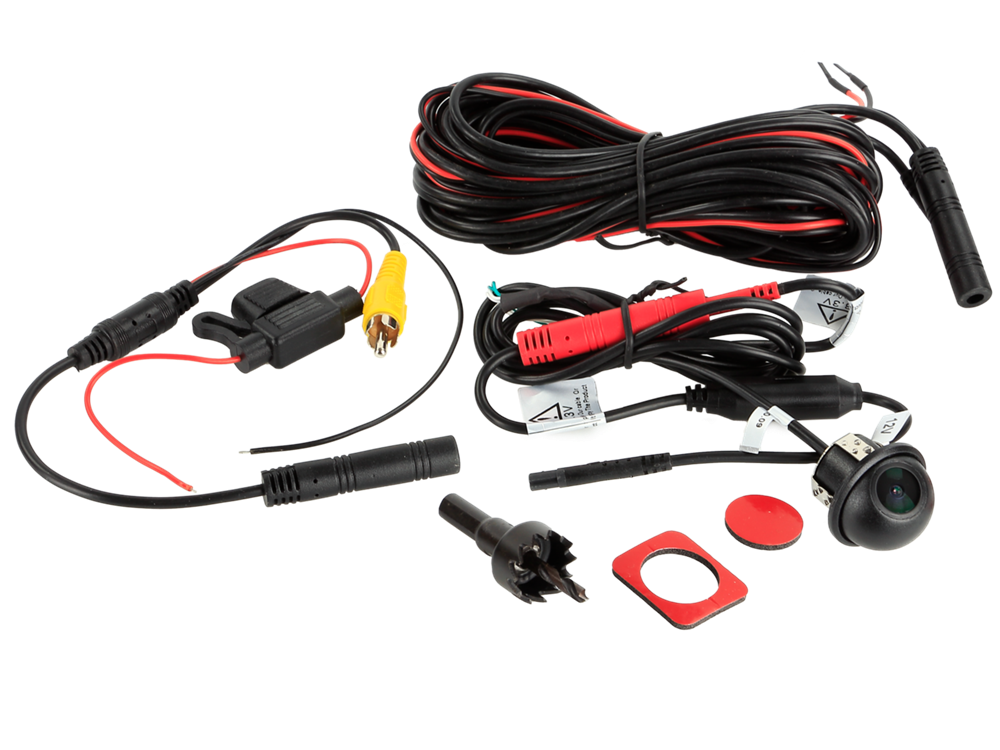

Pigtail at the camera 1m +/-:
cable 1m 4 Pin acv-system connector(m) Ø5,2mm
2 jumper

Voltage converter +3V:
acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm

Extension cable 6,5m +/-:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
power wire red 3m +/- inlay cable: connection to camera / connection reverse light to monitor
ground/GND wire black 3m +/- inlay cable: connectrion car body direct/GND to camera / car body direct/GND to monitor

Connector cable 20cm +/-:
4 Pin acv-system connector(f) Ø10mm
red: power supply
black: GND
RCA(m) yellow: video
