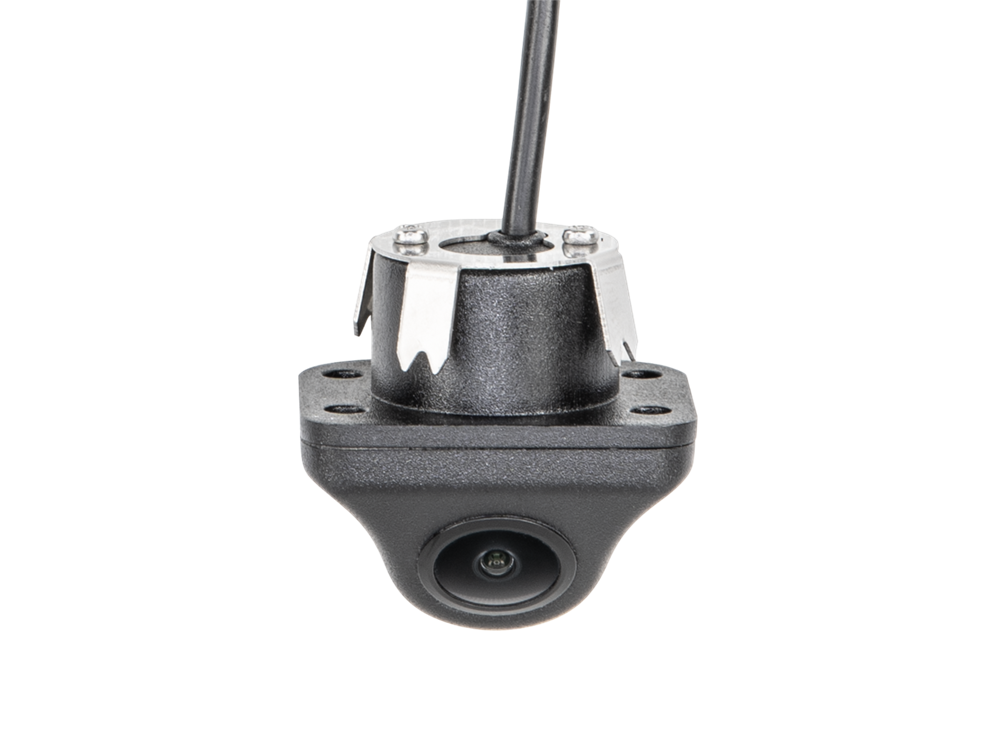

ACV UNIVERSAL RUND UNDERBYGNINGS KAMERA MED GUIDELINES

Rear view camera universal

Design: foursquared
Installation: sub-construction

with with guiding lines / mirror function / snap in fixing

Note:

acv cameras are suitable for continuous operation

before installation > check the viewing angle and camera alignment at the installation site with a test monitor

camera operating voltage: +3V
camera power supply: +12V / +24V

connection without voltage converter +3V in scope of delivery damages the camera

connection:
red: +12V / +24V switched load-stable fused
black: car body direct groud/GND

RCA(m) yellow: video

jumper:
green: guiding lines activate/deactivate
white: mirror function activate/deactivate

Product characteristic camera:

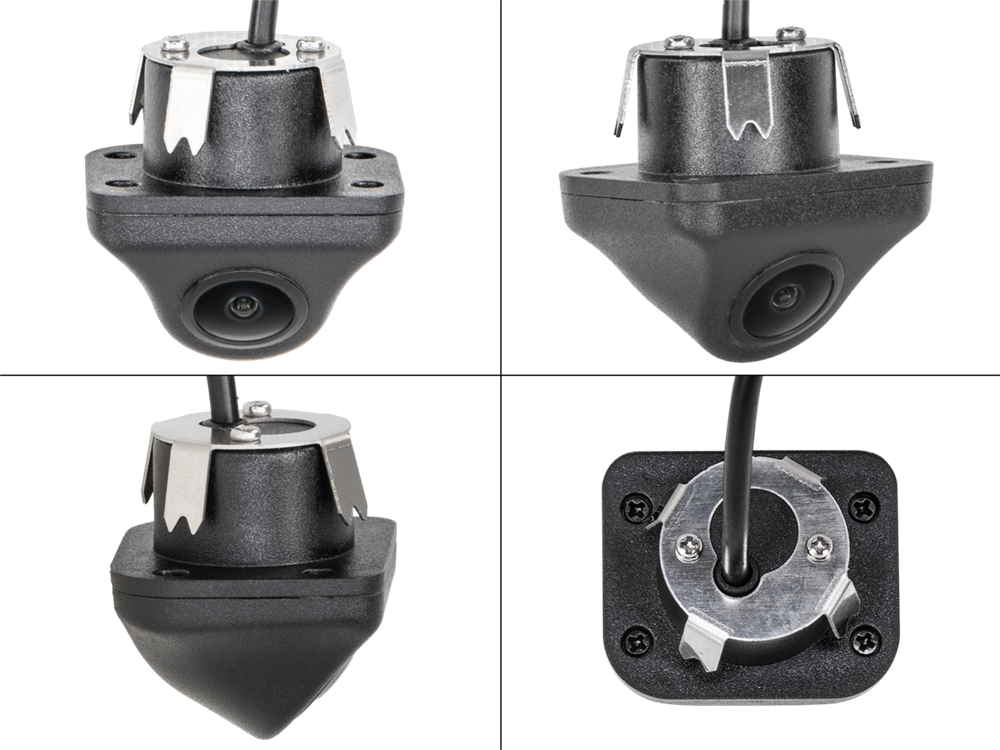

Design: plastic with 22mm drill hole
Color: black
Extras: guiding lines via jumper / mirror function via jumper / snap in fixing
Image sensor: 1/3" PC2099 CMOS
TV system: NTSC
Resolution: 960 x 480
Lux: 0,1
TV lines: 600 TV lines CVBS D1
Lens angle: diagonal 170°
View angle: horizontal 120° / vertical 85° +5°
IP Rating: IP68
Terminal: 4 Pin acv-system connector(m) Ø5,2 mm
Operating voltage: +3V DC
Power supply: +12V / +24V DC > with voltage converter
Current consumption: 60mA
Operating temperature: -20°C - 77°C
Storage temperature: -40°C - 85°C
Measurements: L / W / H - 34mm / 29mm / 34mm total
Drill hole: Ø 22mm

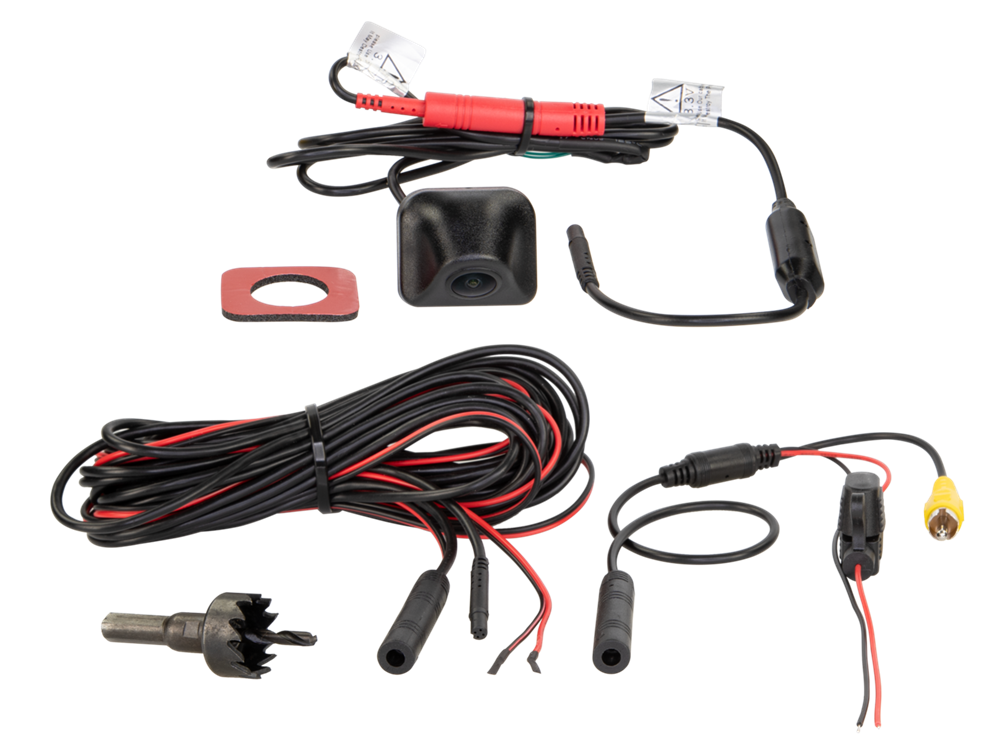

Pigtail at the camera 1m +/-:
4 Pin acv-system connector(m) Ø5,2mm
2 jumper

Voltage converter +3V:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm

Extension cable 6,5m +/-:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
power wire red 3m +/- inlay cable: connection to camera / connection reverse light to monitor
ground/GND wire black 3m +/- inlay cable: connectrion car body direct/GND to camera / car body direct/GND to monitor

Connector cable 20cm +/-:
4 Pin acv-system connector(f) Ø10mm
red: power supply
black: GND
RCA(m) yellow: video
