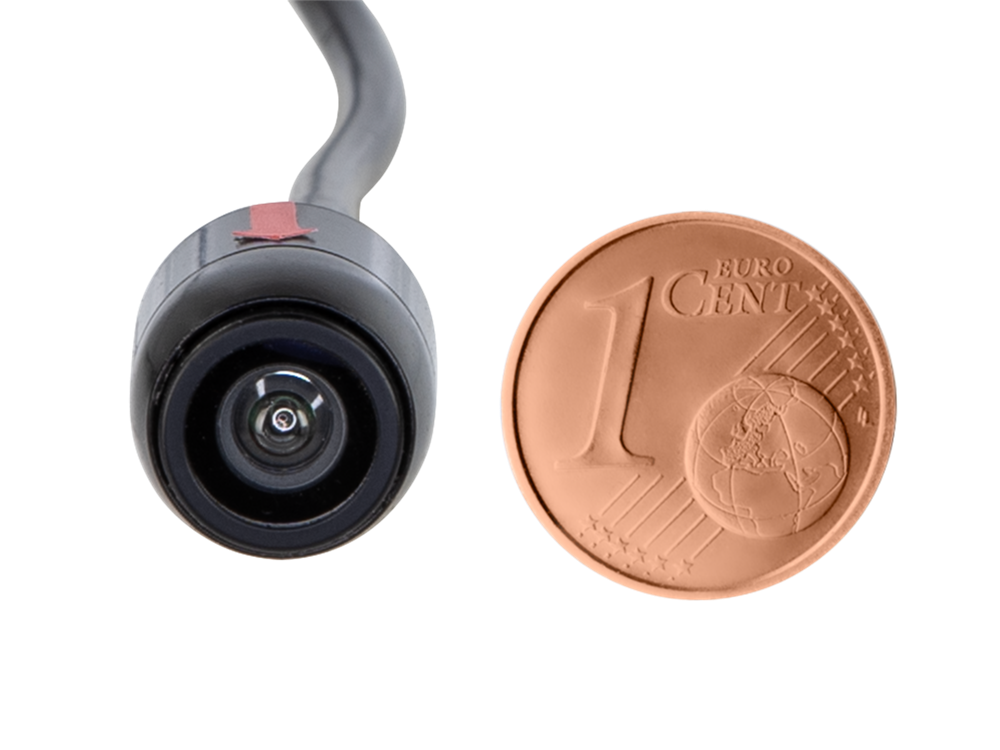

ACV UNIVERSAL MICRO FRONT/REAR KAMERA

Rear view camera universal
Front view camera universal

Design: round
Installation: sub-construction / build-up-construction / build-in construction

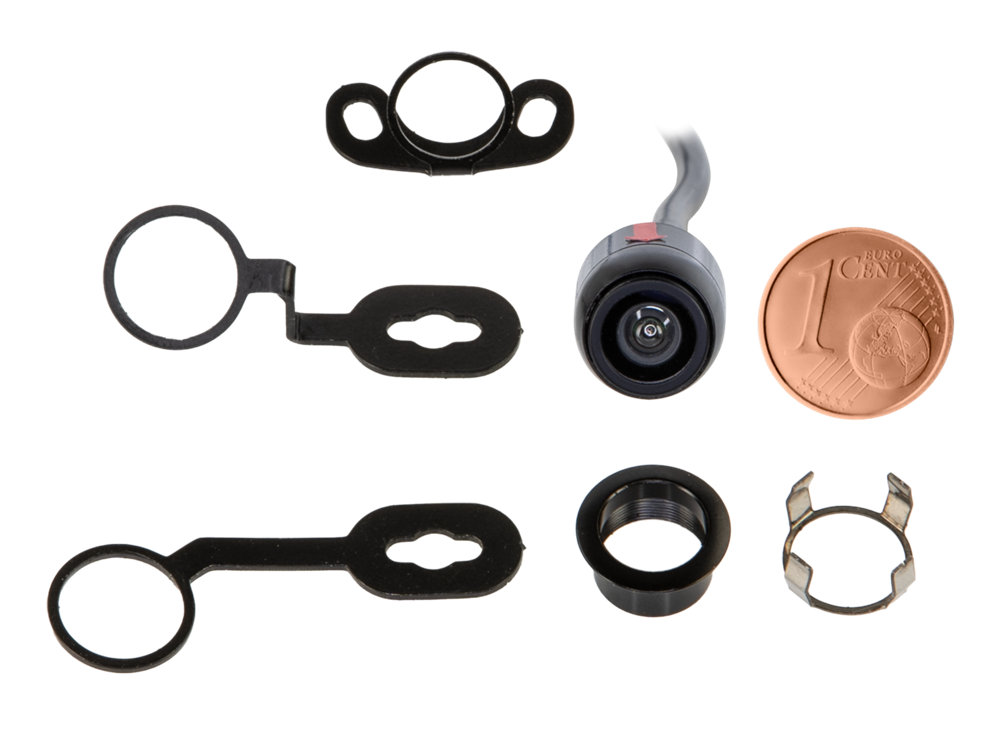

with with guiding lines / mirror function / different mounting brackets / snap-in fixing

Note:

acv cameras are suitable for continuous operation

before installation > check the viewing angle and camera alignment at the installation site with a test monitor

camera operating voltage: +3V
camera power supply: +12V / +24V

connection without voltage converter +3V in scope of delivery damages the camera

connection:
red: +12V / +24V switched load-stable fused
black: car body direct groud/GND

RCA(m) yellow: video

jumper:
green: guiding lines activate/deactivate
white: mirror function activate/deactivate

Product characteristic camera:

Design: plastic
Color: black
Extras: guiding lines via jumper / mirror function via jumper / different mounting brackets / snap in fixing
Image sensor: 1/4" CMOS
TV system: NTSC
Resolution:: 682 x 496
Lux: 0,3
TV lines: 480 TV lines CVBS D1
Lens angle: diagonal 135° +/- 5°
View angle: horizontal 95° vertical 75° +/- 5°
IP Rating: IP68
Terminal: 4 Pin acv-system connector(m) Ø5,2 mm
Operating voltage: +3V DC
Power supply: +12V / +24V DC > with voltage converter
Current consumption: 60mA
Operating temperature: -20°C - 77°C
Storage temperature: -40°C - 85°C
Measurements: Ø12,5 mm

Pigtail at the camera 1m +/-:
4 Pin acv-system connector(m) Ø5,2mm
2 jumper

Voltage converter +3V:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm

Extension cable 6,5m +/-:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
power wire red 3m +/- inlay cable: connection to camera / connection reverse light to monitor
ground/GND wire black 3m +/- inlay cable: connectrion car body direct/GND to camera / car body direct/GND to monitor

Connector cable 20cm +/-:
4 Pin acv-system connector(f) Ø10mm
red: power supply
black: GND
RCA(m) yellow: video
