ACV UNIVERSAL KAMERA/BREMSELYS TIL PÅBYGNING

Rear view camera universal

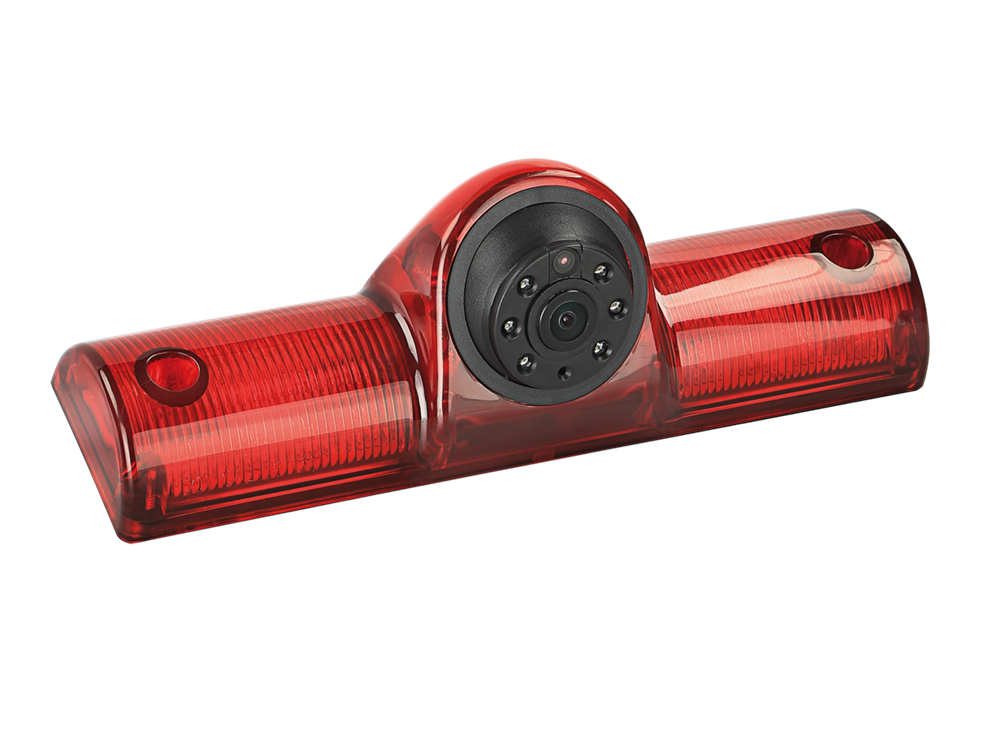

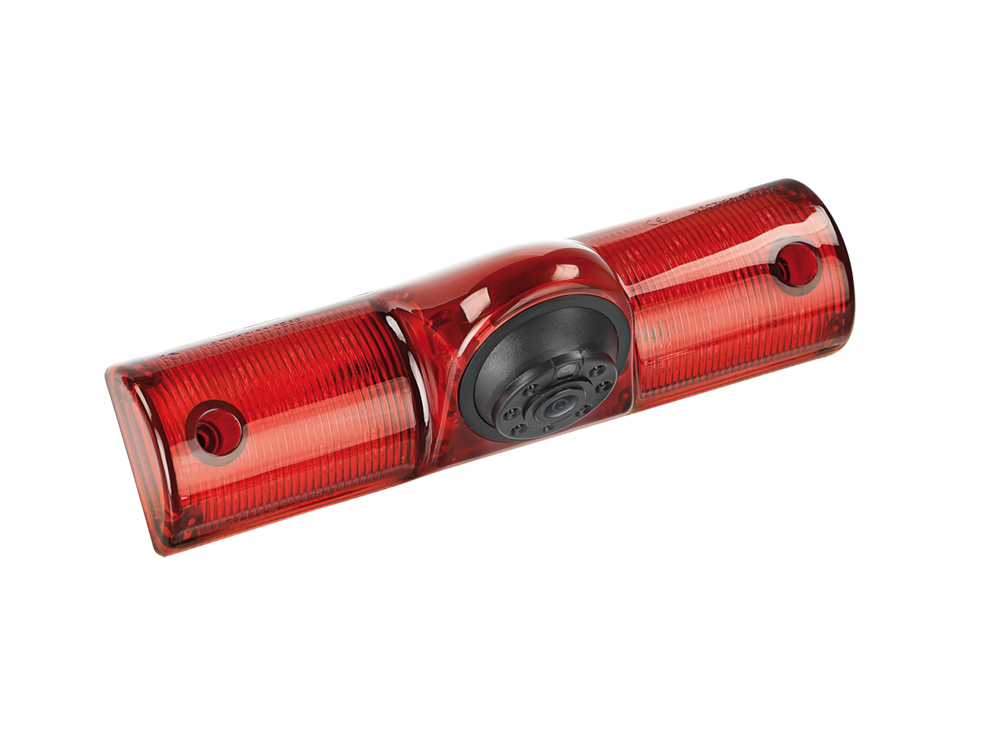

Design: 3rd brake light
Installation: build-up-construction

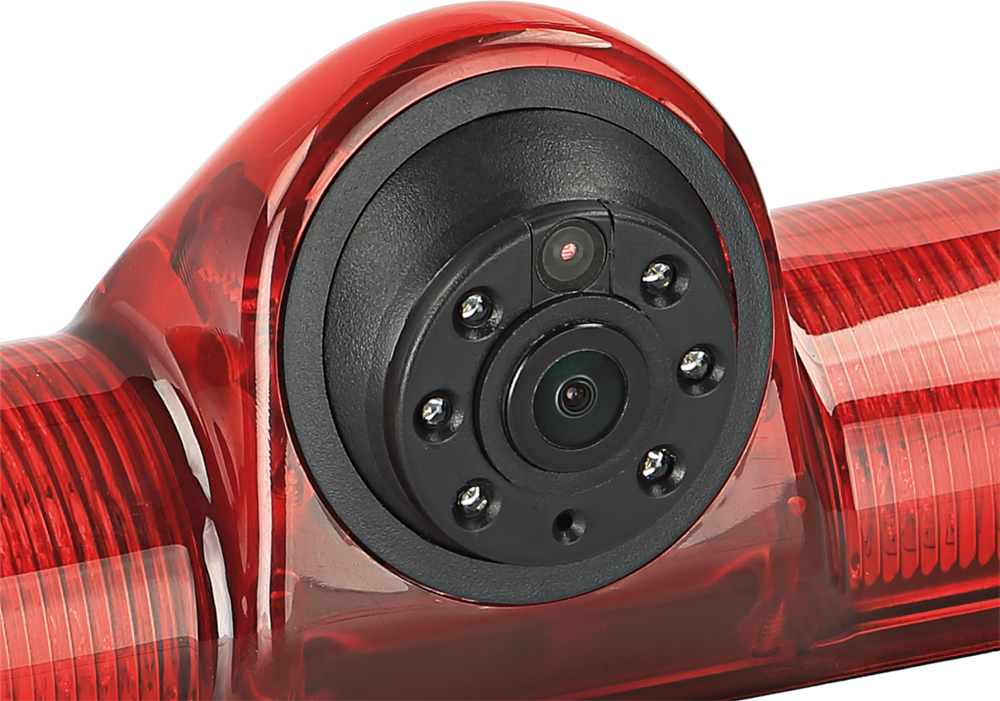

with guiding lines and nightview
20° adjustable view angle

Note:

all acv cameras are suitable for +12V continuous operation

connection:
red +12V switched load-stable (fused)
black ground car body direct

Product characteristic:

Design: plastic
Color: black / red
Extras: guiding lines via jumper, nightview and 20° adjustable view angle
Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 976 x 592
Lens: 1,9mm / F 2.0
Min.Lux: 0 Lux with active nightview
Resolution: 600 TV lines
Lens angle: 160° + 5°
View angle: horizontal 115° vertical 75° + 5°
IP Rating: IP 67
Terminal: 4-pin mini-plug ( male ) 5,2 mm
Power supply: DC 12V + 10%
Current consumption: 150mA during active night vision function
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 80°C

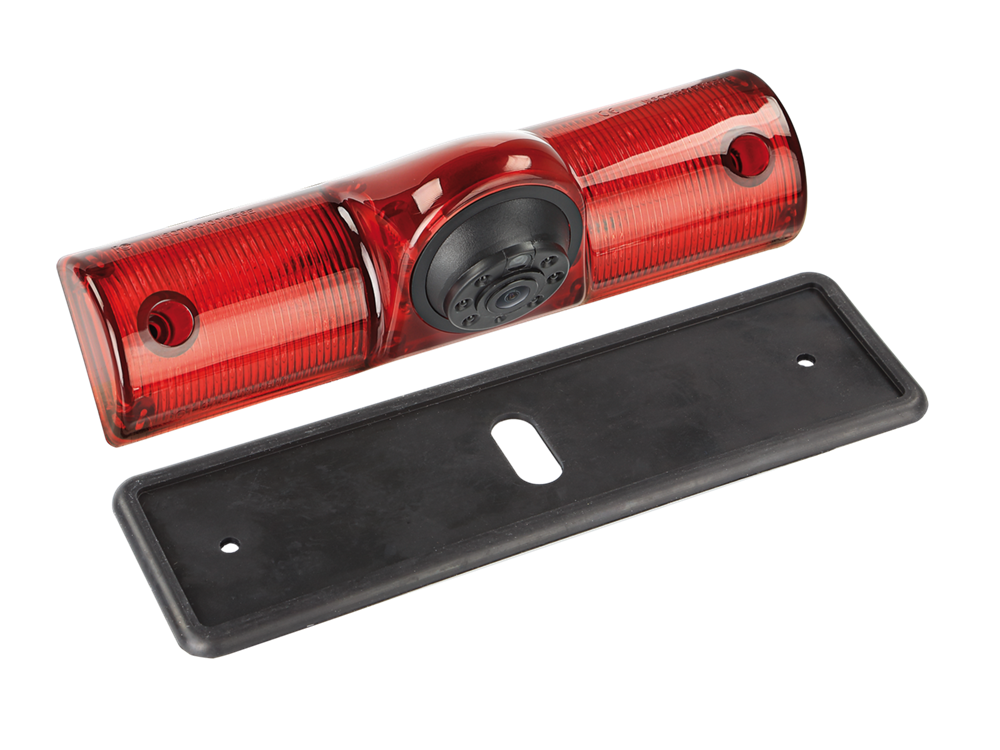

Measurements: cam: 198mm x 48mm / sealing: 212mm x 62mm

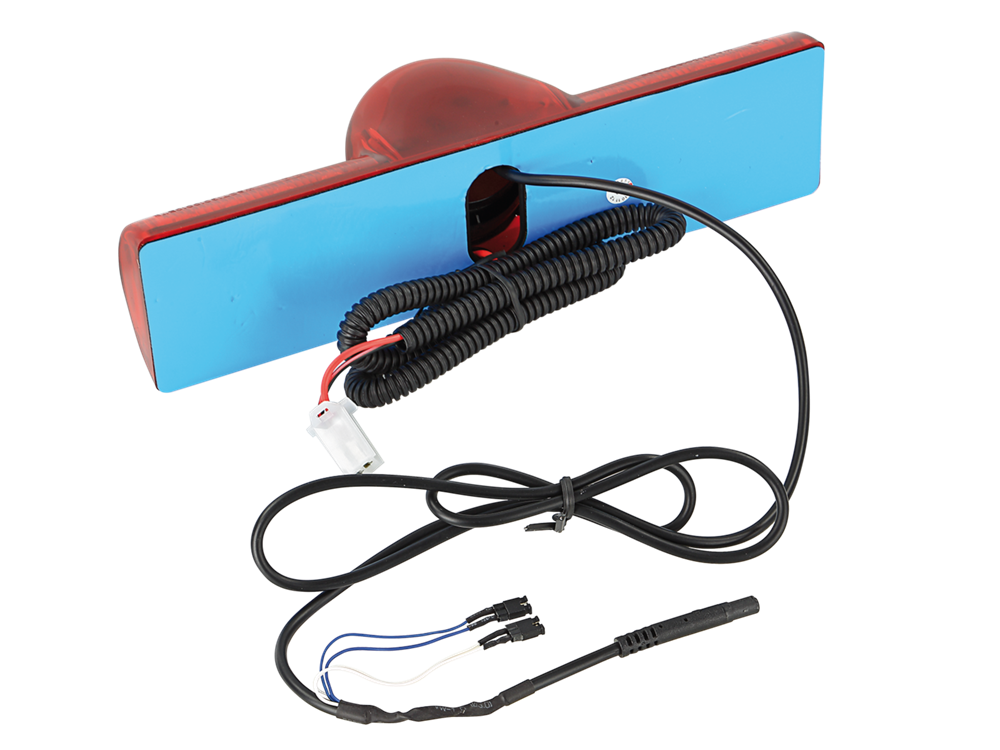

Pigtail at the camera:

1 Meter cable with 4-pin mini plug (male) 5,2 mm incl. 1 jumper

6,5 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
4-pin mini plug (female) 10 mm and plug (male) 5,2 mm

0,2 Meter power wire harness incl. fuse and video connector (RCA)
