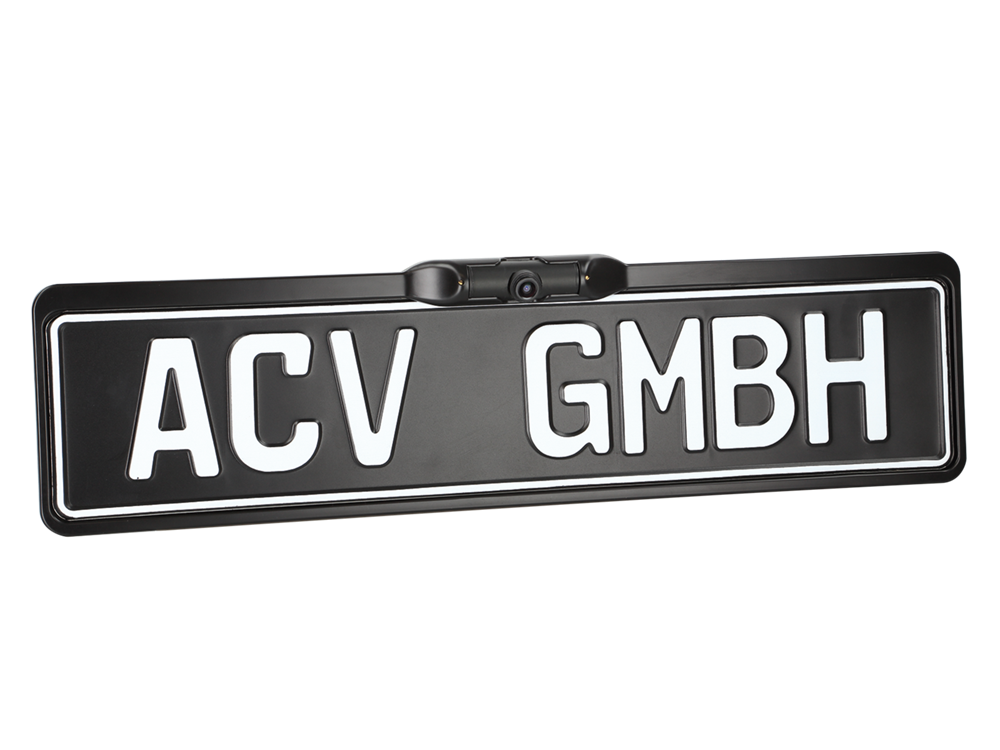

ACV UNIVERSAL KAMERA/ EU-NUMMERPLADE HOLDER TIL SKRUE MONTERING

Rear view camera

License plate holder for EU license plates

with guiding lines function

Note:

all acv cameras are suitable for +12V continuous operation

Not compatible with Austrian license plate
Installation with drill holes into the license plate

connection:
red +12V switched load-stable (fused)
black ground car body direct

Product characteristic:

Design: plastic
Color: black matt
Extras: license plate bracket, guiding lines function via jumper
Image sensor: 1/4" CCD
TV system: NTSC
Effective pixels: 768 x 494
Lens: 1,9mm / F 2.0
Lux: 0,1
Resolution: 600 TV lines
Lens angle: 110°
View angle: horizontal 105° vertical 75° + 5°
IP Rating: IP 68
Terminal: 4-pin mini-plug (male) 5,2 mm
Power supply: 12Volt DC + 10%
Current consumption: 200mA
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C
Measurements: L / W / H - 538mm / 143mm / 28mm

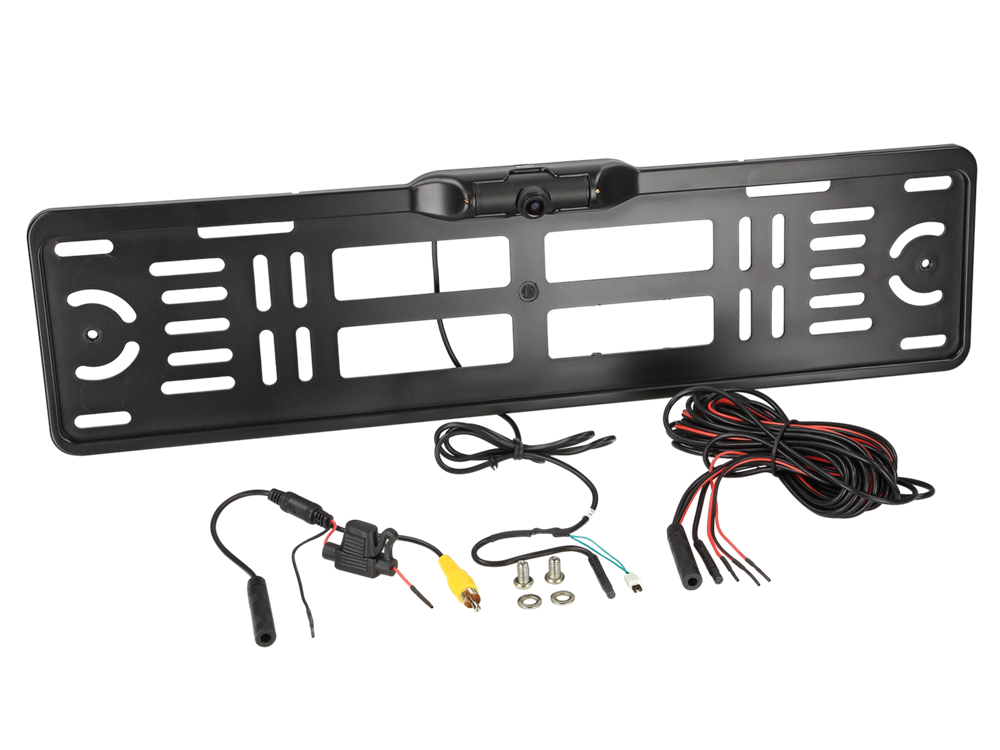

Pigtail at the camera:

1 Meter cable with 4-pin mini plug ( male ) 5.2 mm incl.1 jumper

6.5 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
4-pin mini plug ( female ) 10 mm and plug ( male ) 5.2 mm

0.2 Meter power wire harness incl. fuse and video connector (RCA)
