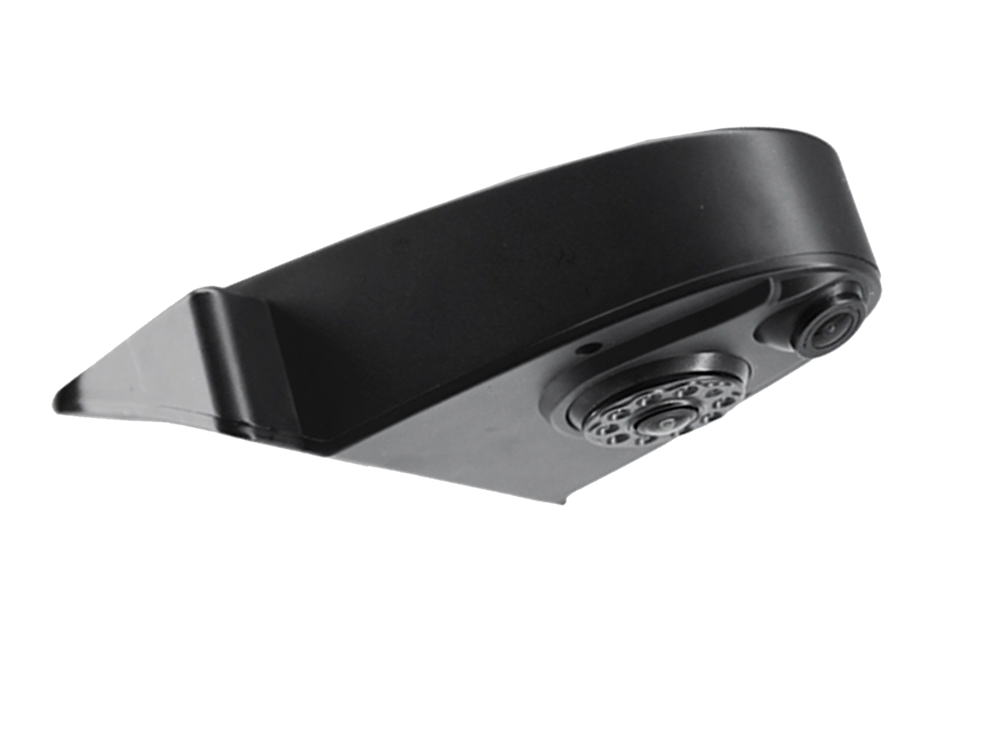

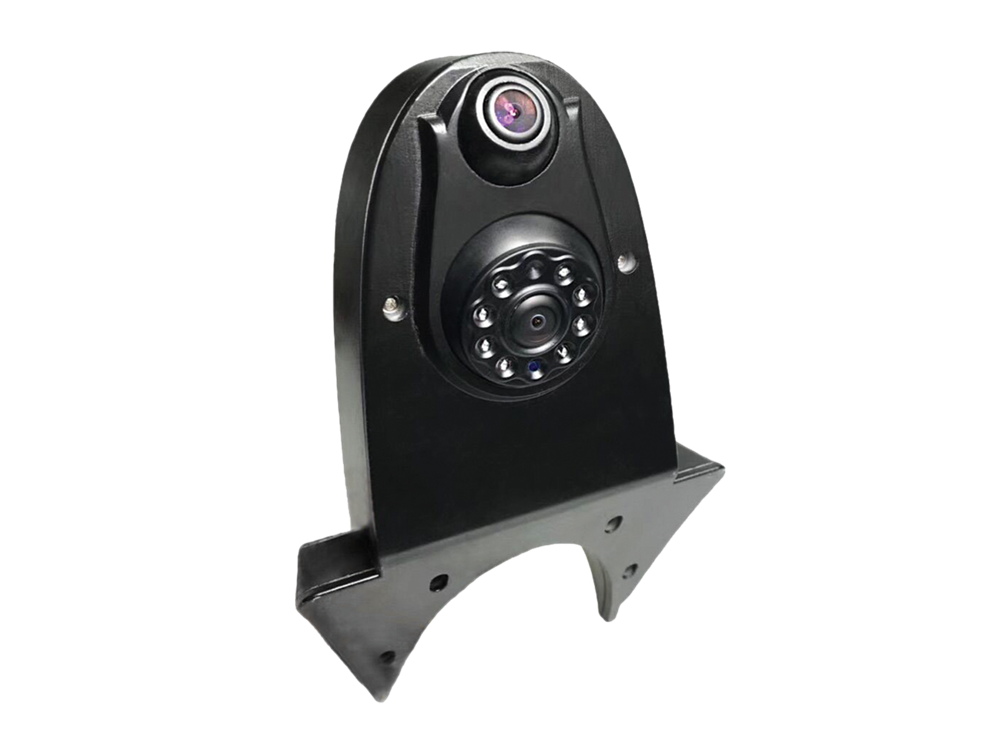

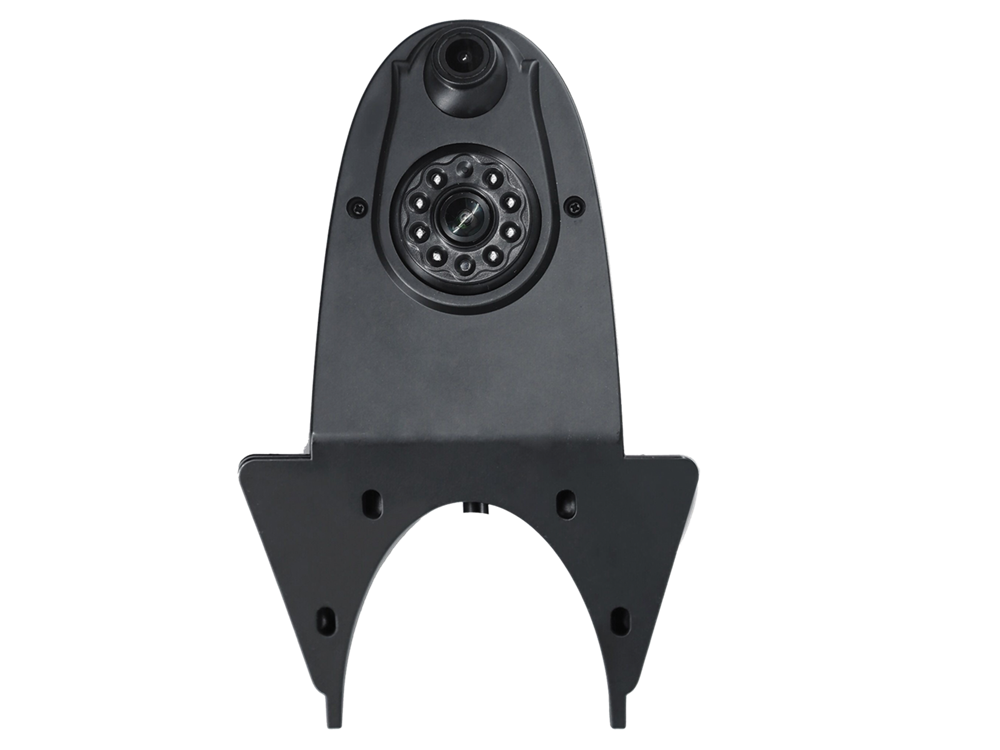

ACV UNIVERSAL DUAL LINSE TAG MONTERING SORT

Rear view camera dual view universal

Design: Transporter
Installation: roof system

2 camera lenses and night view function

Note:

all acv cameras are suitable for +12V continuous operation

connection:
red +12V switched load-stable (fused)
black ground car body direct

Product characteristic:

Design: plastic
Color: black
Extras: 2 camera lenses and night view 20° adjustable view angle
Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 976 x 592
Lens: 1,9mm / F 2.0
Min.Lux: 0 Lux with active night view
Resolution: 600TV lines
View angle camera 1: horicontal 105 + 5° vertikal 75 + 5°
View angle camera 2: horizontal 48 + 5° vertikal 34 + 5°
IP Rating: IP 68
Terminal: 6-pin plug (male)
Power supply: DC 12V + 10%
Current consumption: 200mA during active night view function
Operating temperature: -20°C - 75°C
Storage temperature: -40°C - 85°C
Measurements: L / W / H - mm / mm / mm

Pigtail at the camera:

1 Meter cable with 6-pin plug (male)

System harness:

15 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
6-pin plug

0,2 Meter power wire harness incl. fuse and video connector (RCA)
