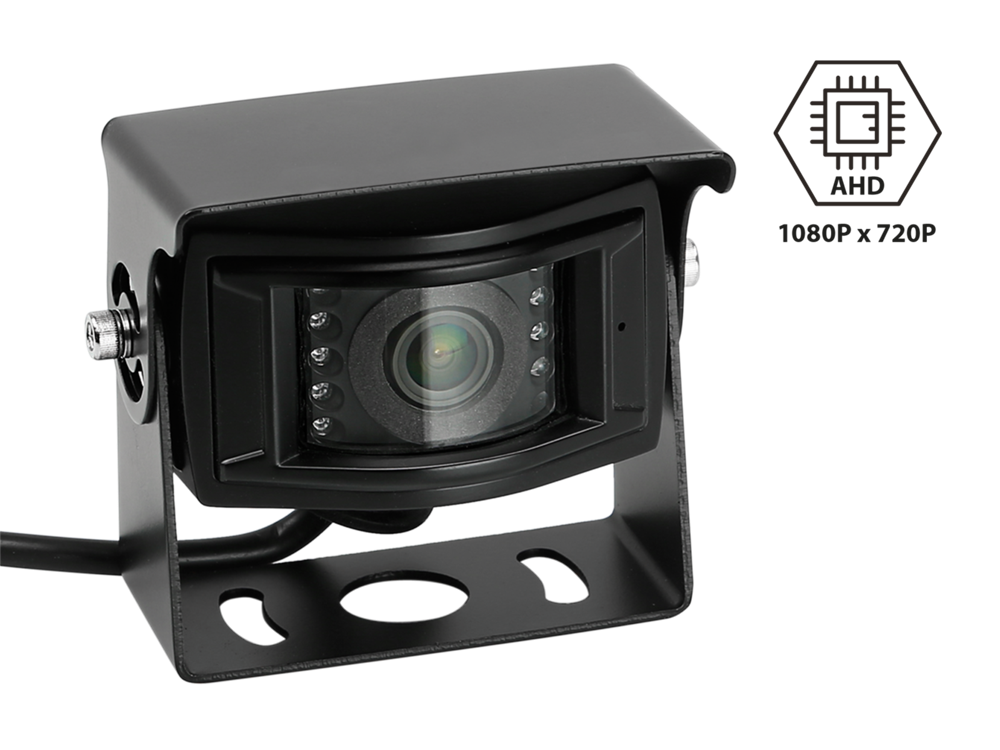

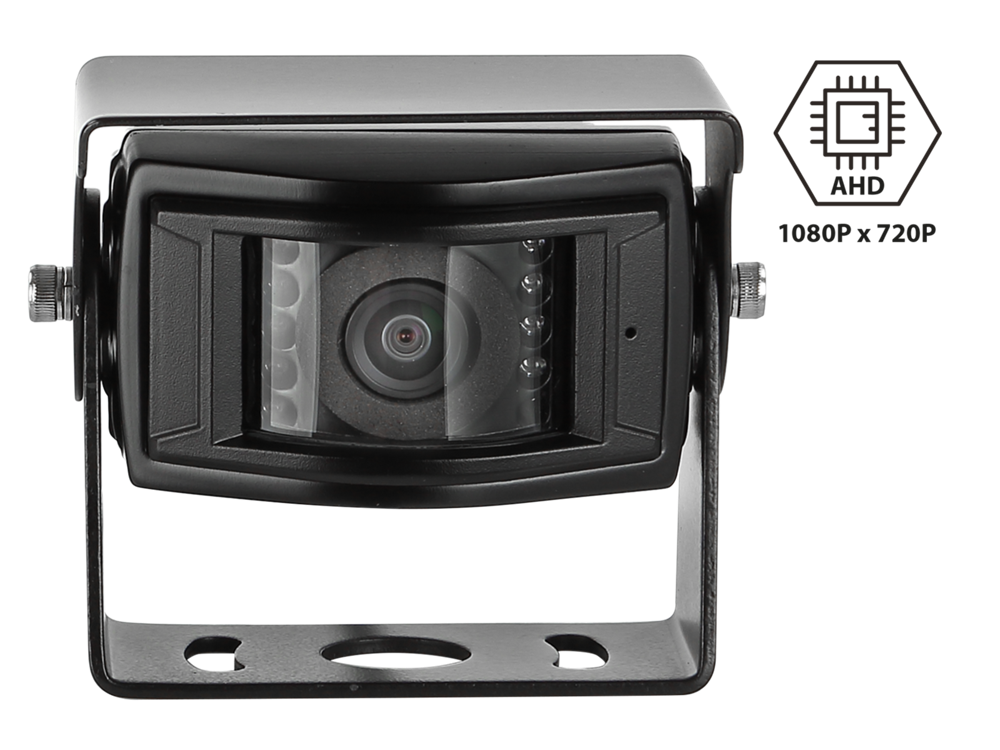

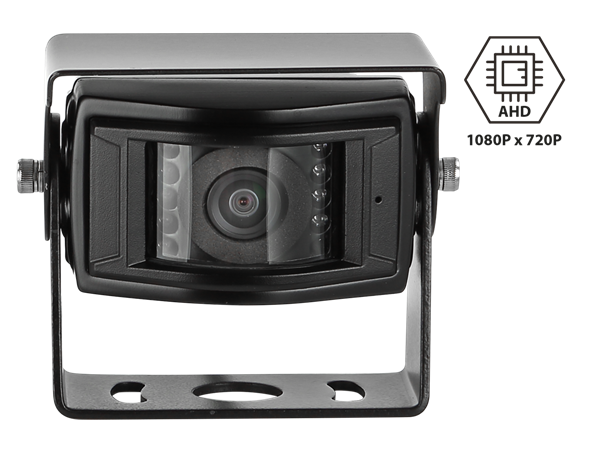

ACV UNIVERSAL (AHD) PÅBYGNINGS KAMERA MED NIGHTVISION

Rear view camera AHD universal ( Analog high definition)

Design: Transporter / Motor Home
Installation: build-up-construction / roof system

with guiding lines / night view function / wide angle 170° diagonal

Note:

acv cameras are suitable for continuous operation

before installation > check the viewing angle and camera alignment at the installation site with a test monitor

camera operating voltage: +12V
camera power supply: +12

connection:
red: +12V switched load-stable fused
black: car body direct ground/GND

RCA(m) yellow: video

jumper:
green: guiding lines activate/deactivate

Product characteristic camera:

Design: metal
Color: black
Extras: guiding lines via jumper / night view function
Image sensor: 1/3" AHD
TV system: NTSC color
Effective pixels: 1080 x 720
Lens: mm / F
Lux: 0 Lux with activ night view
Resolution: 600 TV lines
Lens angle: diagonal 170°
View angle: horizontal 105° vertical 60° +5°
Video Output: 1Vp-p 75Ohm
S/N Ratio: 48db>
IP Rating: IP68
Terminal: 8 Pin system connector(m) Ø7mm
Operating voltage: +12V DC
Power supply: +12V DC
Current consumption: 200mA with activ night view
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C
Measurements with brackets: L / W / H - 76 mm / 60,39 mm / 73,8 mm

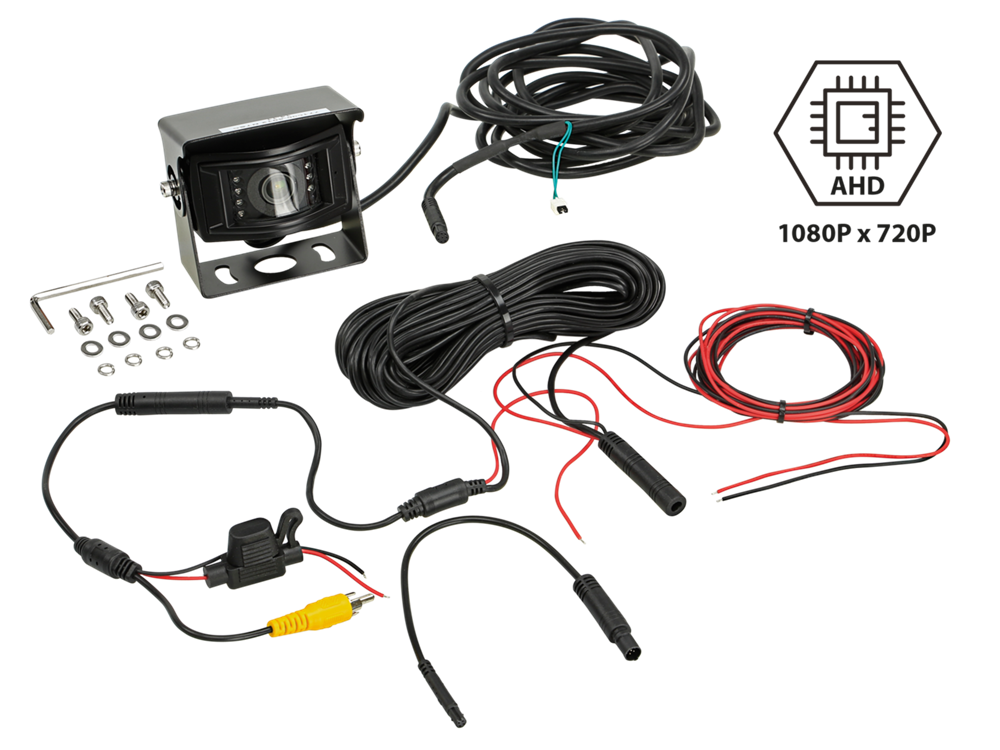

Pigtail at the camera 3m +/-:
8 Pin system connector(m) Ø7mm
1 jumper

Adapter harness 20cm +/-:
8 Pin system connector(f) Ø10mm > 4 Pin acv-system connector(m)

Extension cable 15m +/-:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
power wire red 3m +/- inlay cable: connection to camera / connection reverse light to monitor
ground/GND wire black 3m +/- inlay cable: connectrion car body direct/GND to camera / car body direct/GND to monitor

Connector cable 20cm +/-:
4 Pin acv-system connector(f) Ø10mm
red: power supply
black: GND
RCA(m) yellow: video
