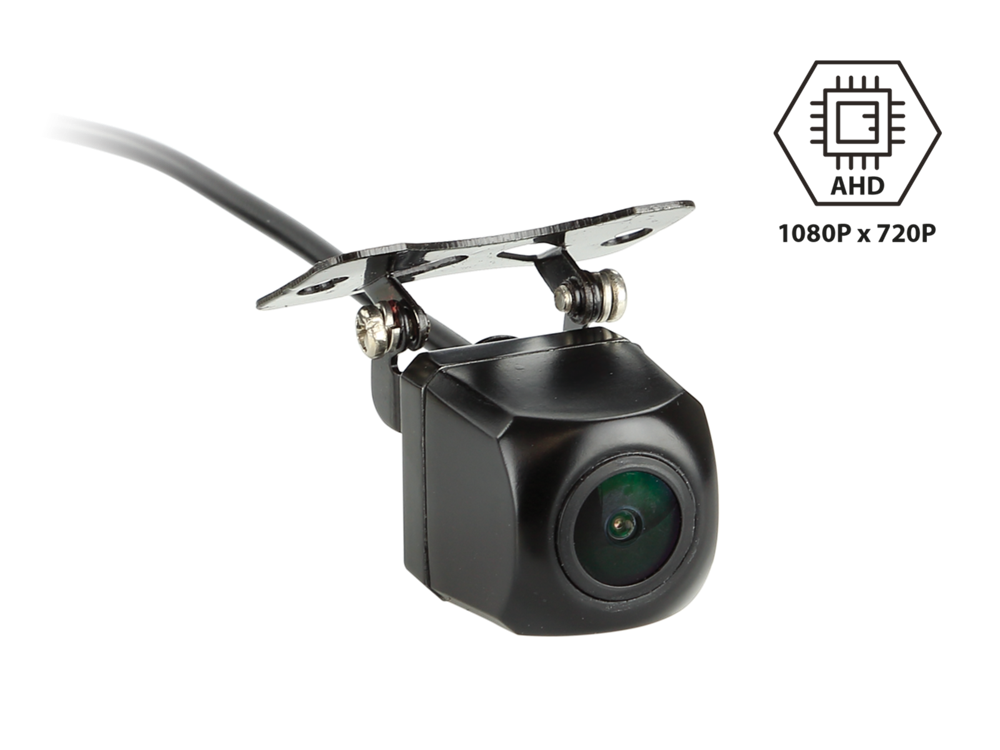

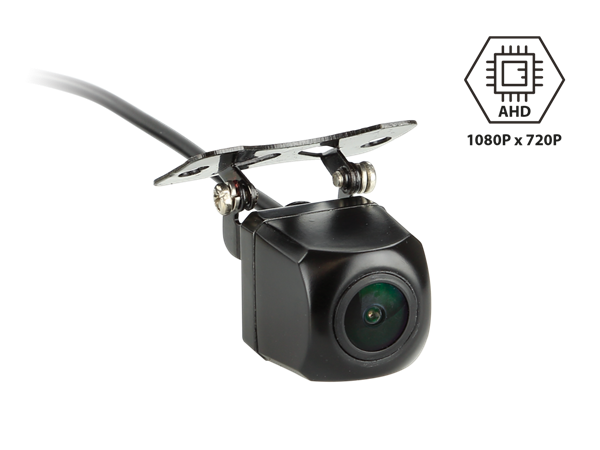

ACV UNIVERSAL (AHD) PÅ / UNDERBYGNINGS KAMERA

Rear view camera AHD universal ( Analog high definition)

Design: squared
Installation: sub-construction / build-up-construction

with guiding lines / mirror function / IP69K / view angle diagonal 210°

Note:

acv cameras are suitable for continuous operation

before installation > check the viewing angle and camera alignment at the installation site with a test monitor

camera operating voltage: +3V
camera power supply: +12V / +24V

connection without voltage converter +3V in scope of delivery damages the camera

connection:
red: +12V / +24V switched load-stable fused
black: car body direct groud/GND

RCA(m) yellow: video

jumper:
green: guiding lines activate/deactivate
white: mirror function activate/deactivate

Product characteristic camera:

Design: plastic / metal
Color: black
Extras: guiding lines / mirror function via jumper / IP69K / view angle diagonal 210°
Image sensor: 1/2,8 AHD
TV system: NTSC
Effective pixels: 1080 x 720
Lens: mm / F
Lux: 0,03
Resolution: TV lines
Lens angle: diagonal 210° + 5°
View angle: horizontal 170° vertical 120° + 5°
IP Rating: IP69K
Terminal: 4 Pin acv-system connector(m) Ø5,2 mm
Operating voltage: +3V DC
Power supply: +12V / +24V DC > with voltage converter
Current consumption: 100mA
Operating temperature: -20°C - 70°C
Storage temperature: -40°C - 85°C
Measurements: L / W / H - 28.3 mm / 23.4 mm / 23.4 mm

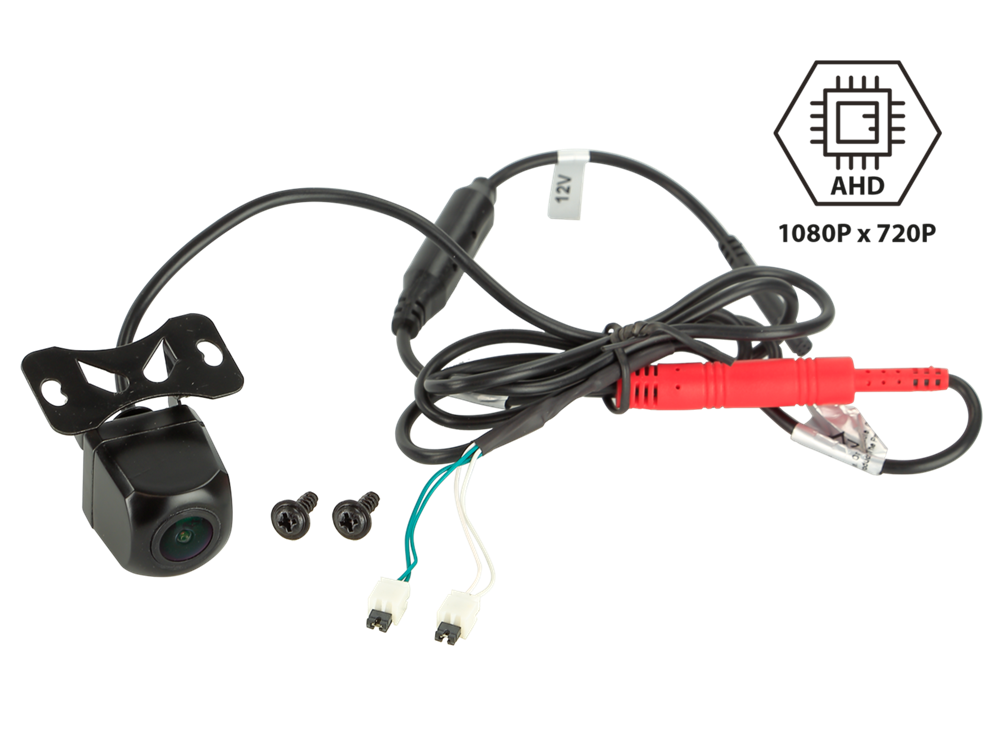

Pigtail at the camera 1m +/-:
4 Pin acv-system connector(m) Ø5,2mm
2 jumper

Voltage converter +3V:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm

Extension cable 6,5m +/-:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
power wire red 3m +/- inlay cable: connection to camera / connection reverse light to monitor
ground/GND wire black 3m +/- inlay cable: connectrion car body direct/GND to camera / car body direct/GND to monitor

Connector cable 20cm +/-:
4 Pin acv-system connector(f) Ø10mm
red: power supply
black: GND
RCA(m) yellow: video
